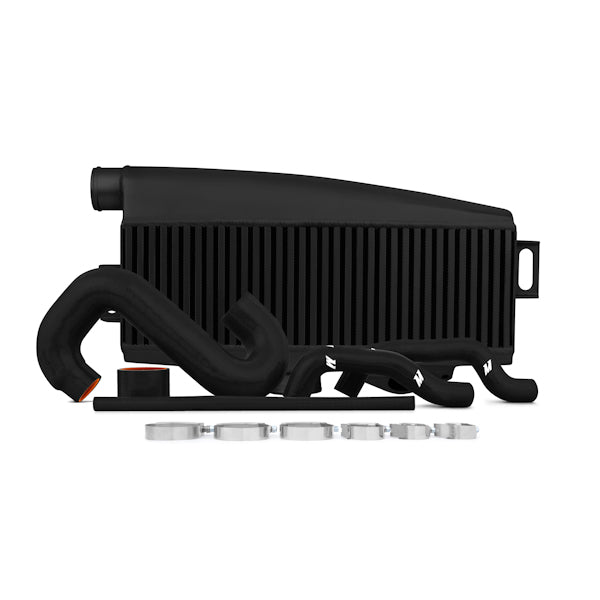

Mishimoto Subaru WRX/STI Performance Top-Mount Intercooler Kit, 2002-2007, Black MMTMIC-WRX-01BKBK

An intercooler upgrade is a great way to equip your flat-four with a cool charge of air! A cool, dense charge of air can allow for more aggressive tuning and increased power. The Mishimoto Subaru WRX/STI Top-Mount Intercooler Kit provides a unique option for upgrading your charge air system. This kit utilizes a single entry inlet compared to the stock Y-pipe setup. This unique tank design provides maximum airflow and superior air dispersion through the core, a process which results in optimal AIT reduction. This intercooler uses a high efficiency bar-and-plate core which provides increased volume and improved heat transfer. The kit is completely bolt-on, requiring zero modifications to your vehicle. The Mishimoto intercooler kit includes silicone bypass hoses for both the WRX and STI, a silicone crankcase ventilation hose, a bypass valve gasket, a silicone throttle body hose, and all the T-bolt clamps and hardware necessary for installation. This intercooler kit has endured rigorous testing on both stock and modified vehicles and has proven to increase power and reduce air intake temperatures. On our 305 hp test vehicle running 20-22 psi of boost, this intercooler provided a 14 hp increase and a 30 degree drop in AITs compared to the stock STI intercooler-- for more testing details, check out the engineering report! Thanks to a precision engineered and tested core construction, this intercooler will support vehicles with up to 350 hp. This kit is available with either a Stealth Black or Sleek Silver cooler and includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• Direct fit for the 2002–2007 Subaru WRX/STI
• High-efficiency bar-and-plate core provides increased volume, optimal heat transfer, and significantly reduces AITs
• Durable and precision engineered cast aluminum end tanks provide smooth flow
• Includes silicone bypass hose, silicone crankcase ventilation hose, bypass valve gasket, T-bolt clamps, and all hardware for installation
• Unique single inlet design provides superior airflow and proper dispersion of air through the core
• Gained 14 hp and dropped intake temperatures 30°F when installed in 305 hp vehicle with 20–22 psi of boost
• Will support vehicles with up to 350 hp
• Available in Sleek Silver or Stealth Black finish
• Mishimoto Lifetime Warranty
• CARB EO #: D-759

Attributes:

• GTIN: 00748354010992
• Brand Name: Mishimoto
• SellingPoint15: N/A
• TechSpec Applications: Saab 9-2X H4 (2.0L) 2005--Saab 9-2X H4 (2.5L) 2006--Subaru WRX H4 (2.0) 2002-2005--Subaru WRX H4 (2.5) 2006-2007--Subaru WRX STI H4 (2.5) 2004-2007
• TechSpec Engine Codes: EJ20--EJ25
• TechSpec Chassis Codes: GD6--GG6
• TechSpec Maximum Recommended Boost Pressure (PSI): 22
• TechSpec Maximum Recommended Horsepower: 305
• TechSpec Overall Length (in): 22.25
• TechSpec Overall Height (in): 11.25
• TechSpec Overall Width (in): 3.625
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): 3.5
• TechSpec Core Length (in): 19
• TechSpec Core Height (in): 6
• TechSpec Inlet (in): 2.5
• TechSpec Outlet (in): 2.75
• TechSpec Weight (lbs): 17.25
• TechSpec Note: This kit is rated for approximately 350 whp, or 25PSI of turbo boost. Exceeding these horsepower or pressure limits may require a larger front-mount intercooler. This intercooler kit will not fit RHD vehicles.
• TechSpec Includes: (1) Bar-and-Plate Intercooler--(5) Silicone Hoses and Couplers--(1) High-Temp Silicone hose--(2) 3-in T-bolt Clamps--(1) 2.75-in T-bolt Clamp--(1) 2.25-in T-bolt Clamp--(1) Bypass Valve Gasket--(1) Black Nylon Hose Fitting, 3/4-in I.D.--(1) Black Nylon Tee Hose Fitting, 3/4-in I.D.--(1) WRX specific BPV hose--(1) STI specific BPV hose--(1) Intercooler to throttle body coupler--(1) PCV hose
• TechSpec Installation Notes: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for the 2002-2007 Subaru WRX/STI
• SellingPoint02: High efficiency bar-and-plate core provides increased volume, optimal heat transfer, and significantly reduces AITs
• SellingPoint03: Durable and precision engineered cast aluminum end tanks provide smooth flow
• SellingPoint04: Includes silicone bypass hose, silicone crankcase ventilation hose, bypass valve gasket, T-bolt clamps, and all hardware for installation
• SellingPoint05: Unique single inlet design provides superior airflow and proper dispersion of air through the core
• SellingPoint06: Gained 14 hp and dropped intake temperatures 30 F when installed in 305 hp vehicle with 20-22 psi of boost
• SellingPoint07: Will support vehicles with up to 350 hp
• SellingPoint08: Available in Sleek Silver or Stealth Black finish
• SellingPoint09: Mishimoto Lifetime Warranty
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 31.5 x 7.5 x 23 inches
• Weight: 25 lb
