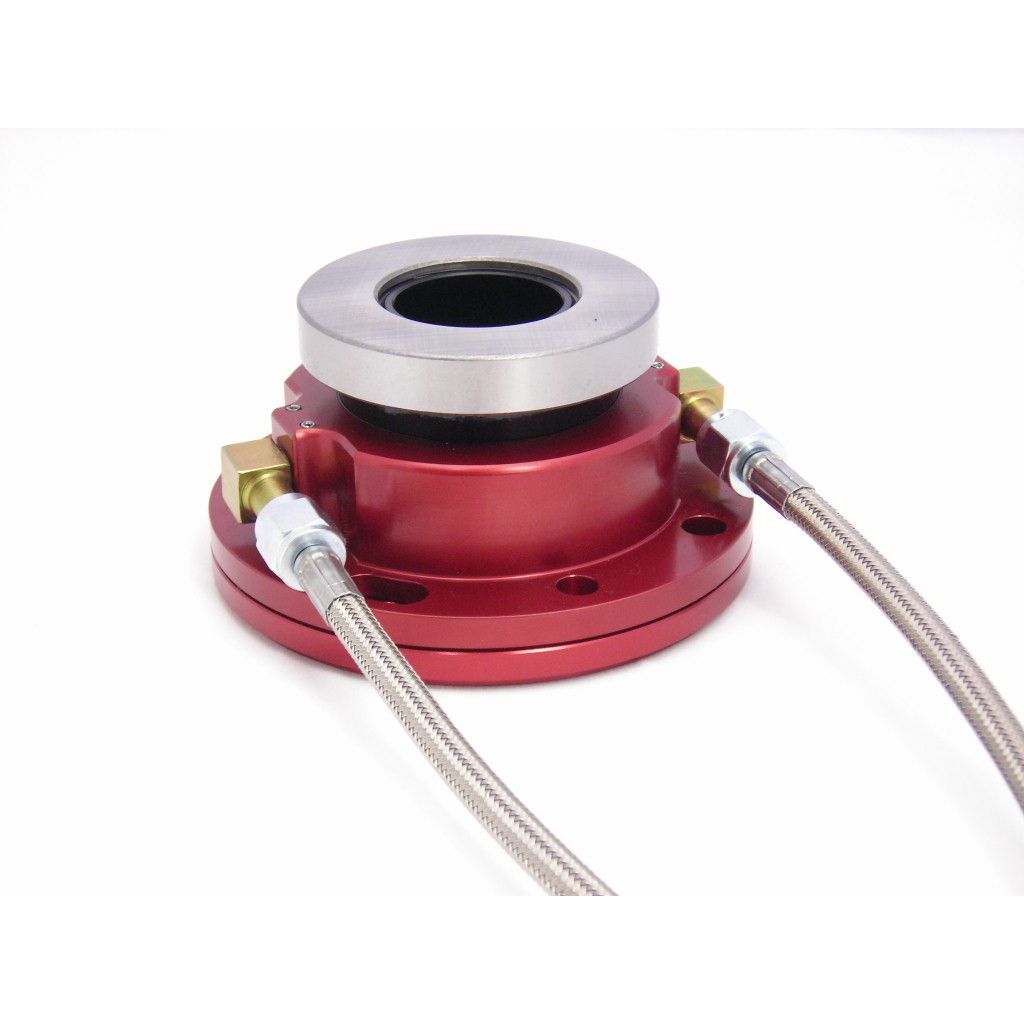

McLeod SUPERSEDED TO 14-302QD 1373-1

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

Attributes:

• GTIN: 00887753016065
• Brand Name: McLeod
• Make: GM
• Application: 1998-2002 LS1 T-56
• "A" Dimension: 2.31In. to 2.50In.
• Material: Aluminum
• Finish: Red Anodize
• Hydraulic Line Size: AN-4
• Hydraulic Supply Fitting: GM Male Quick Dissconect
• NOTE:: Will not work with counter weighted diaphragm pressure plates. For more info please call McLeod Tech at 714-630-2764
• NOTE 2:: This application will only work with an In.AIn. Dimension of 2.31In. to 2.50In.. If your application is outside of this range please call McLeod Tech at 714-630-2764

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Superseded

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 6 inches
• Weight: 5 lb
