T-Bolt Stainless Steel Hose Clamp
T-Bolt Stainless Steel Hose Clamp
BOOST Products USA
Part #
SC-TB-3740
UPC #
4250815845372
Black Friday Sale On All November Long! No Code Needed!
Couldn't load pickup availability
Product Description
Product Description

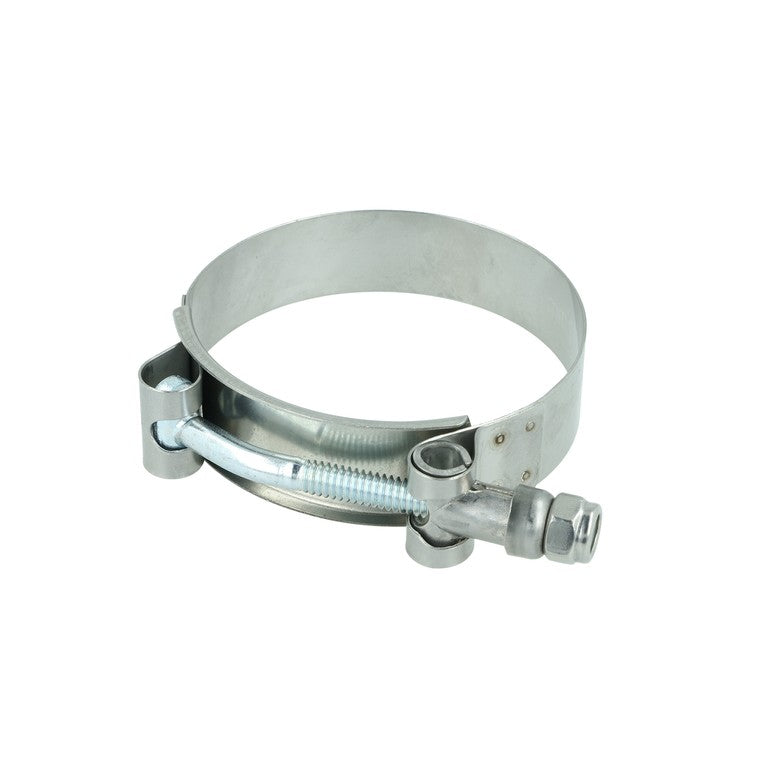

Stainless Steel T-Bolt Hose Clamp for Intercooler Piping and Silicone Hoses
When a hose has to stay put under boost, a T-bolt clamp is the right tool. The BOOST Products T-bolt clamp uses an SS304 stainless steel band and a T-bolt that delivers high holding force. A self-locking nut keeps the bolt from loosening. It is well suited for charge air piping and silicone hoses.
Key Features
- Clamp type: T-bolt clamp
- Band material: SS304 stainless steel
- Band width: 20mm
- T-bolt with self-locking nut
- Bolt and nut made of galvanized steel
- 12 clamping ranges from 1.450" to 4.325" (37 to 110mm)
- Sold individually

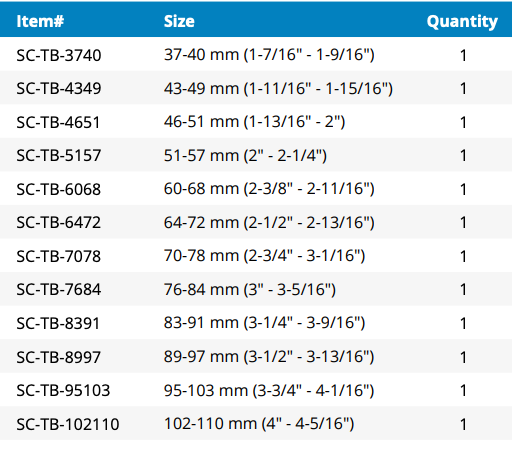

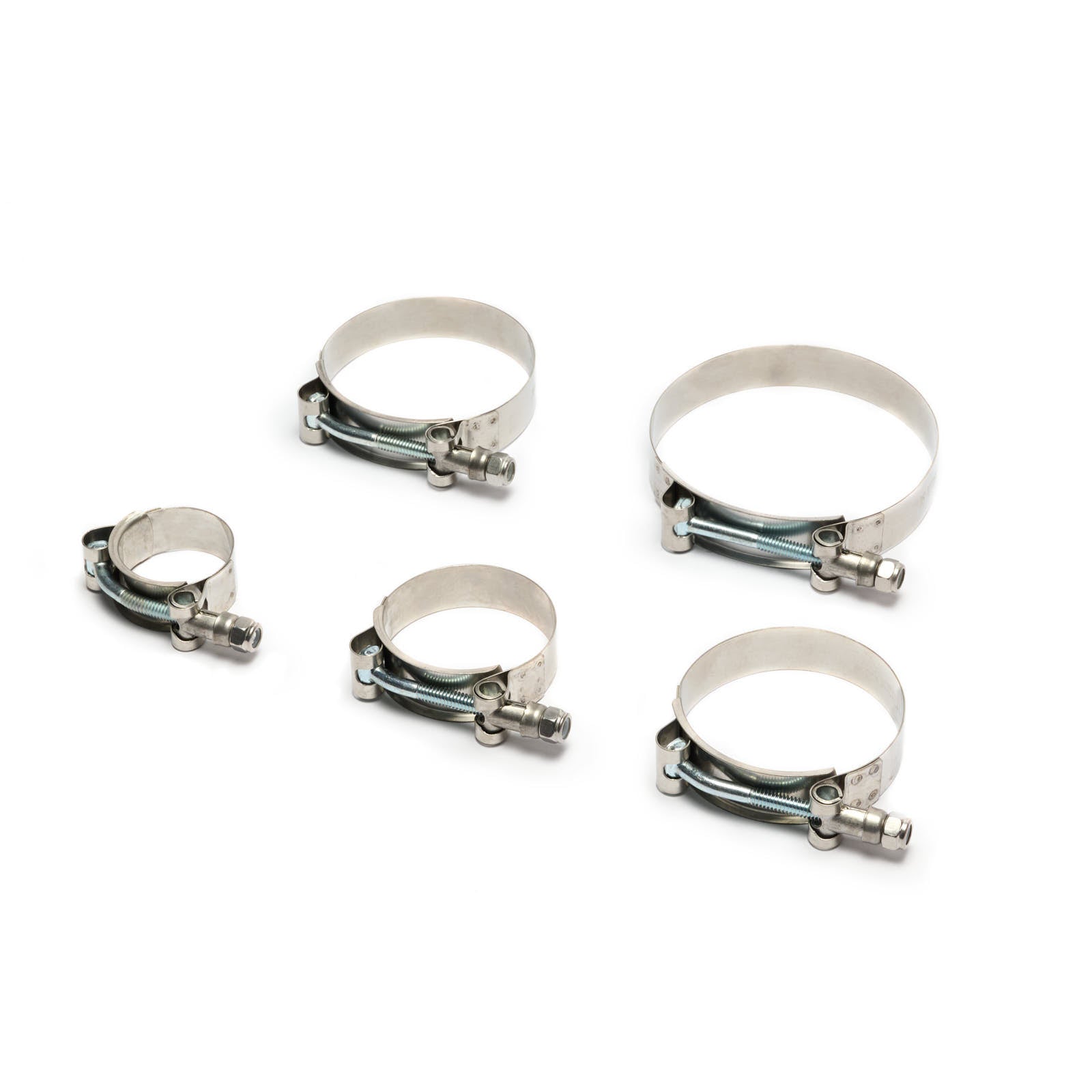

Available Sizes
| Clamping range | Part No. |
|---|---|
| 1.450" - 1.575" (37-40mm) | SC-TB-3740 |
| 1.700" - 1.925" (43-49mm) | SC-TB-4349 |
| 1.800" - 2.000" (46-51mm) | SC-TB-4651 |
| 2.000" - 2.250" (51-57mm) | SC-TB-5157 |
| 2.360" - 2.675" (60-68mm) | SC-TB-6068 |
| 2.525" - 2.825" (64-72mm) | SC-TB-6472 |
| 2.750" - 3.075" (70-78mm) | SC-TB-7078 |
| 3.000" - 3.300" (76-84mm) | SC-TB-7684 |
| 3.275" - 3.575" (83-91mm) | SC-TB-8391 |
| 3.500" - 3.825" (89-97mm) | SC-TB-8997 |
| 3.750" - 4.050" (95-103mm) | SC-TB-95103 |
| 3.925" - 4.325" (102-110mm) | SC-TB-102110 |
How to Choose the Right Clamp Size
The clamp has to fit the outer diameter of the hose, not the pipe. Silicone hoses are sized by inner diameter, so add the wall thickness twice. With BOOST Products silicone hoses that means adding 8 to 10mm to the hose ID. Pick the clamp whose range includes that number.
Frequently Asked Questions
T-bolt clamp or worm gear clamp?
Worm gear clamps are fine for small, low pressure lines. On boosted connections they can cut into the silicone. A T-bolt clamp spreads the force over the full circumference, which is why it is preferred for intercooler and charge pipe joints.
Why are the bolt and nut not stainless steel?
The band is SS304 stainless steel. The bolt and nut are galvanized steel on purpose, because the clamp needs them to work properly. Stainless threads running against each other under high torque tend to gall and seize. A plated steel fastener keeps the clamp easy to tighten and release.
How many clamps do I need?
Clamps are sold individually. A coupler or elbow that joins two pipes needs two clamps, one per pipe end.
