T-Bolt Stainless Steel Hose Clamp With Spring
T-Bolt Stainless Steel Hose Clamp With Spring
BOOST Products USA
Part #
SC-TS-6370
UPC #
4250815845303
Black Friday Sale On All November Long! No Code Needed!
Regular price
$7.48 USD
Regular price
$7.48 USD
Sale price
$7.48 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Product Description
Product Description

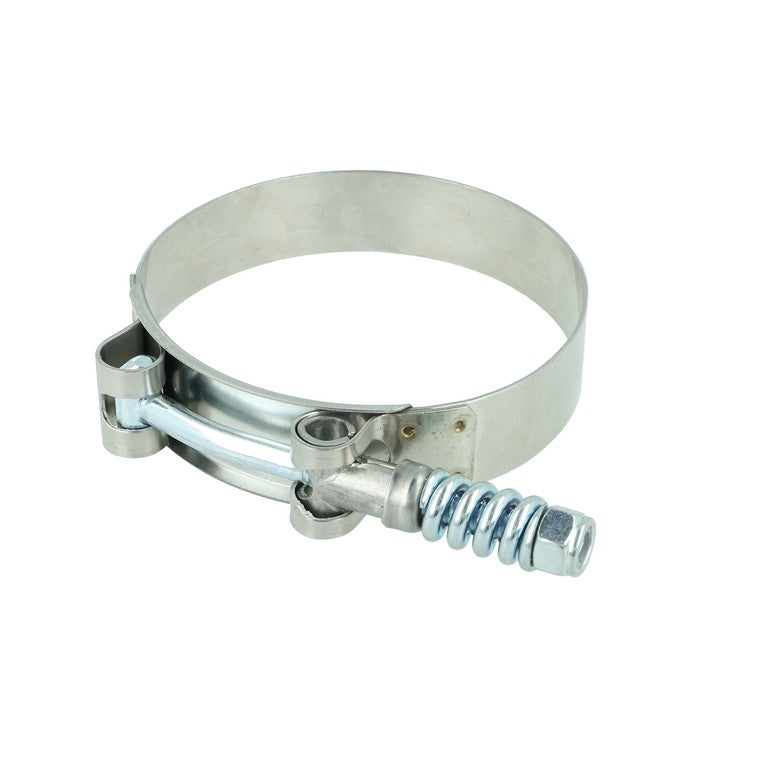

T-Bolt Stainless Steel Hose Clamp with Spring
Spring loaded T-bolt hose clamp made of stainless steel. Thanks to the spring, a constant clamping and holding force is always guaranteed. A self-locking nut keeps the bolt from loosening.
Key Features
- Clamp type: T-bolt clamp with spring
- Material: SS304 Stainless steel
- T-bolt with spring and self-locking nut

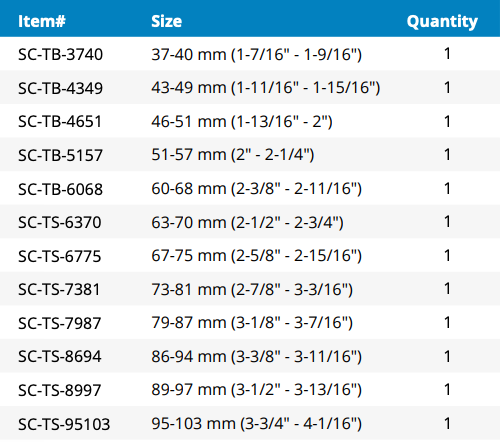

Available Sizes
| Clamping range | Part No. |
|---|---|
| 2.500" - 2.750" (63-70mm) | SC-TS-6370 |
| 2.650" - 3.000" (67-75mm) | SC-TS-6775 |
| 2.875" - 3.200" (73-81mm) | SC-TS-7381 |
| 3.100" - 3.425" (79-87mm) | SC-TS-7987 |
| 3.375" - 3.700" (86-94mm) | SC-TS-8694 |
| 3.500" - 3.825" (89-97mm) | SC-TS-8997 |
| 3.750" - 4.050" (95-103mm) | SC-TS-95103 |
Frequently Asked Questions
What does the spring do?
It keeps the clamping and holding force constant.
How do I choose the right clamp size?
The clamp has to fit the outer diameter of the hose, not the pipe. Silicone hoses are sized by inner diameter, so add the wall thickness twice. With BOOST Products silicone hoses that means adding 8 to 10mm to the hose ID.
