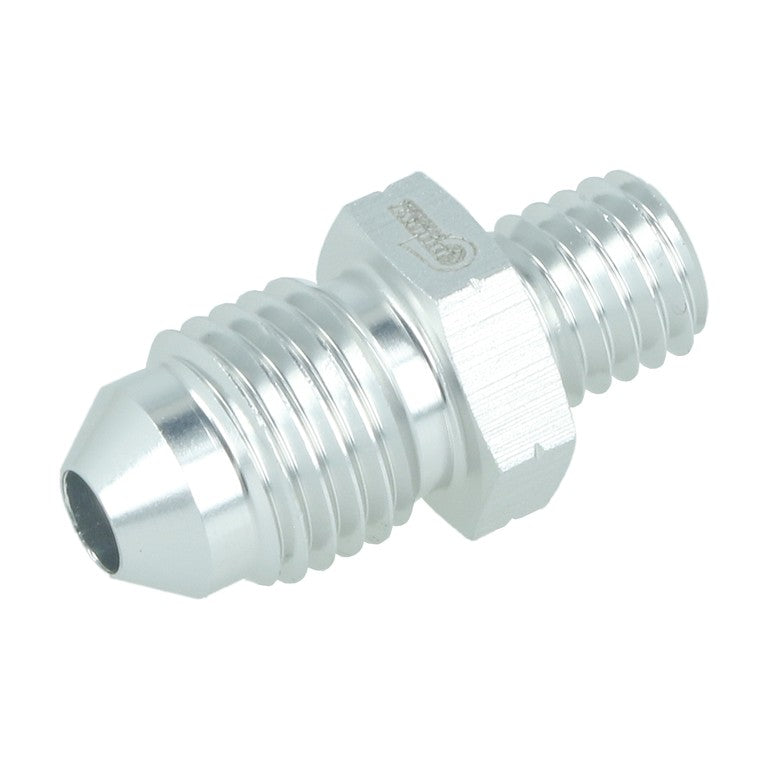

Thread Adapter -AN Male to Metric Male
Thread Adapter -AN Male to Metric Male
BOOST Products USA
Part #
GA-D10M16-S
UPC #
4250815850338
Black Friday Sale On All November Long! No Code Needed!
Couldn't load pickup availability
Product Description
Product Description

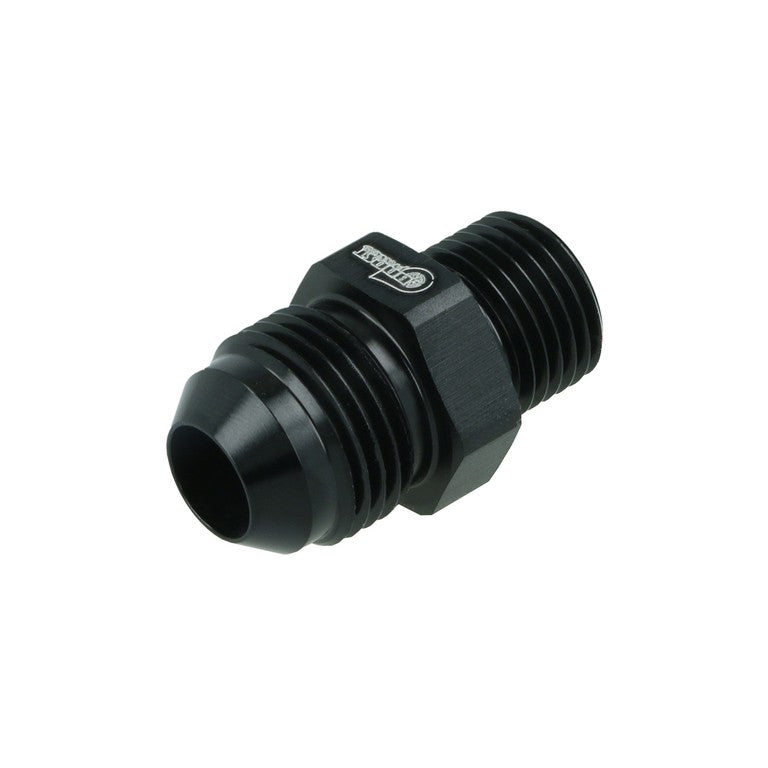

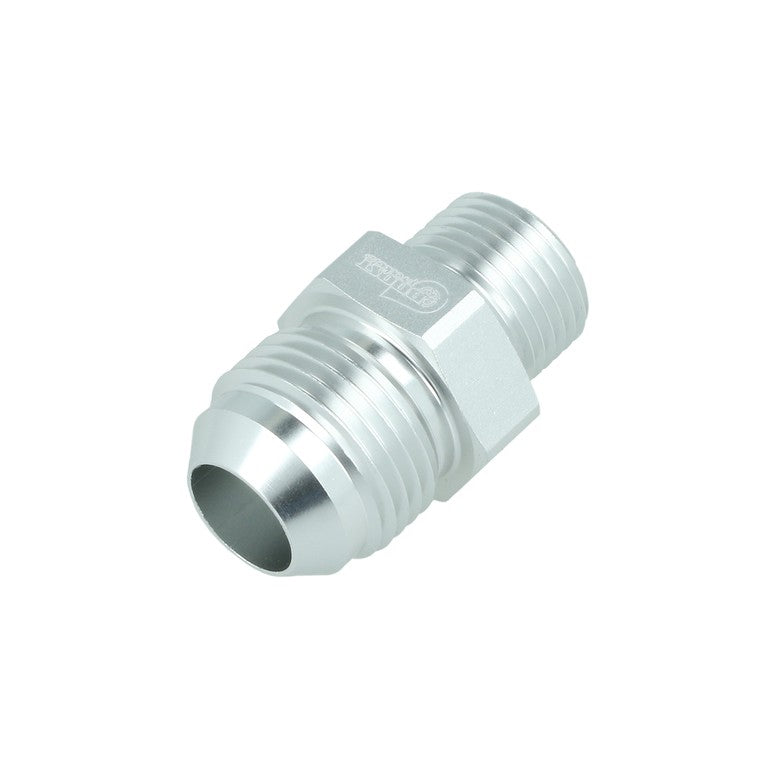

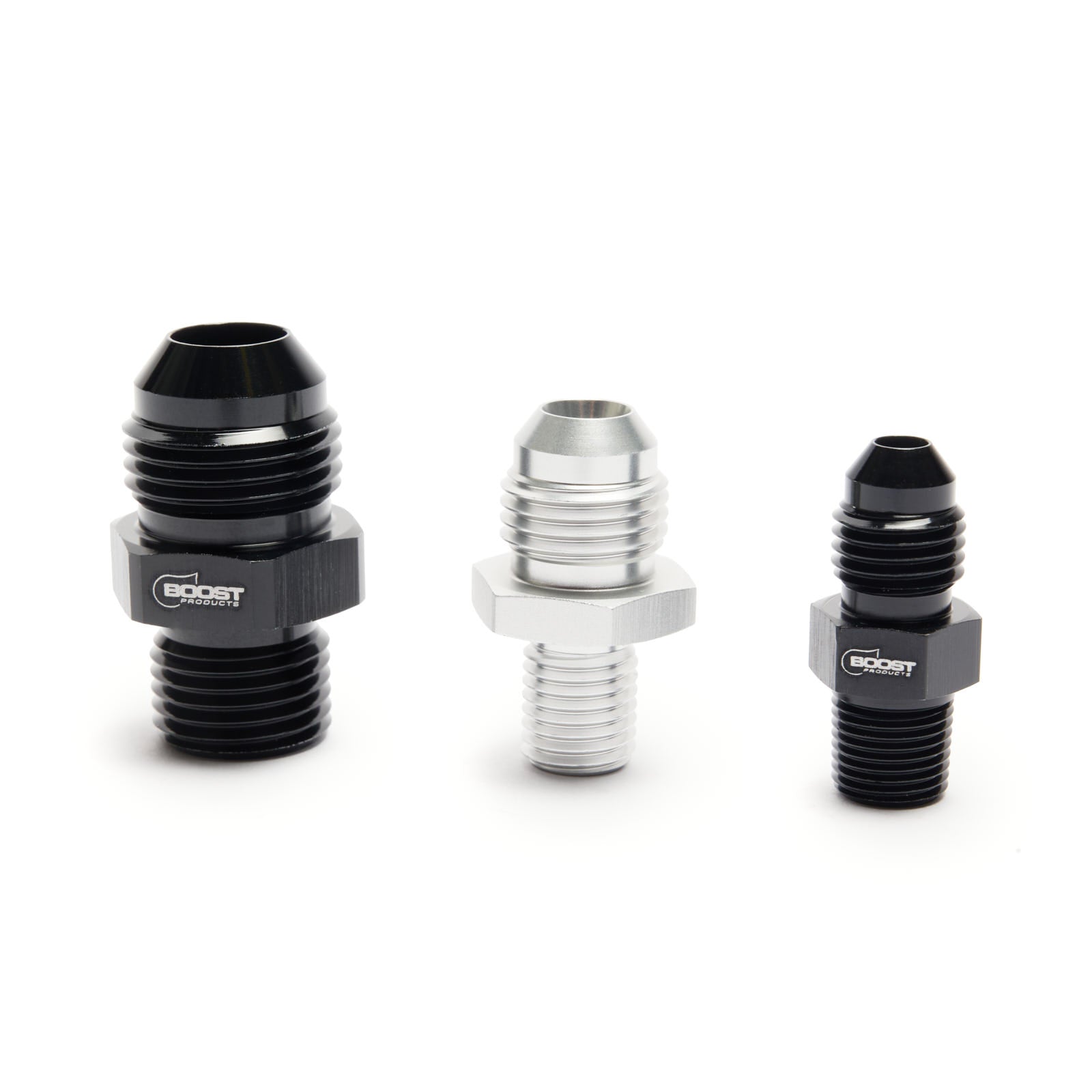

Thread Adapter -AN Male to Metric Male
The Thread Adapter -AN Male to Metric Male is CNC machined from 6061-T6 aluminum and conforms to AN and JIC specifications. Like all BOOST Products fittings and adapters it is suitable for oil, water and fuel lines and resistant to E85 and methanol.
Key Features
- CNC machined from 6061-T6 aluminum
- Conforms to AN and JIC specifications
- Suitable for fuel, E85, methanol, oil, water and pneumatic lines
- Finish: satin black or satin silver

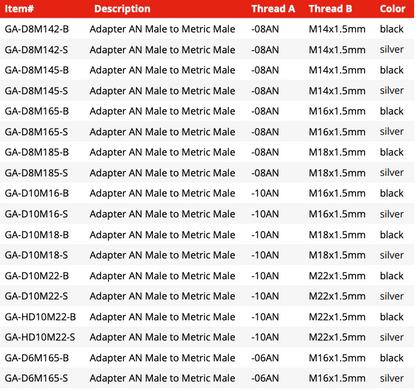

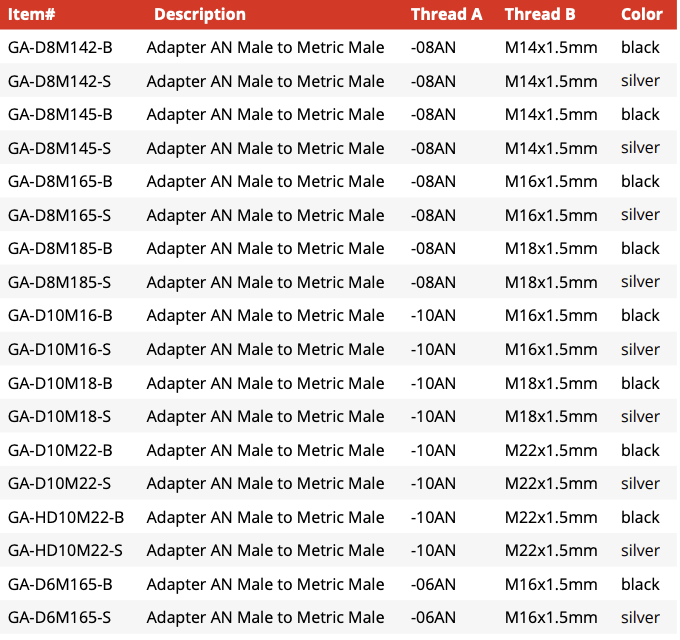

Available Sizes
| Thread A | Thread B | Part No. satin black | Part No. satin silver |
|---|---|---|---|

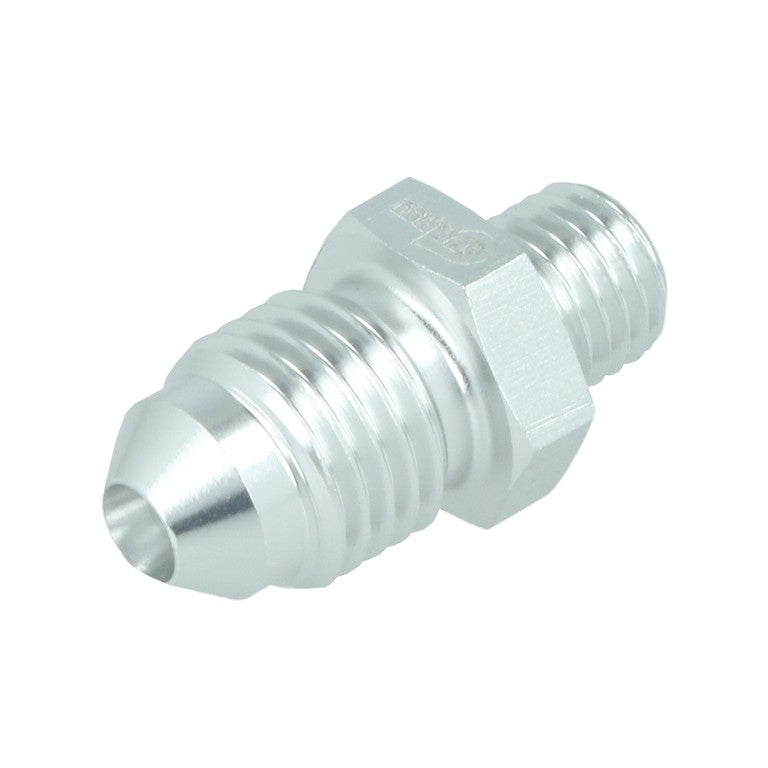

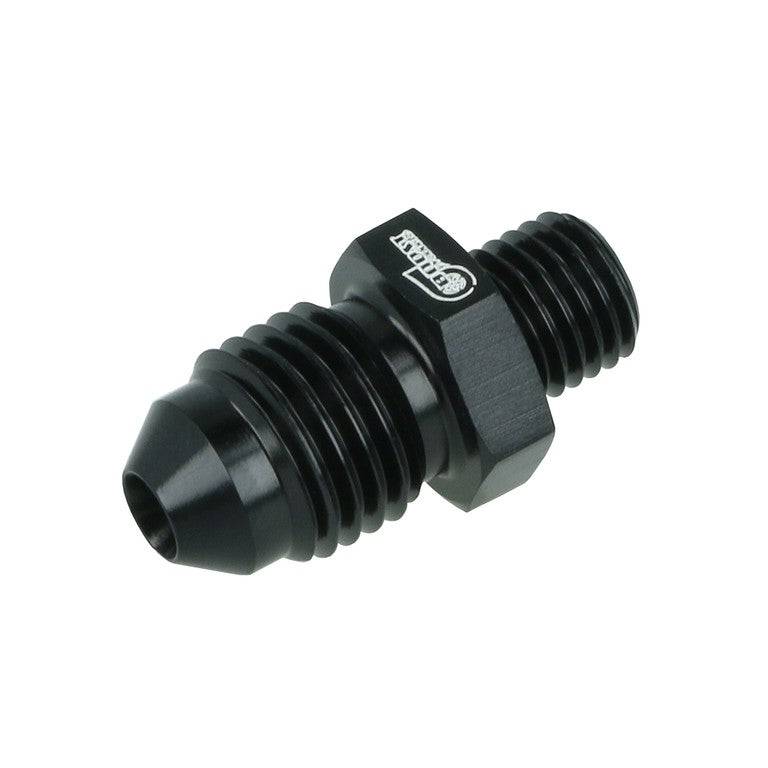

| -04 AN / Dash 4 male | M8x1.0 male | GA-D4M81-B | GA-D4M81-S |

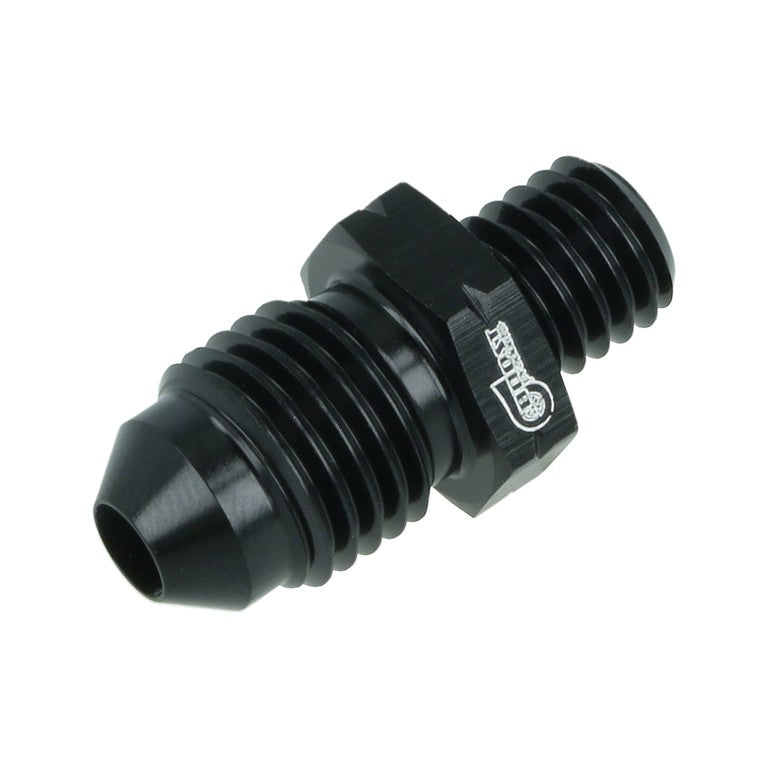

| -04 AN / Dash 4 male | M8x1.25 male | GA-D4M82-B | GA-D4M82-S |

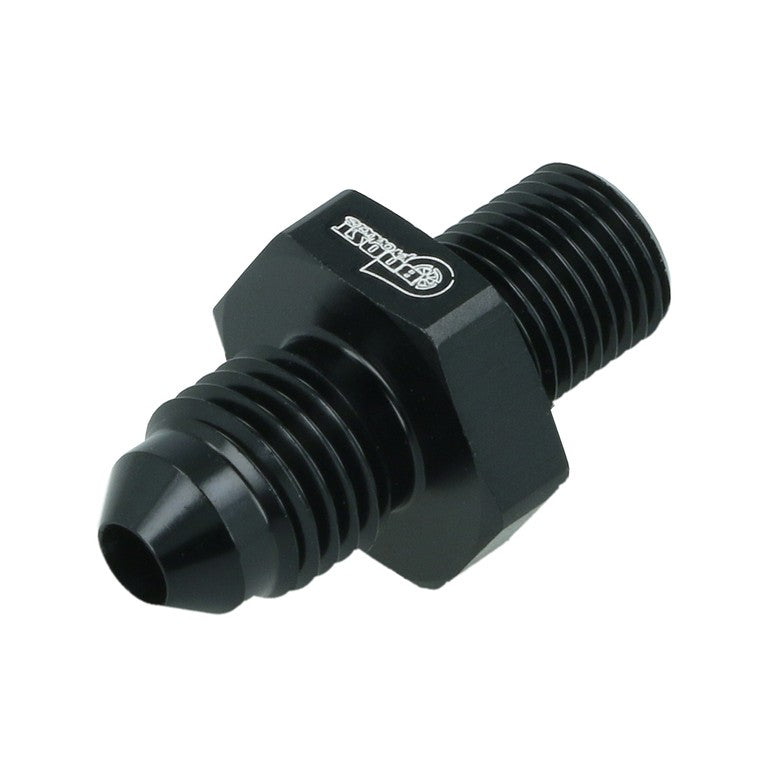

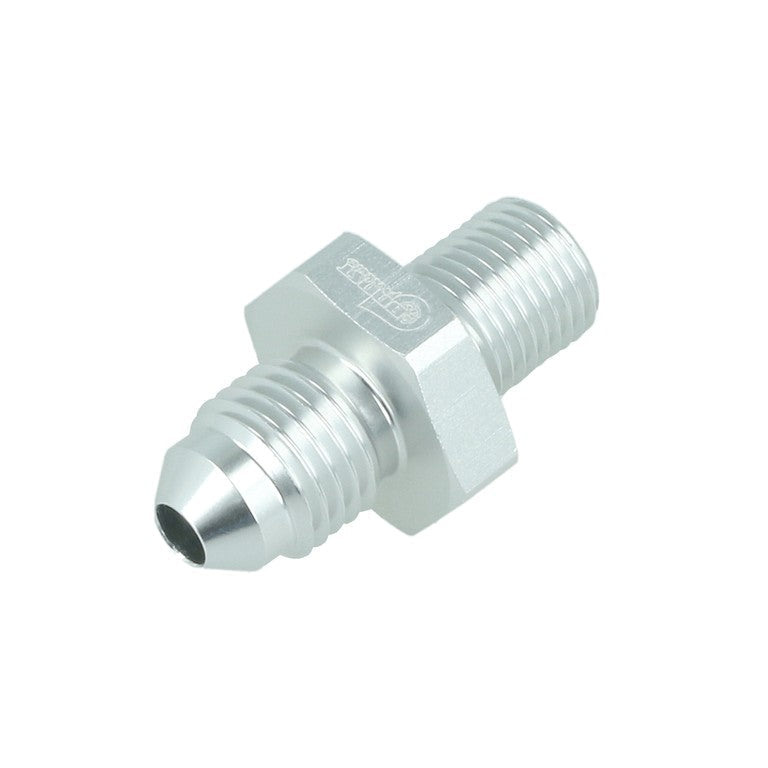

| -04 AN / Dash 4 male | M10x1.0 male | GA-D4M101-B | GA-D4M101-S |

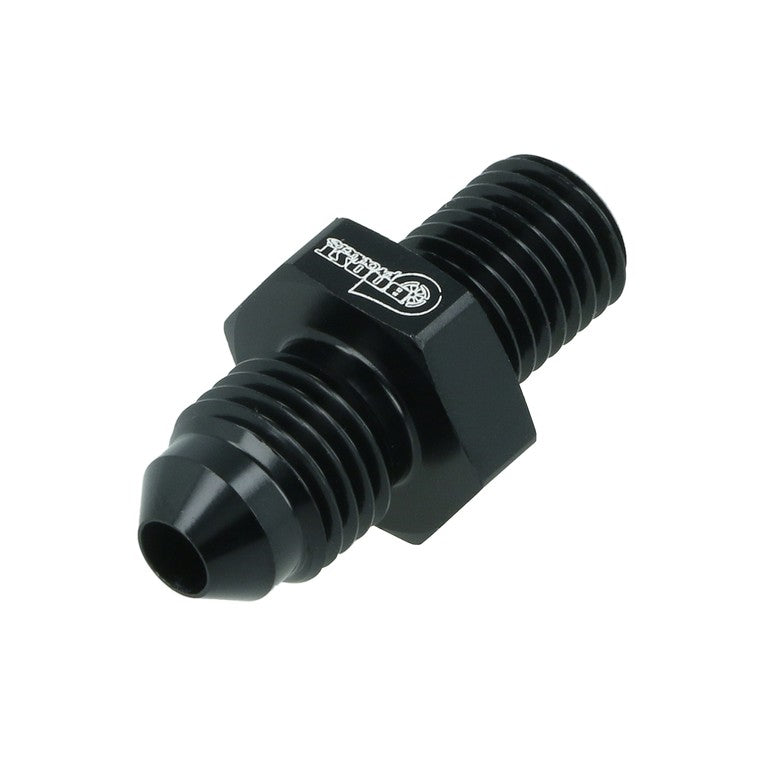

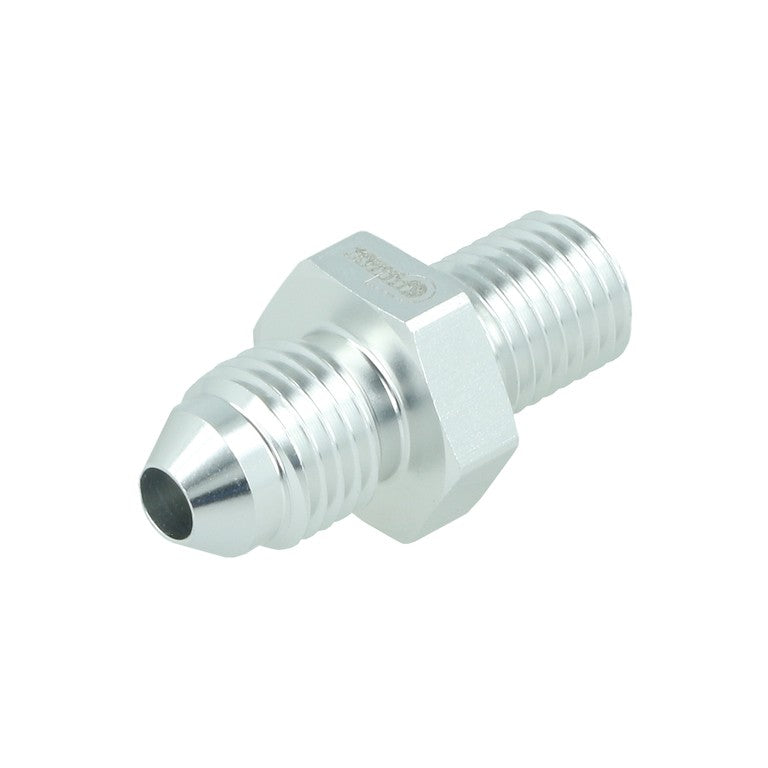

| -04 AN / Dash 4 male | M10x1.25 male | GA-D4M102-B | GA-D4M102-S |

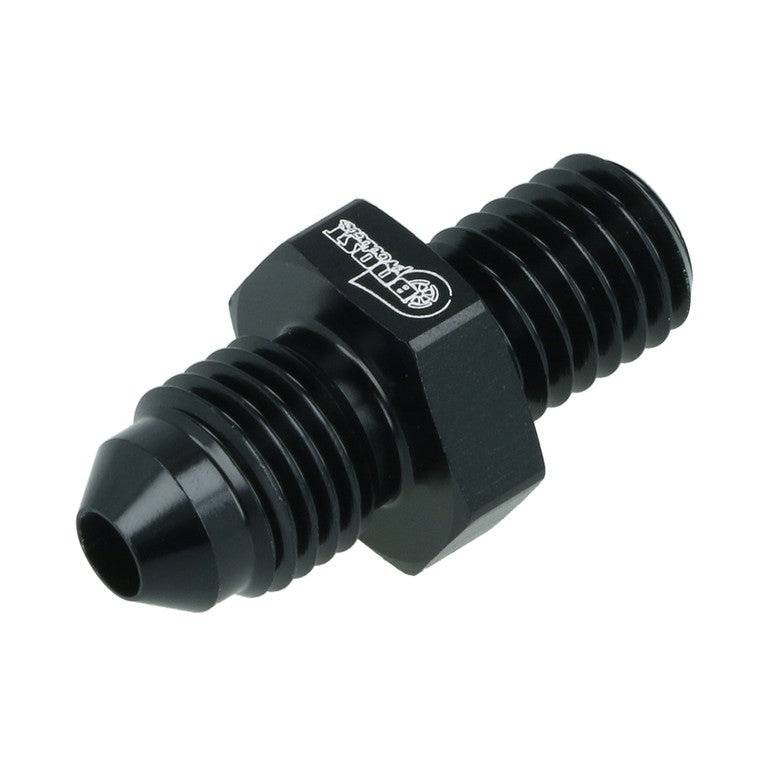

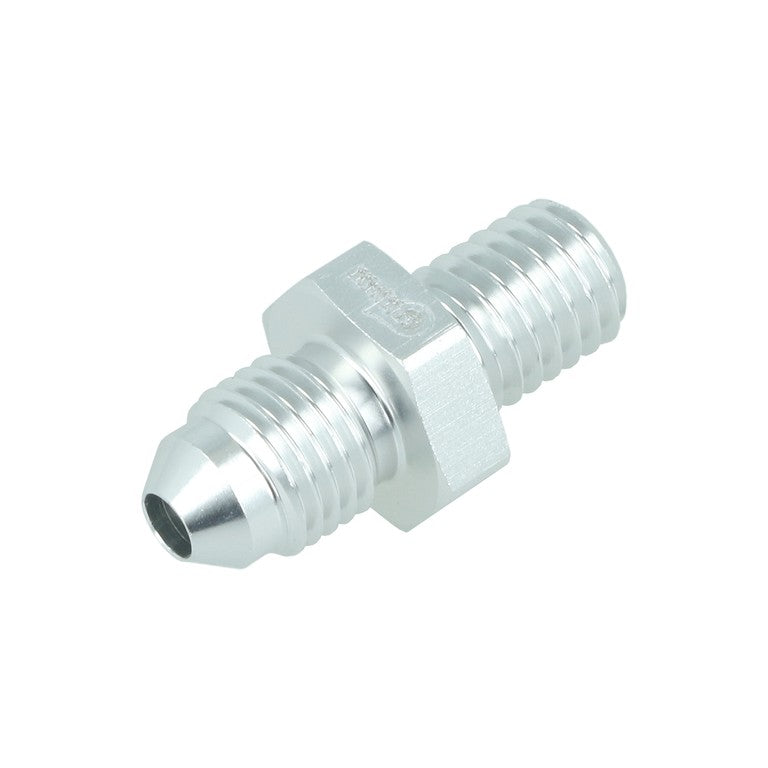

| -04 AN / Dash 4 male | M10x1.5 male | GA-D4M105-B | GA-D4M105-S |

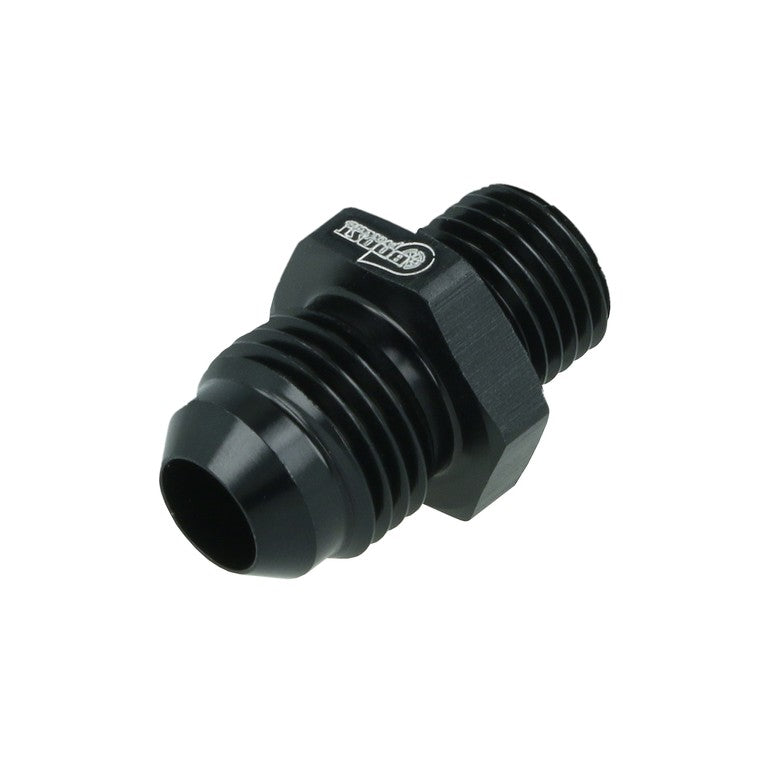

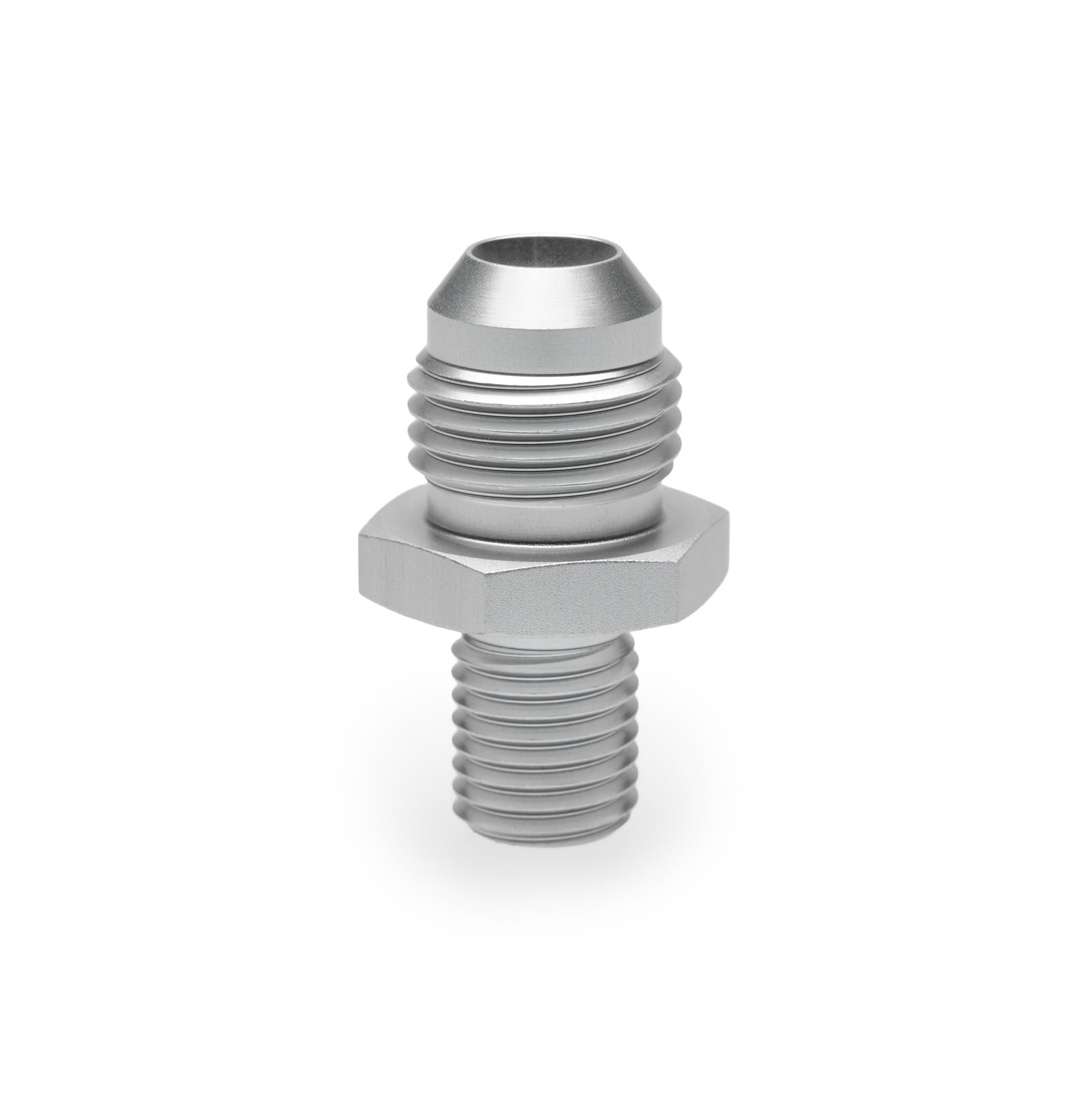

| -06 AN / Dash 6 male | M10x1.25 male | GA-D6M102-B | GA-D6M102-S |

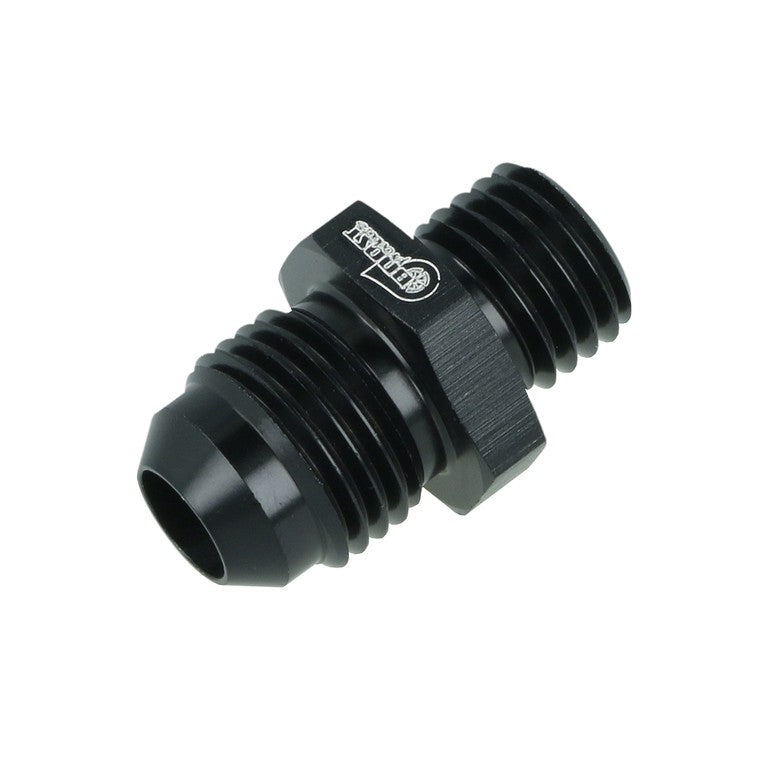

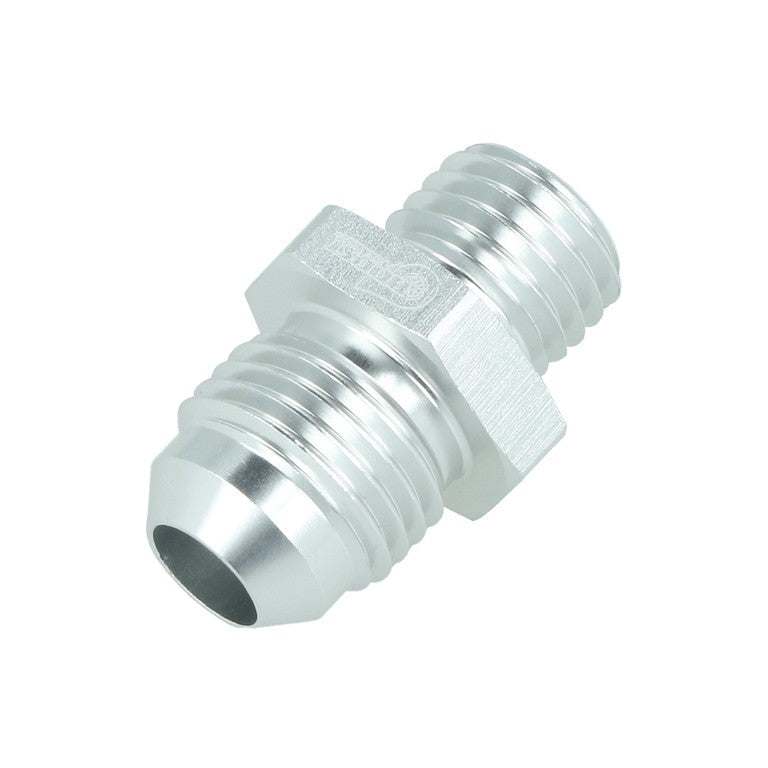

| -06 AN / Dash 6 male | M12x1.5 male | GA-D6M125-B | GA-D6M125-S |

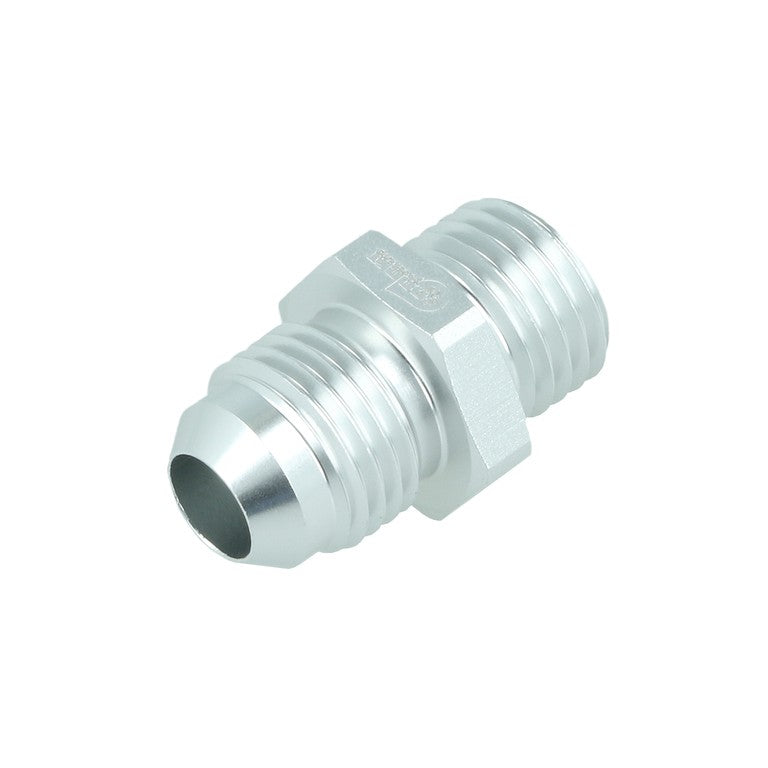

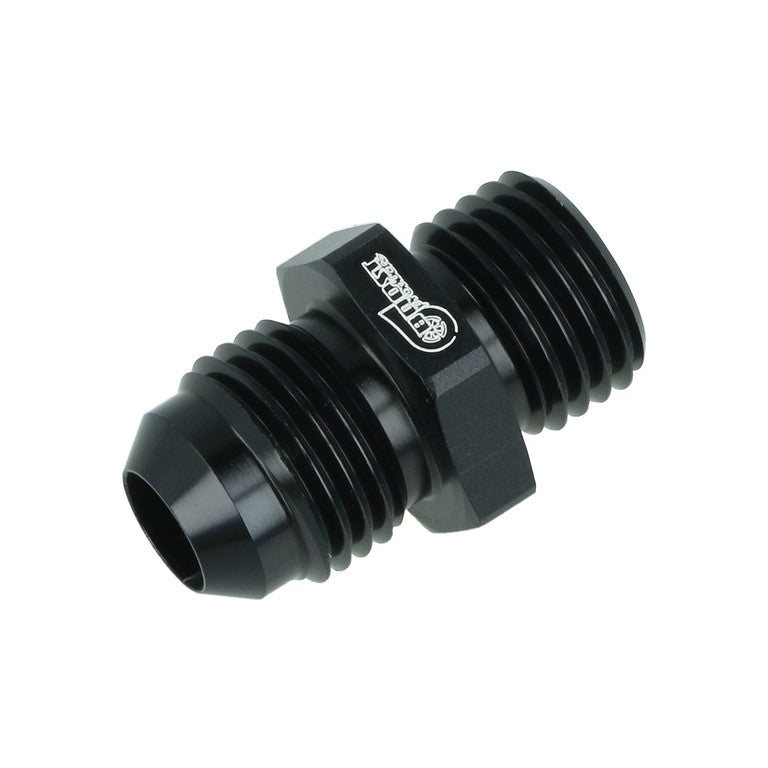

| -06 AN / Dash 6 male | M14x1.5 male | GA-D6M145-B | GA-D6M145-S |

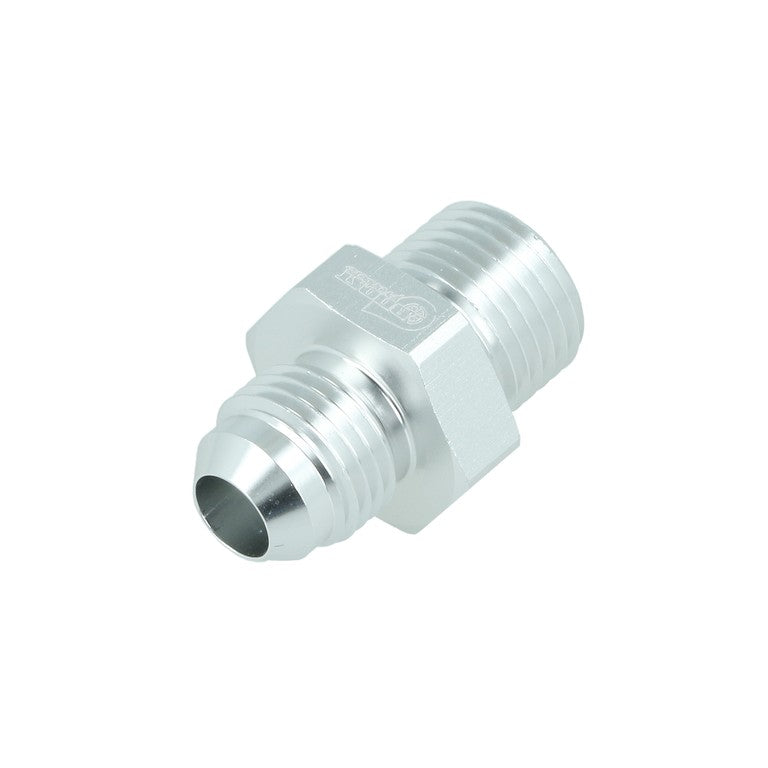

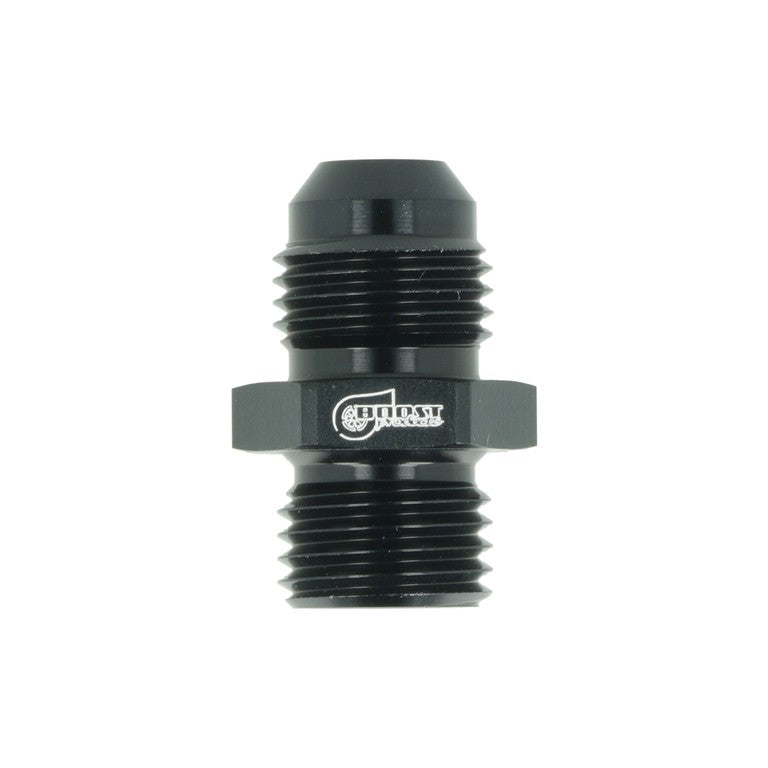

| -06 AN / Dash 6 male | M16x1.5 male | GA-D6M165-B | GA-D6M165-S |

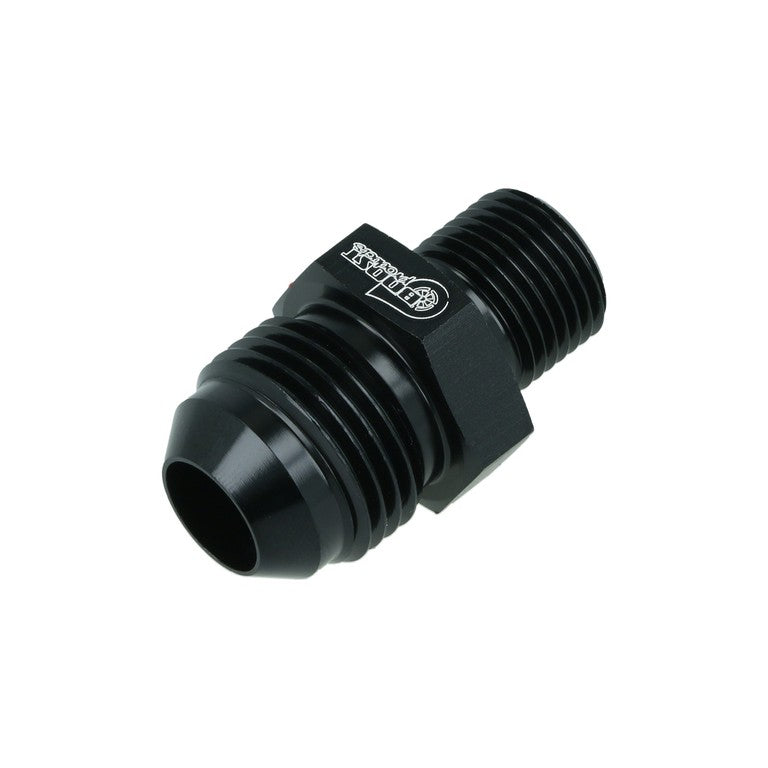

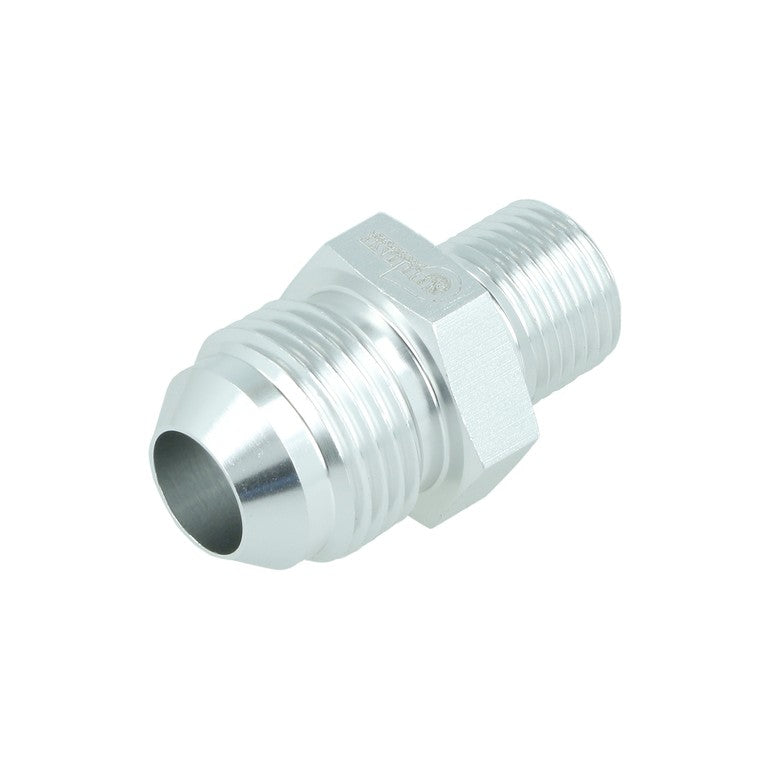

| -08 AN / Dash 8 male | M14x1.25 male | GA-D8M142-B | GA-D8M142-S |

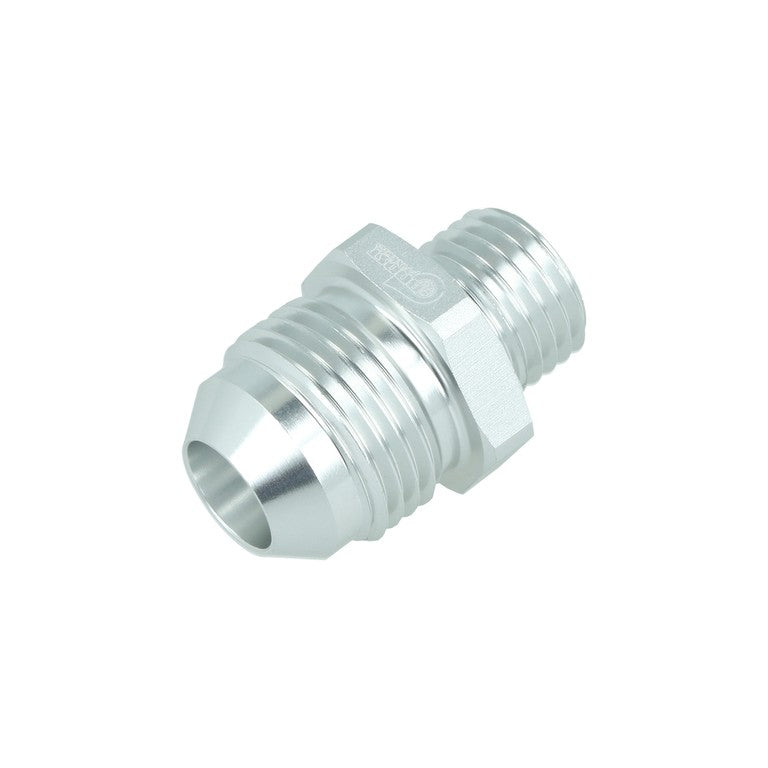

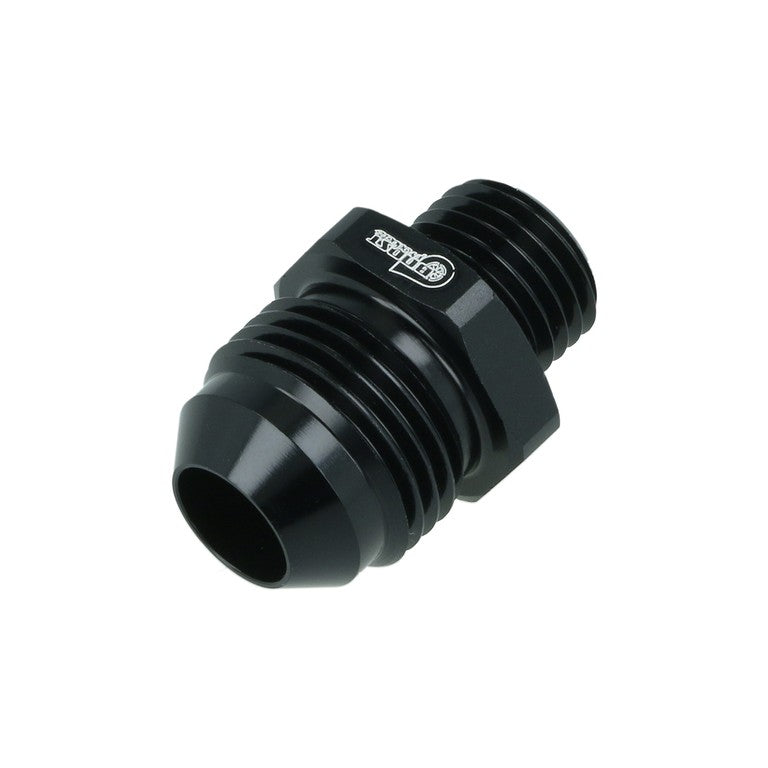

| -08 AN / Dash 8 male | M14x1.5 male | GA-D8M145-B | GA-D8M145-S |

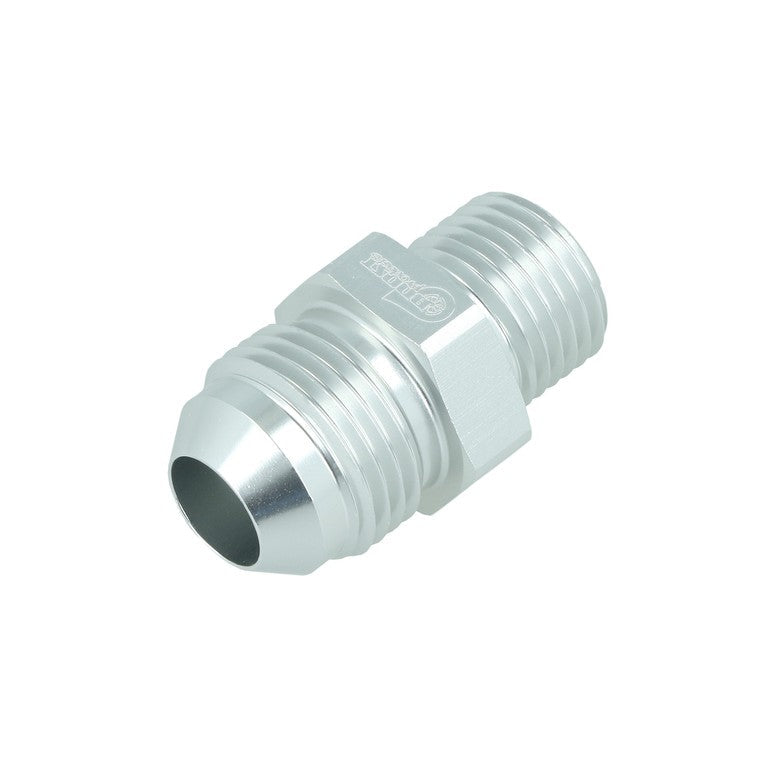

| -08 AN / Dash 8 male | M16x1.5 male | GA-D8M165-B | GA-D8M165-S |

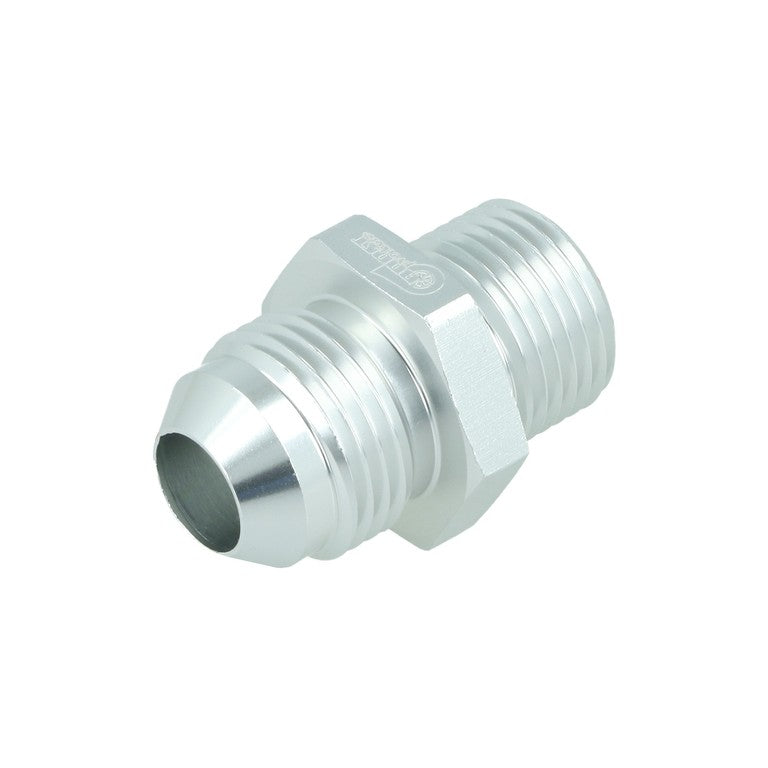

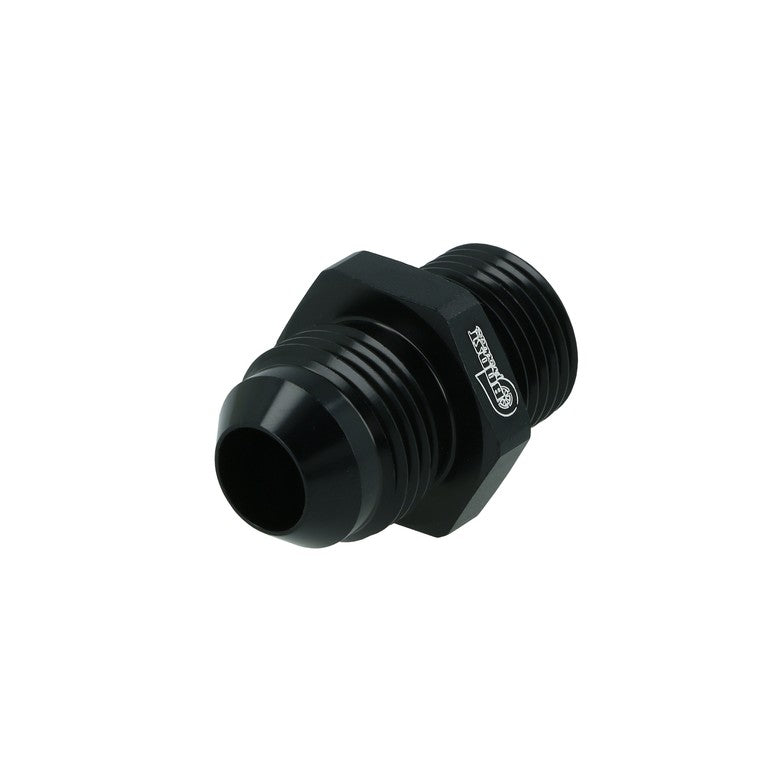

| -08 AN / Dash 8 male | M18x1.5 male | GA-D8M185-B | GA-D8M185-S |

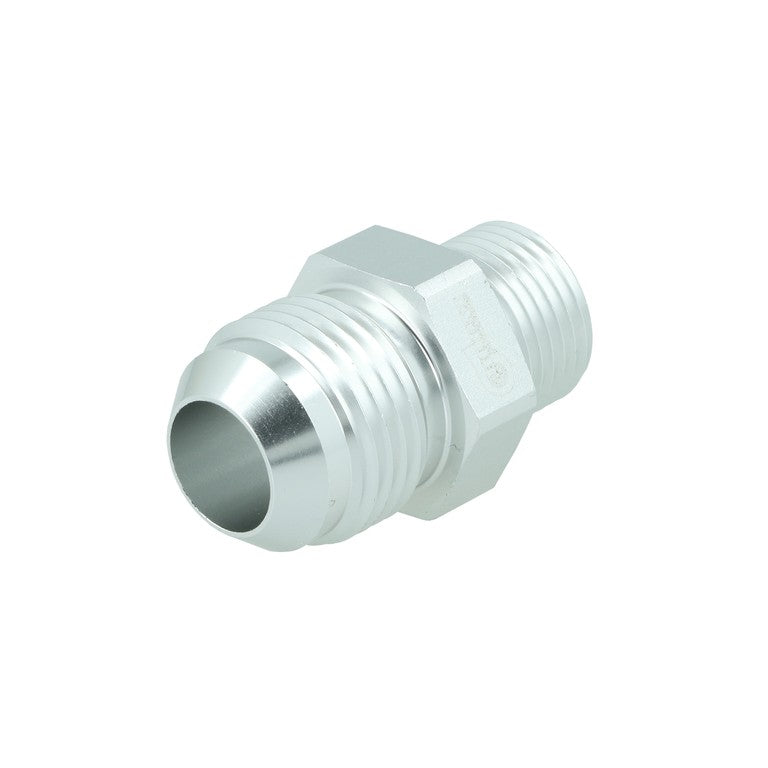

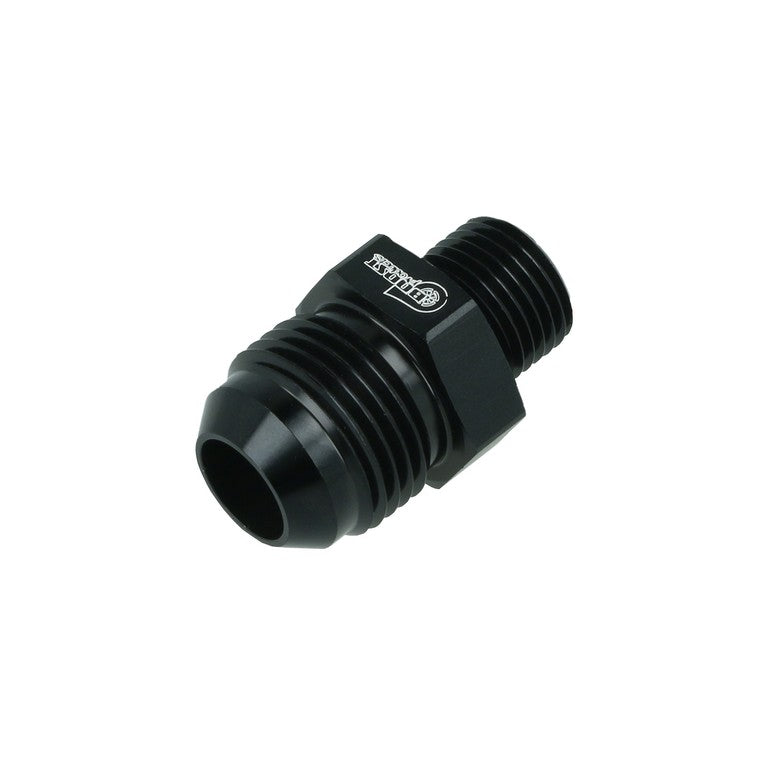

| -10 AN / Dash 10 male | M16x1.5 male | GA-D10M16-B | GA-D10M16-S |

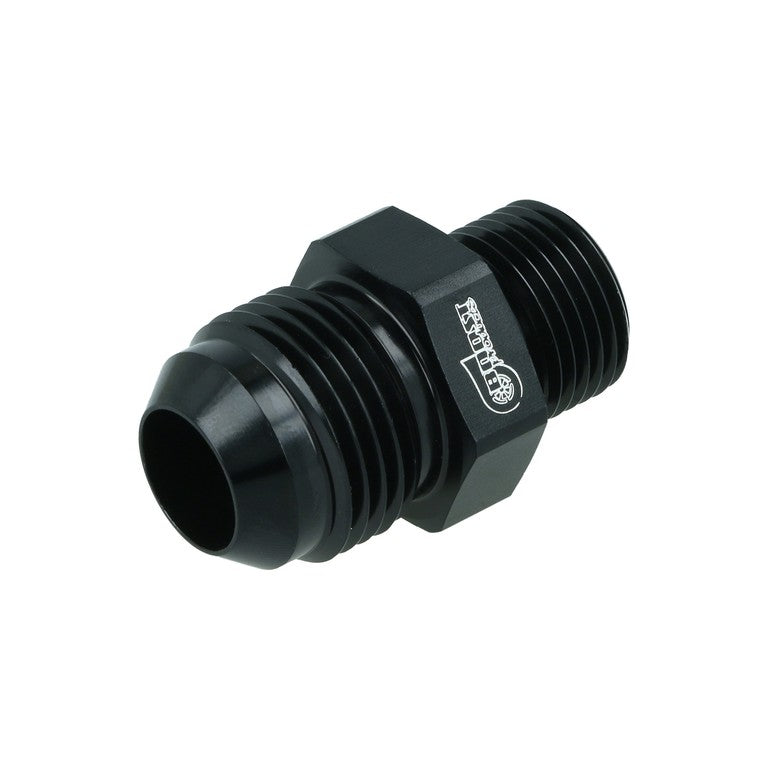

| -10 AN / Dash 10 male | M18x1.5 male | GA-D10M18-B | GA-D10M18-S |

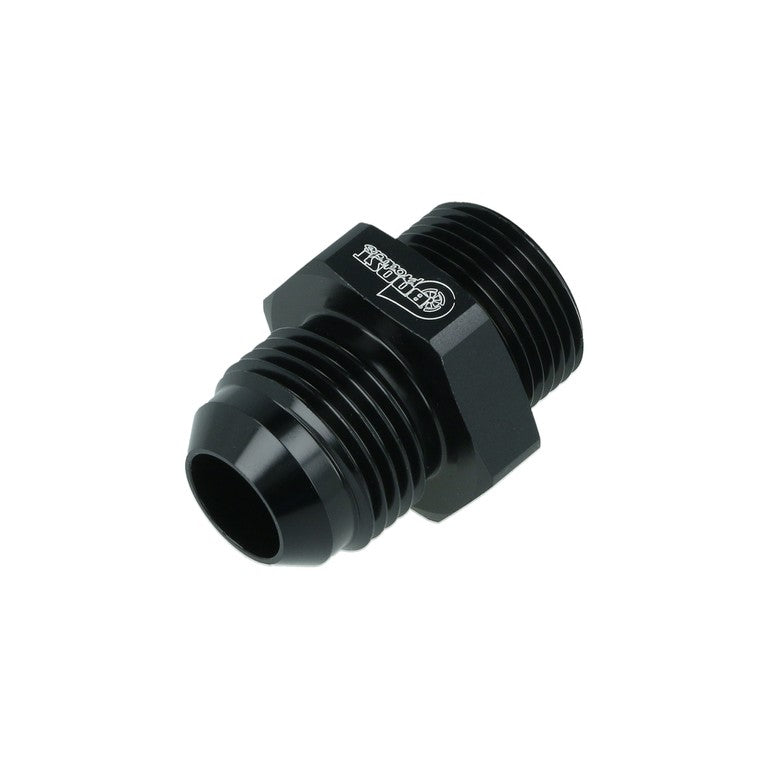

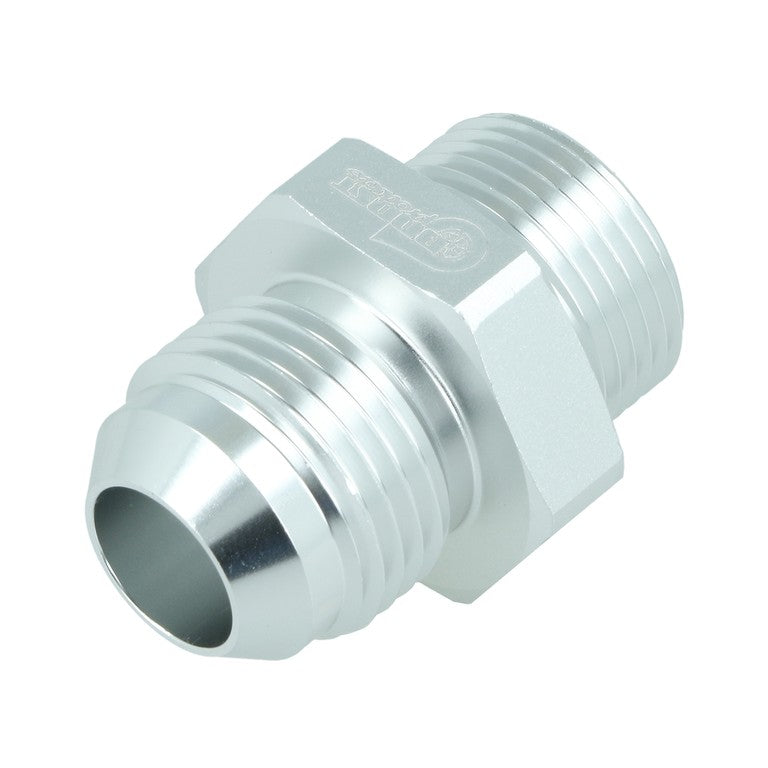

| -10 AN / Dash 10 male | M22x1.5 male | GA-D10M22-B | GA-D10M22-S |
Frequently Asked Questions
Which AN size do I need for turbo oil lines?
For turbocharger plumbing, -04 AN is the usual choice for oil feed lines and -10 AN for oil return lines. For fuel, water and other lines, match the fitting to the existing ports and to the component manufacturer's recommendation.
Is it safe for E85 and methanol?
Yes. BOOST Products fittings and adapters are resistant to E85 and methanol and are also suitable for fuel, oil, water and air.
How do I identify my AN size?
The dash number is the tube outer diameter in sixteenths of an inch, so -06 AN corresponds to a 3/8" tube. The thread sizes are 7/16"-20 for -04 AN, 9/16"-18 for -06 AN, 3/4"-16 for -08 AN, 7/8"-14 for -10 AN and 1 1/16"-12 for -12 AN.
