Thread Adapter -AN Male to NPT Male

Thread Adapter -AN Male to NPT Male

BOOST Products USA

Part #
GA-D10N12-B
UPC #
4250815849899

Black Friday Sale On All November Long! No Code Needed!

Regular price $5.61 USD
Regular price $5.61 USD Sale price $5.61 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Product Description

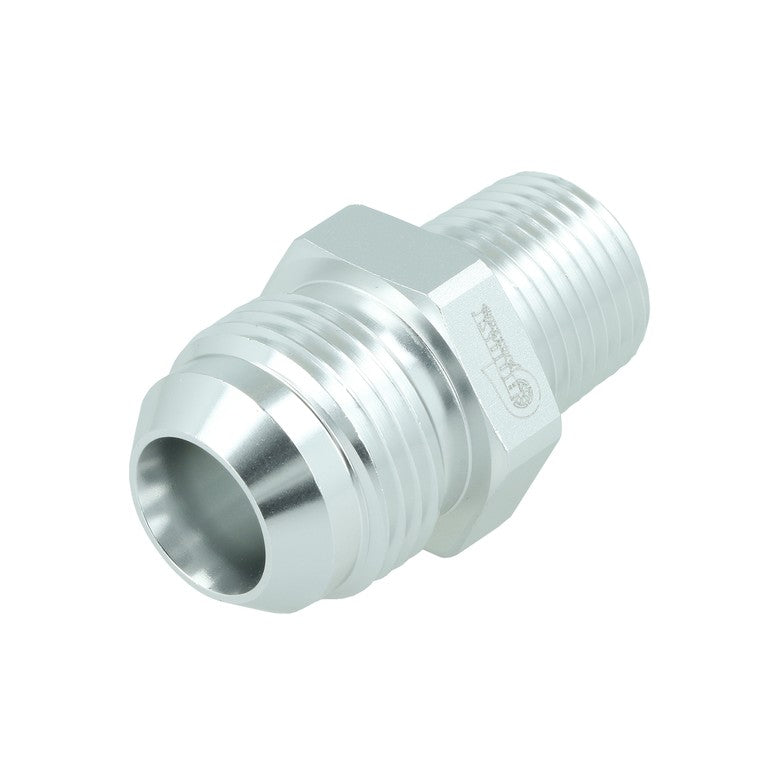

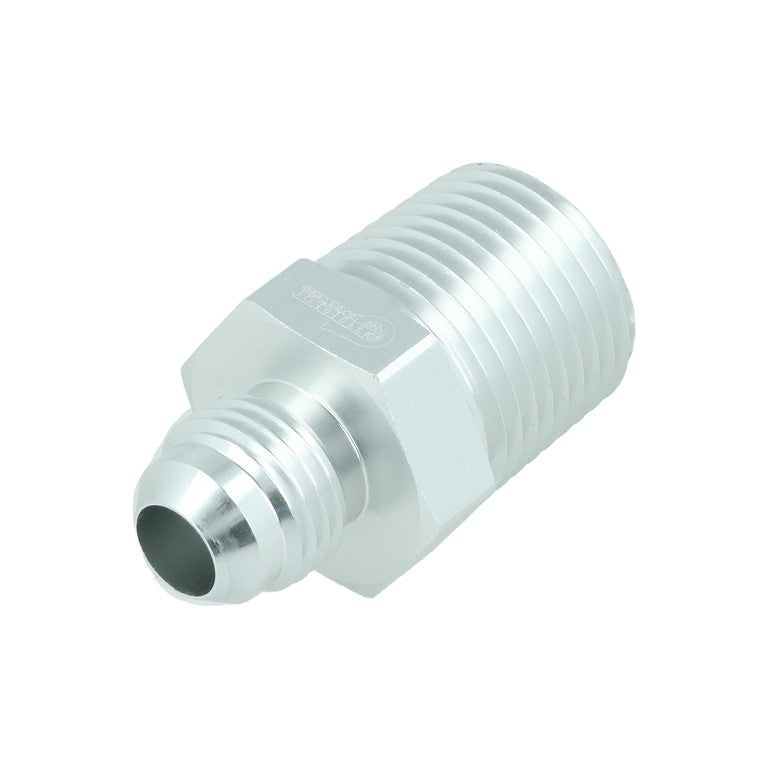

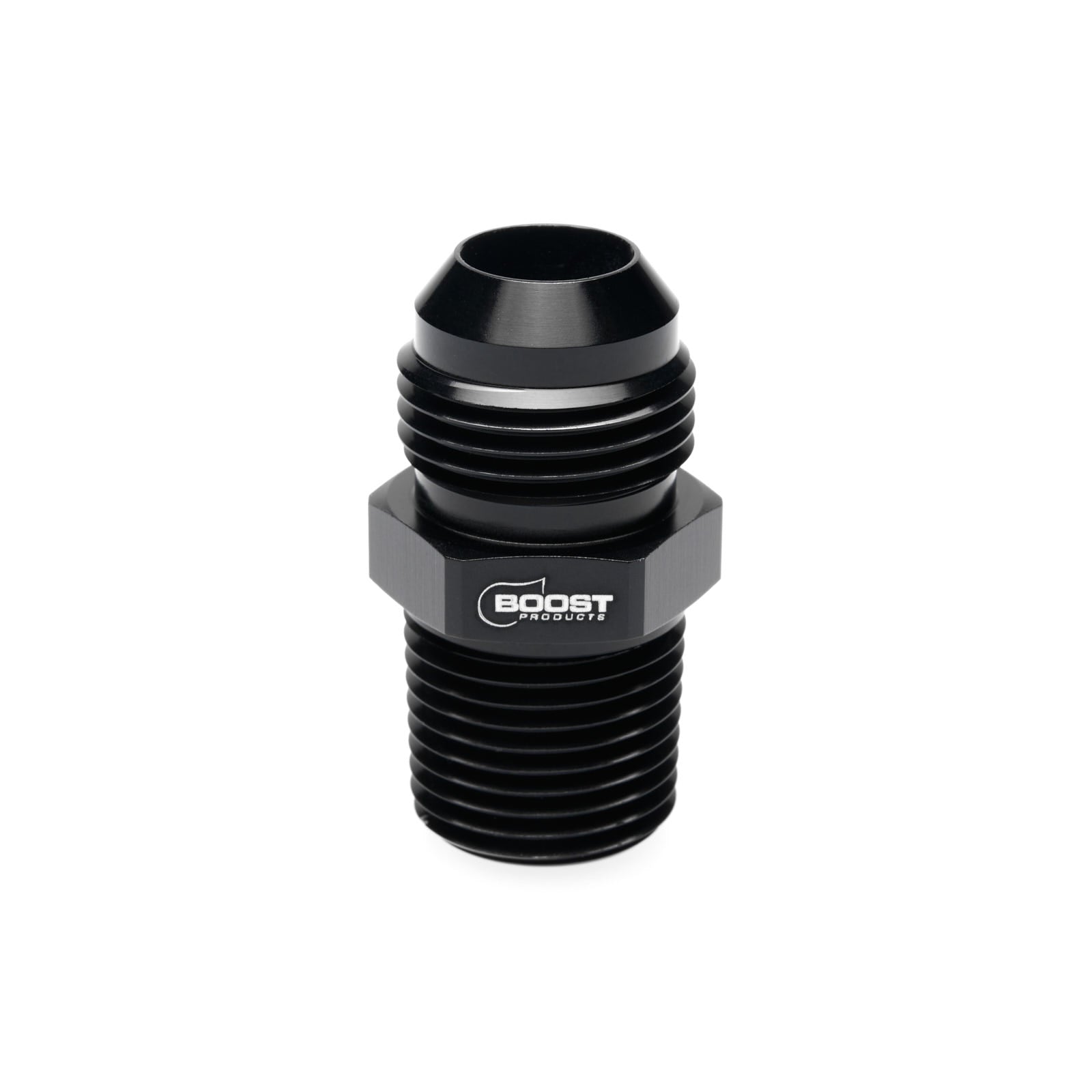

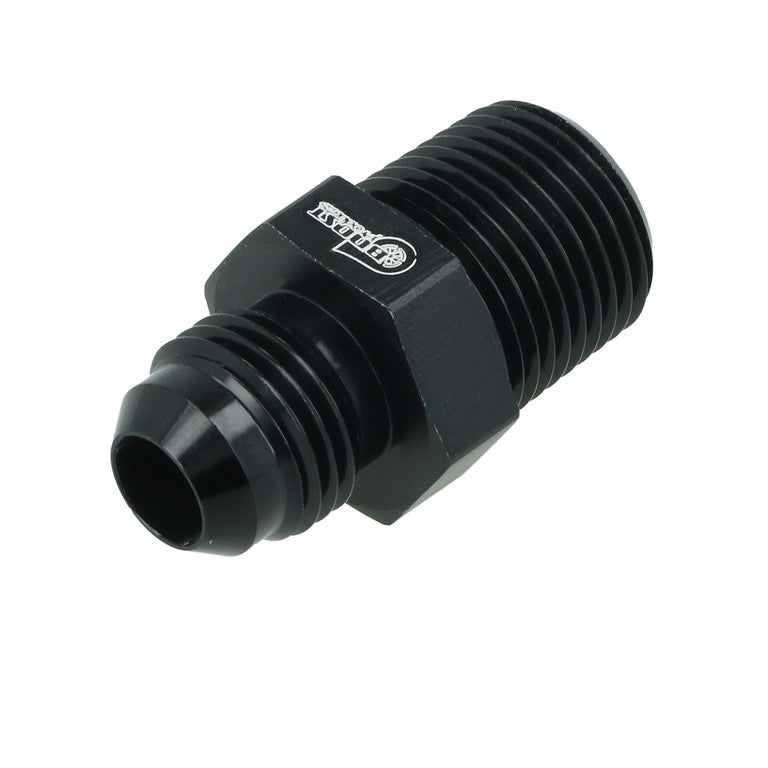

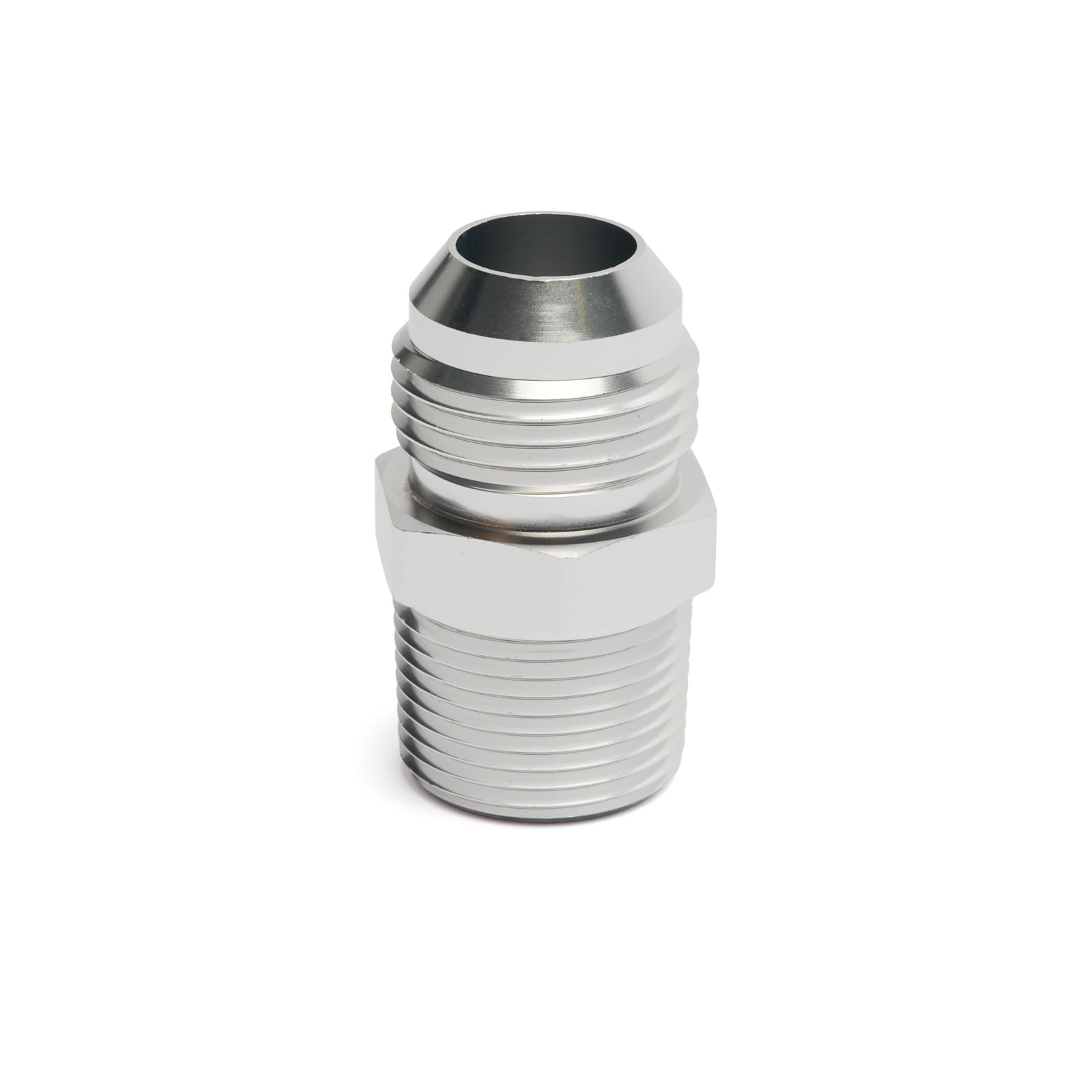

-AN Male to NPT Male Thread Adapter in 6061-T6 Aluminum

This straight adapter joins a -AN hose end to an NPT port, for example on a pump, regulator, cooler or sensor block. One side is a male AN thread, the other a male NPT pipe thread. Each adapter is CNC machined from 6061-T6 aluminum to AN and JIC specifications and comes in satin silver or satin black.

Key Features

  • CNC machined from 6061-T6 aluminum
  • Conforms to AN and JIC specifications
  • Suitable for fuel, E85, methanol, oil, water and pneumatic lines
  • Thread A: -04 AN to -12 AN male
  • Thread B: 1/8" to 3/4" NPT male

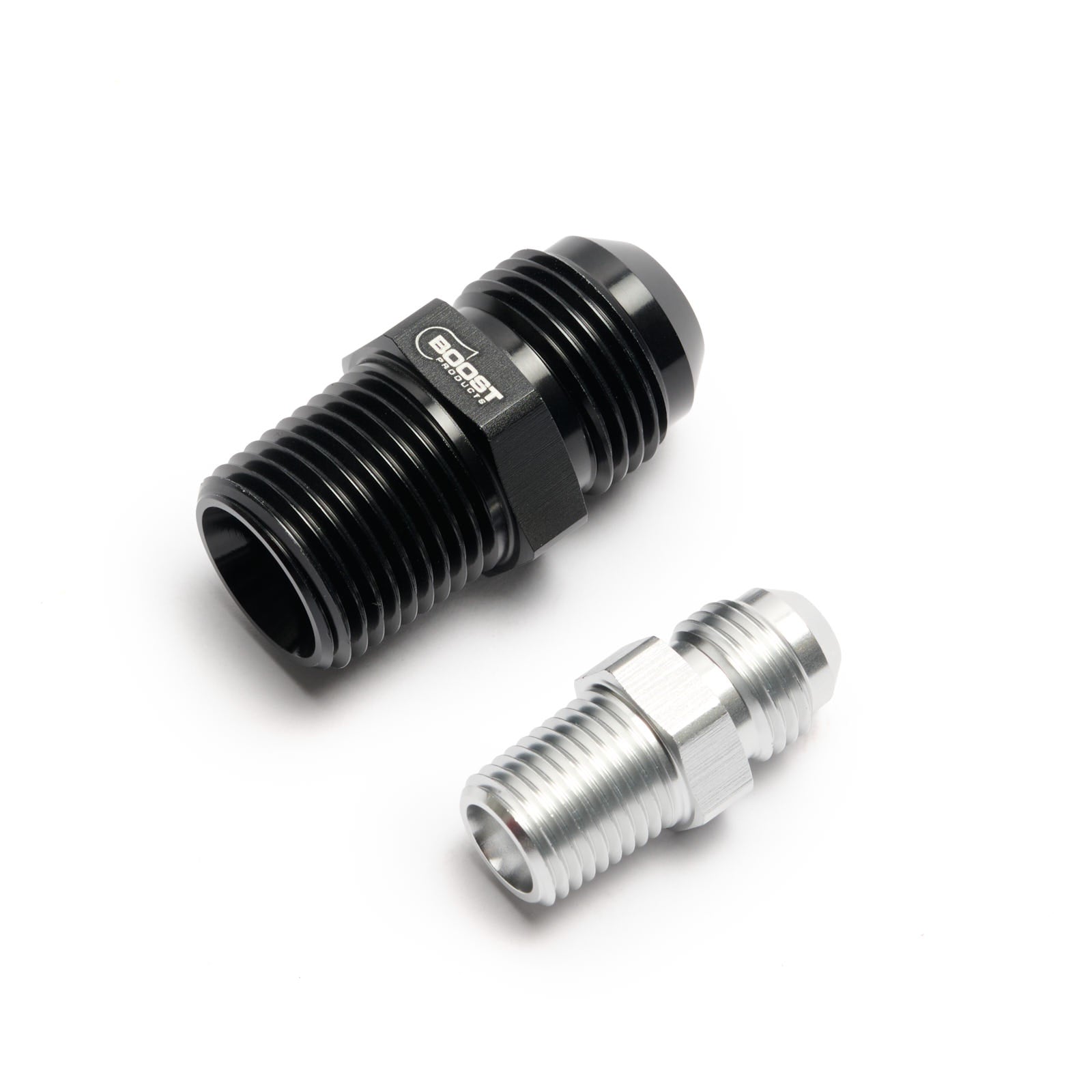

  • Finish: satin silver or satin black

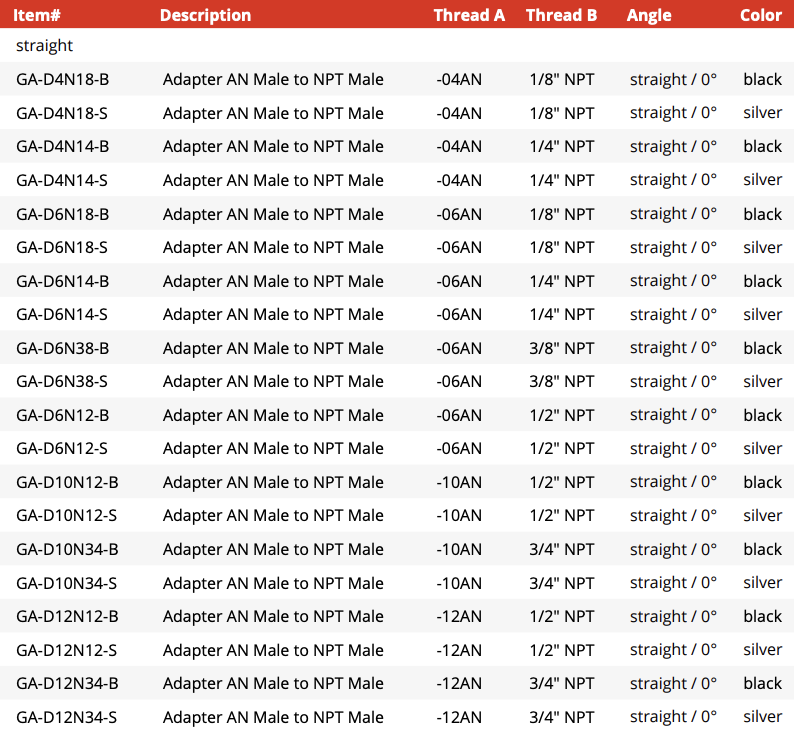

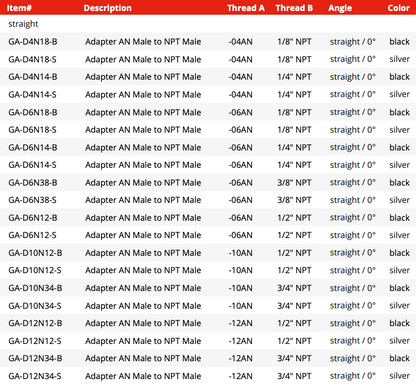

Available Sizes

Thread A Thread B Part No. satin silver Part No. satin black

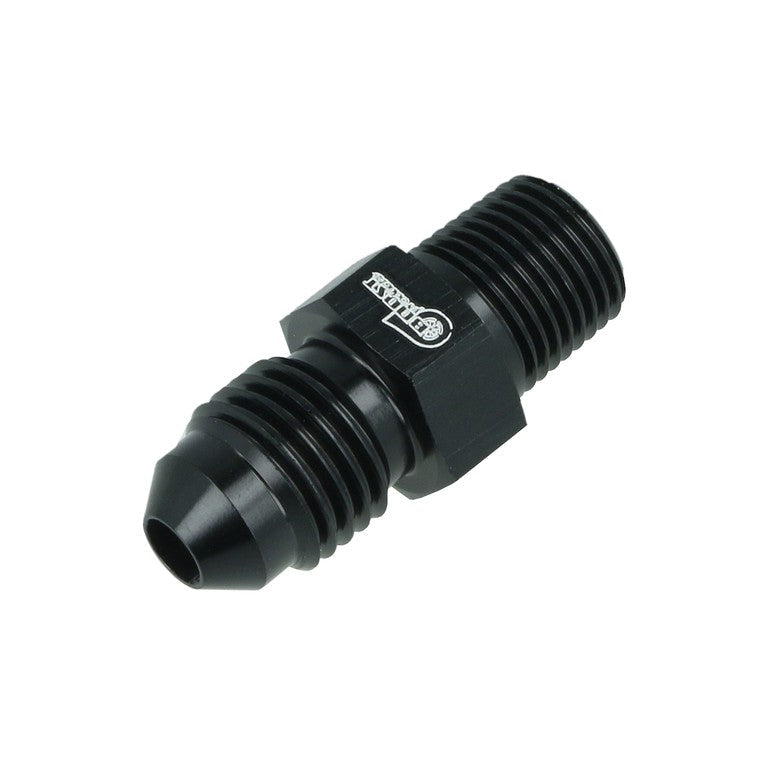

-04 AN / Dash 4 male 1/8" NPT male GA-D4N18-S GA-D4N18-B

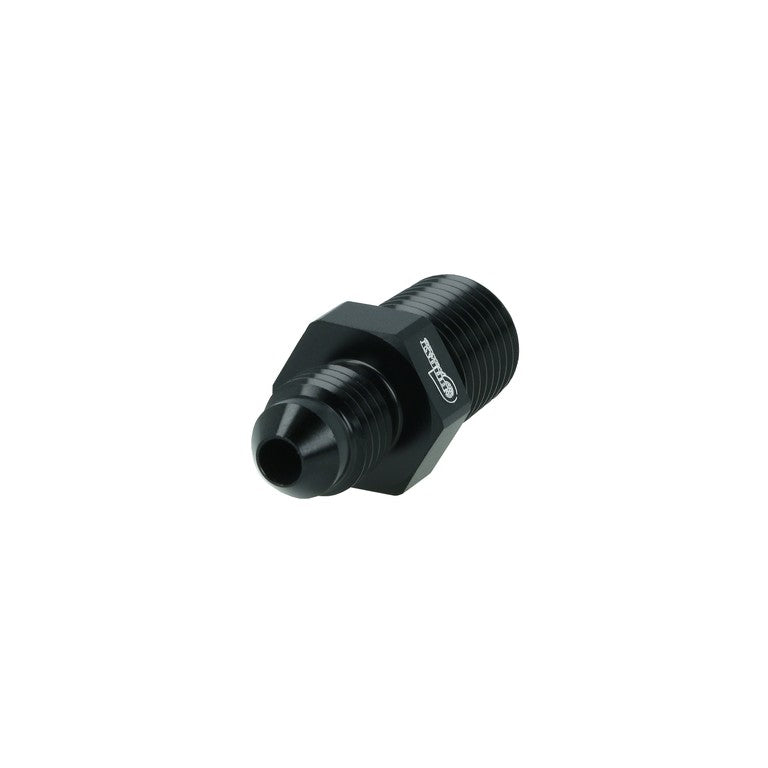

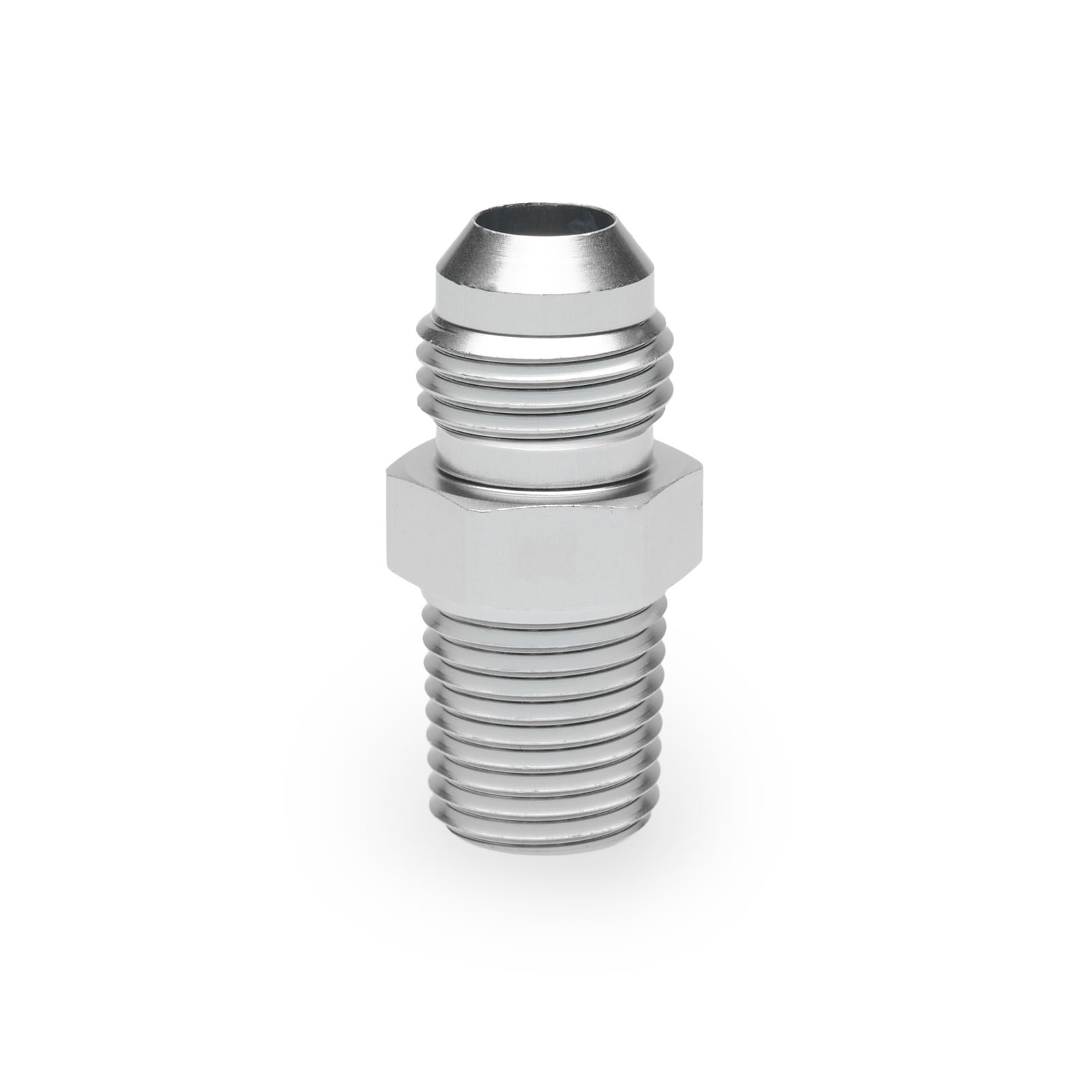

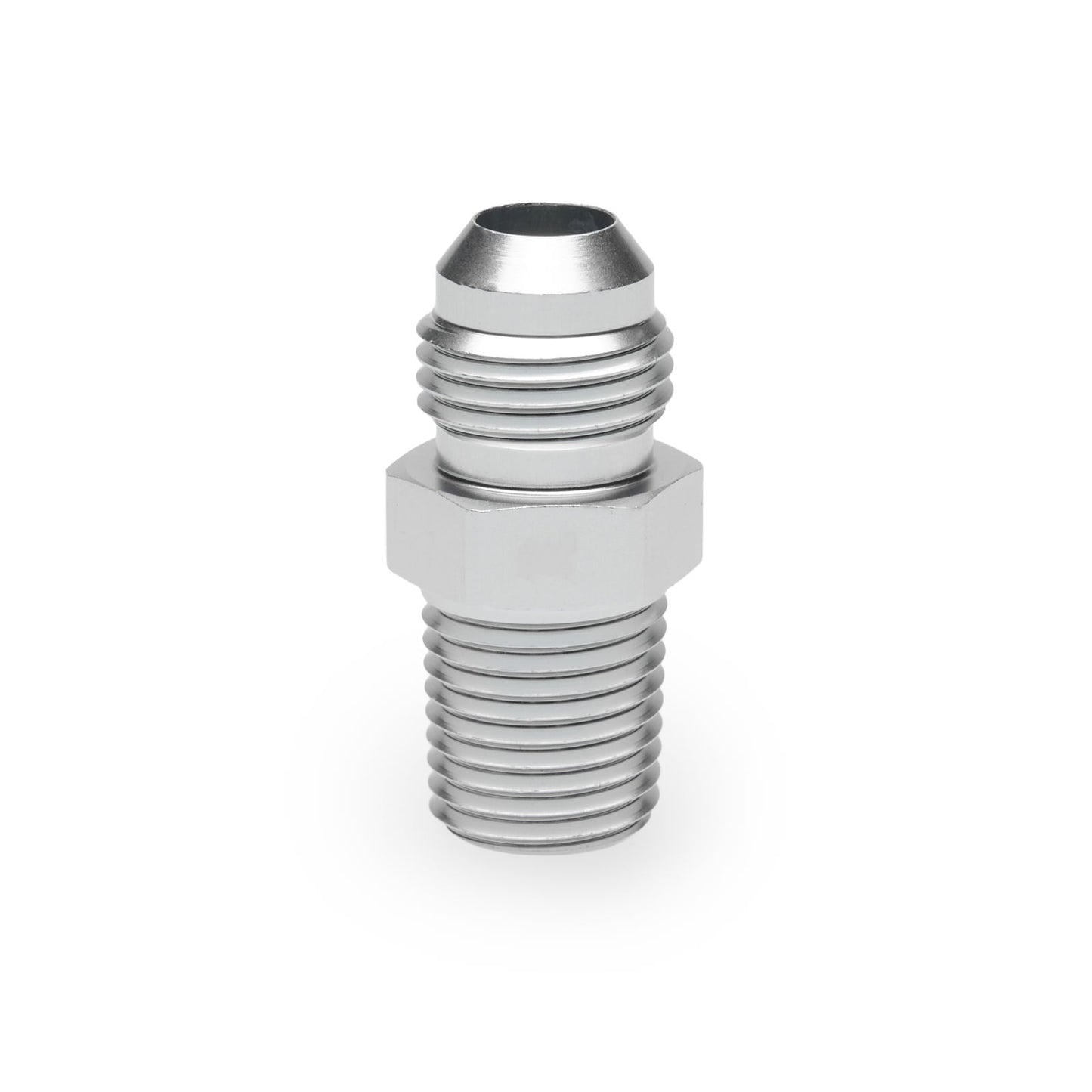

-04 AN / Dash 4 male 1/4" NPT male GA-D4N14-S GA-D4N14-B

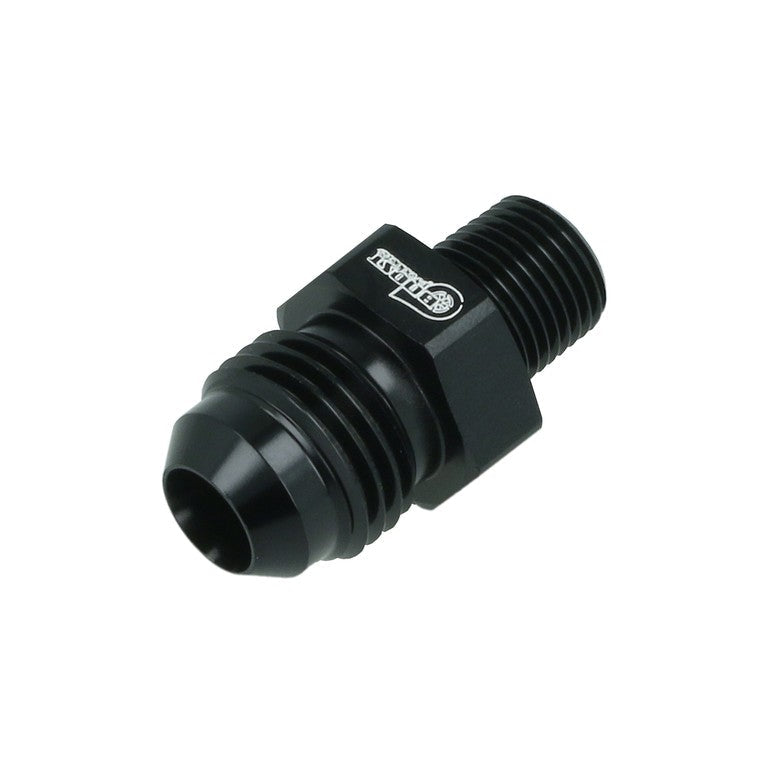

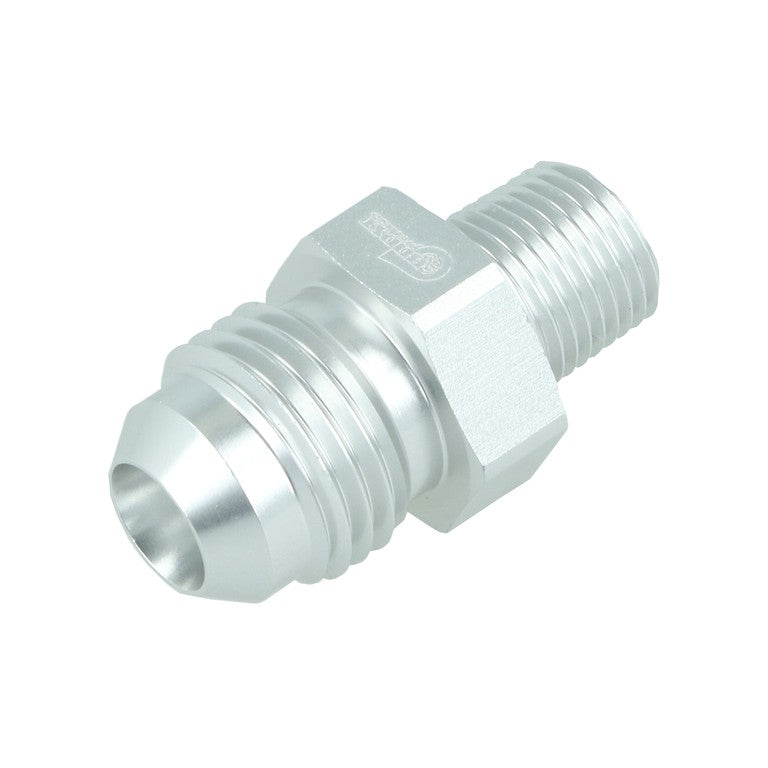

-06 AN / Dash 6 male 1/8" NPT male GA-D6N18-S GA-D6N18-B

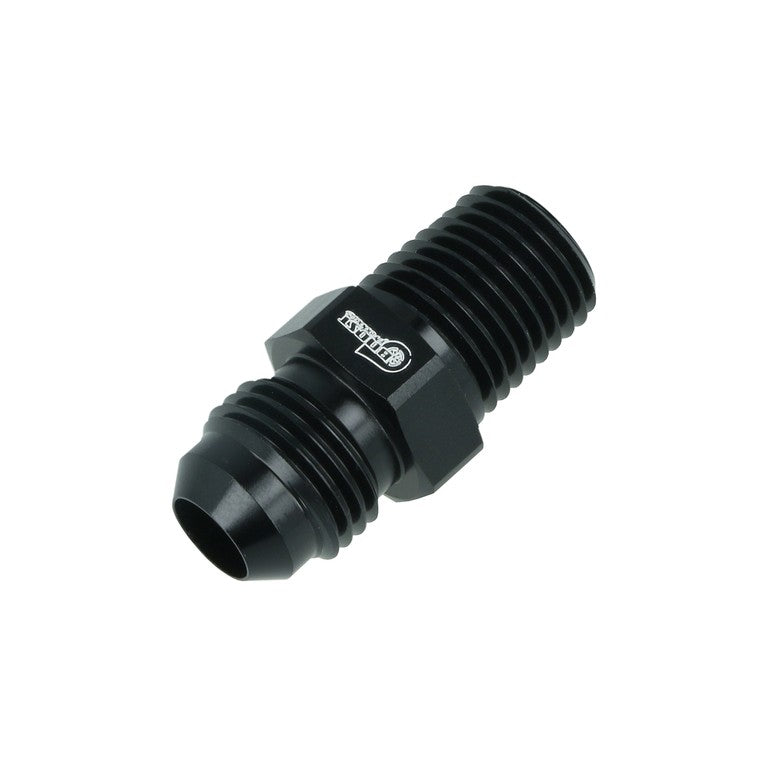

-06 AN / Dash 6 male 1/4" NPT male GA-D6N14-S GA-D6N14-B

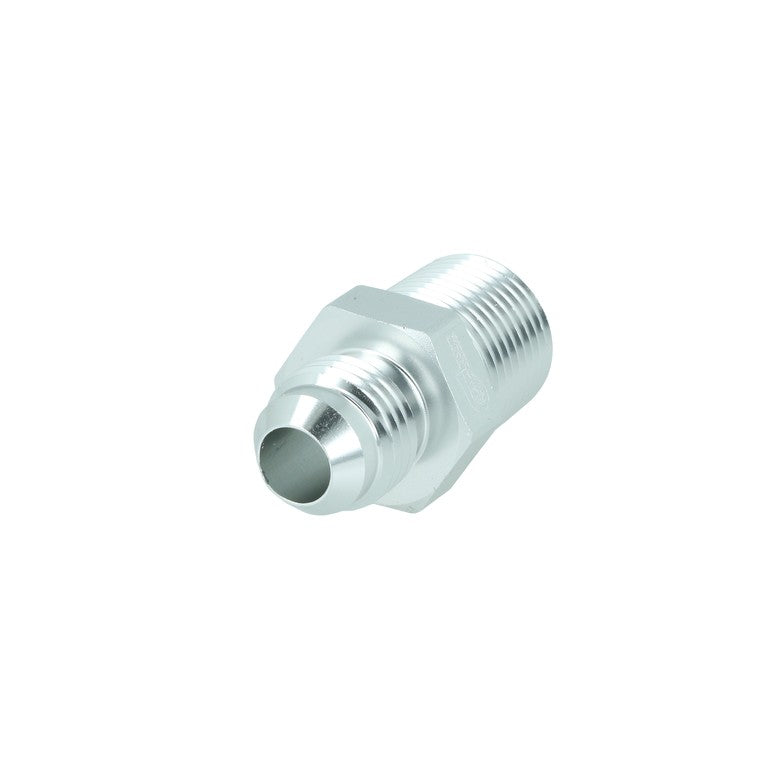

-06 AN / Dash 6 male 3/8" NPT male GA-D6N38-S GA-D6N38-B

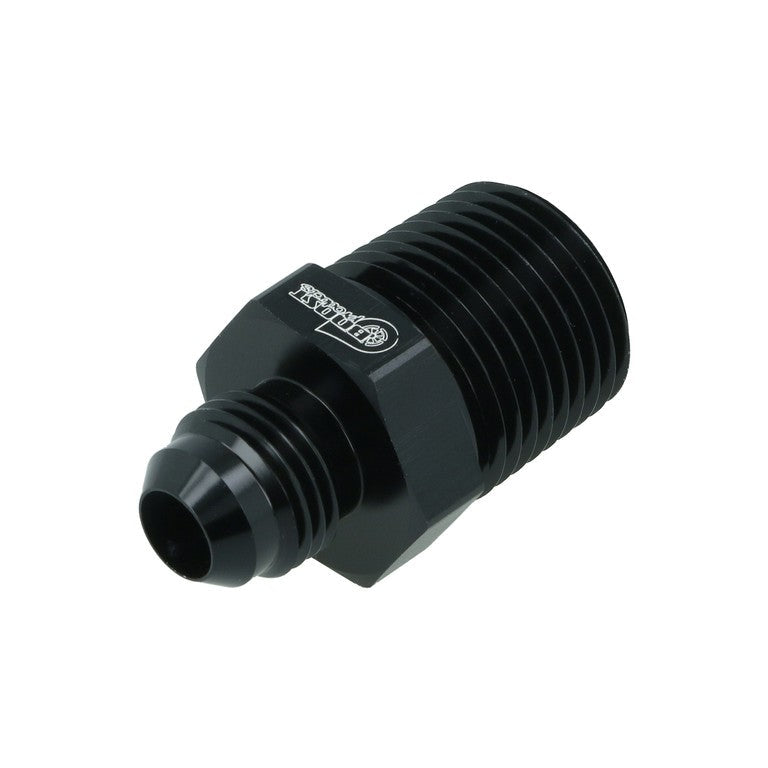

-06 AN / Dash 6 male 1/2" NPT male GA-D6N12-S GA-D6N12-B

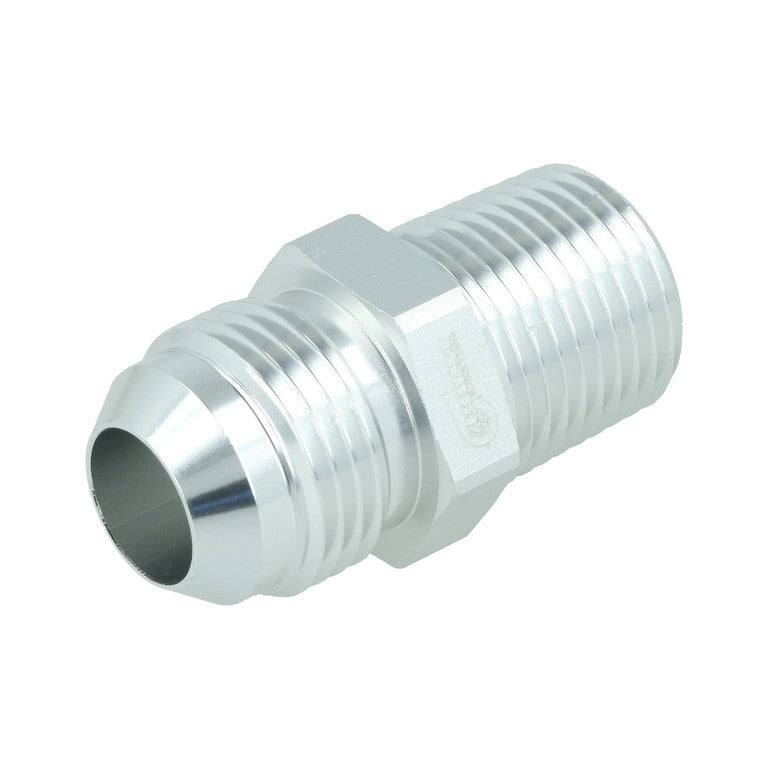

-10 AN / Dash 10 male 1/2" NPT male GA-D10N12-S GA-D10N12-B

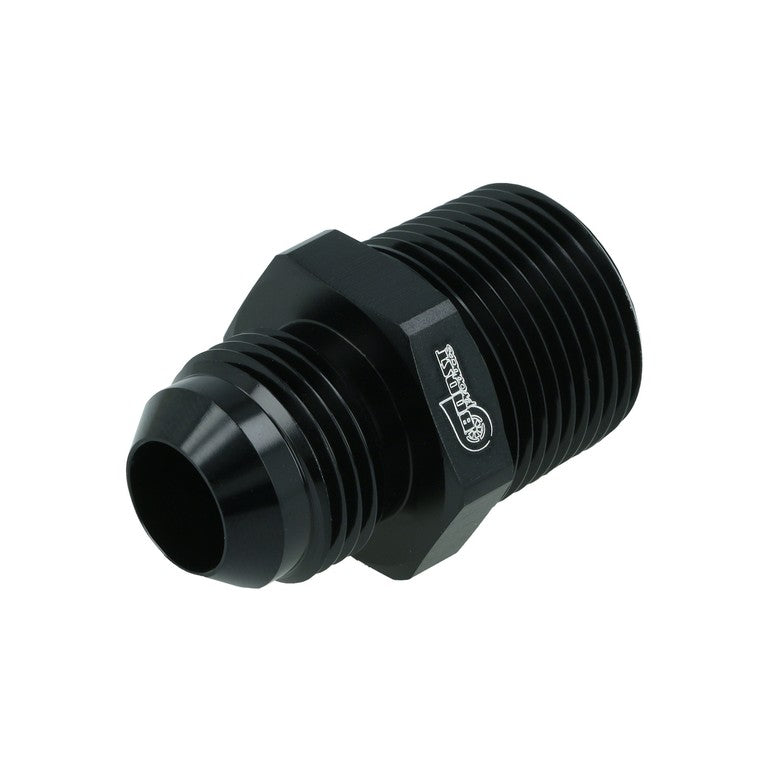

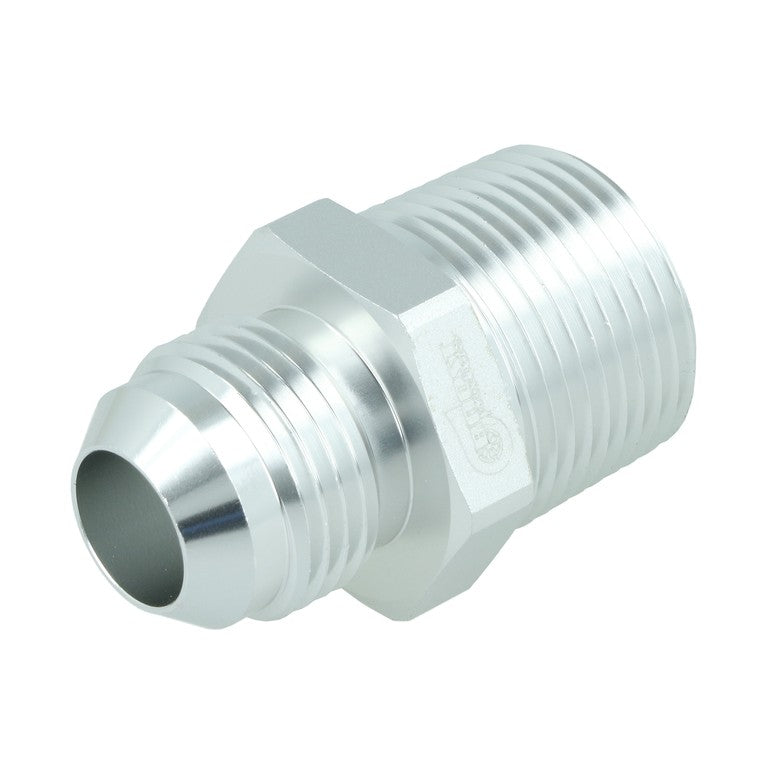

-10 AN / Dash 10 male 3/4" NPT male GA-D10N34-S GA-D10N34-B

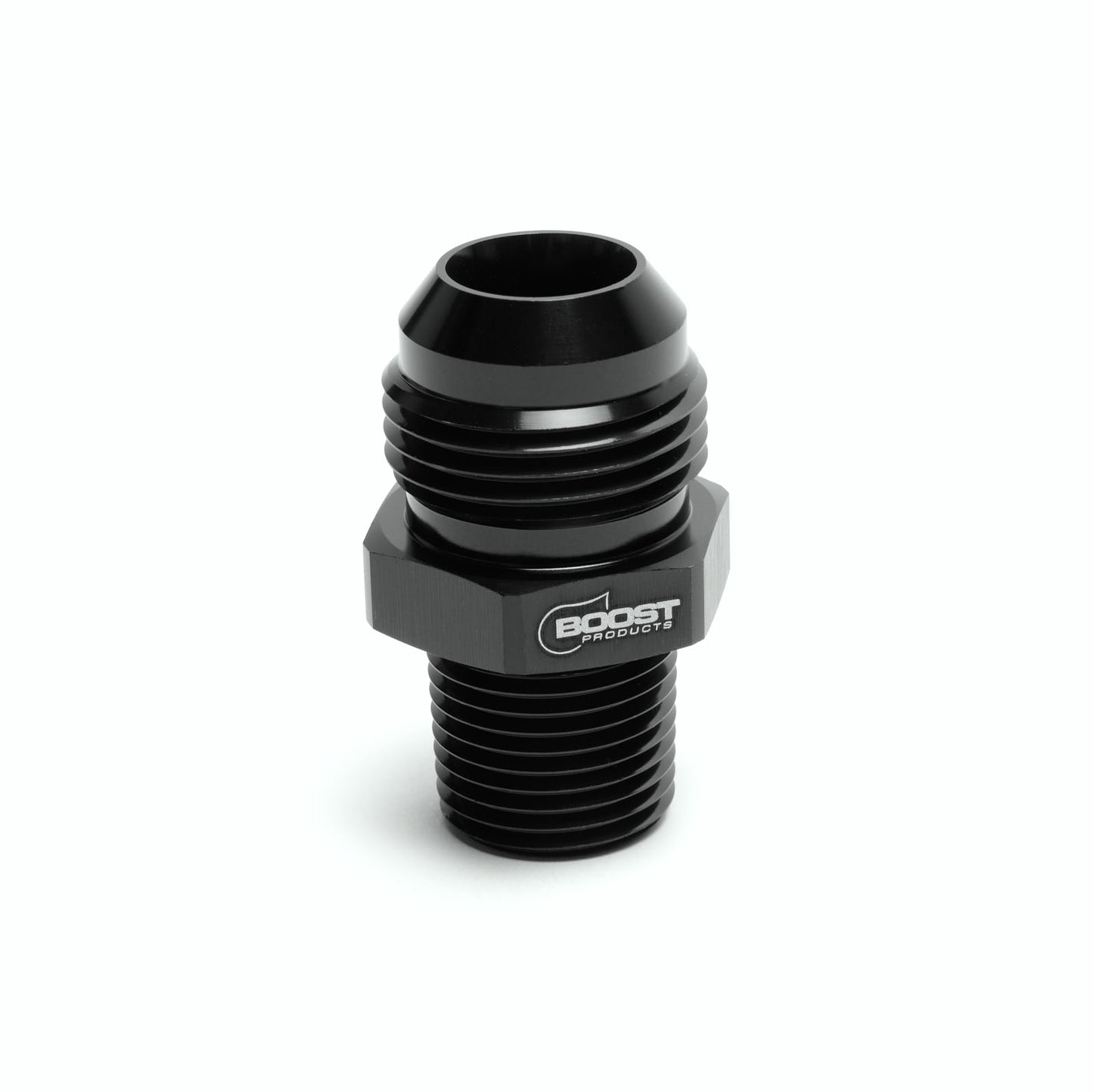

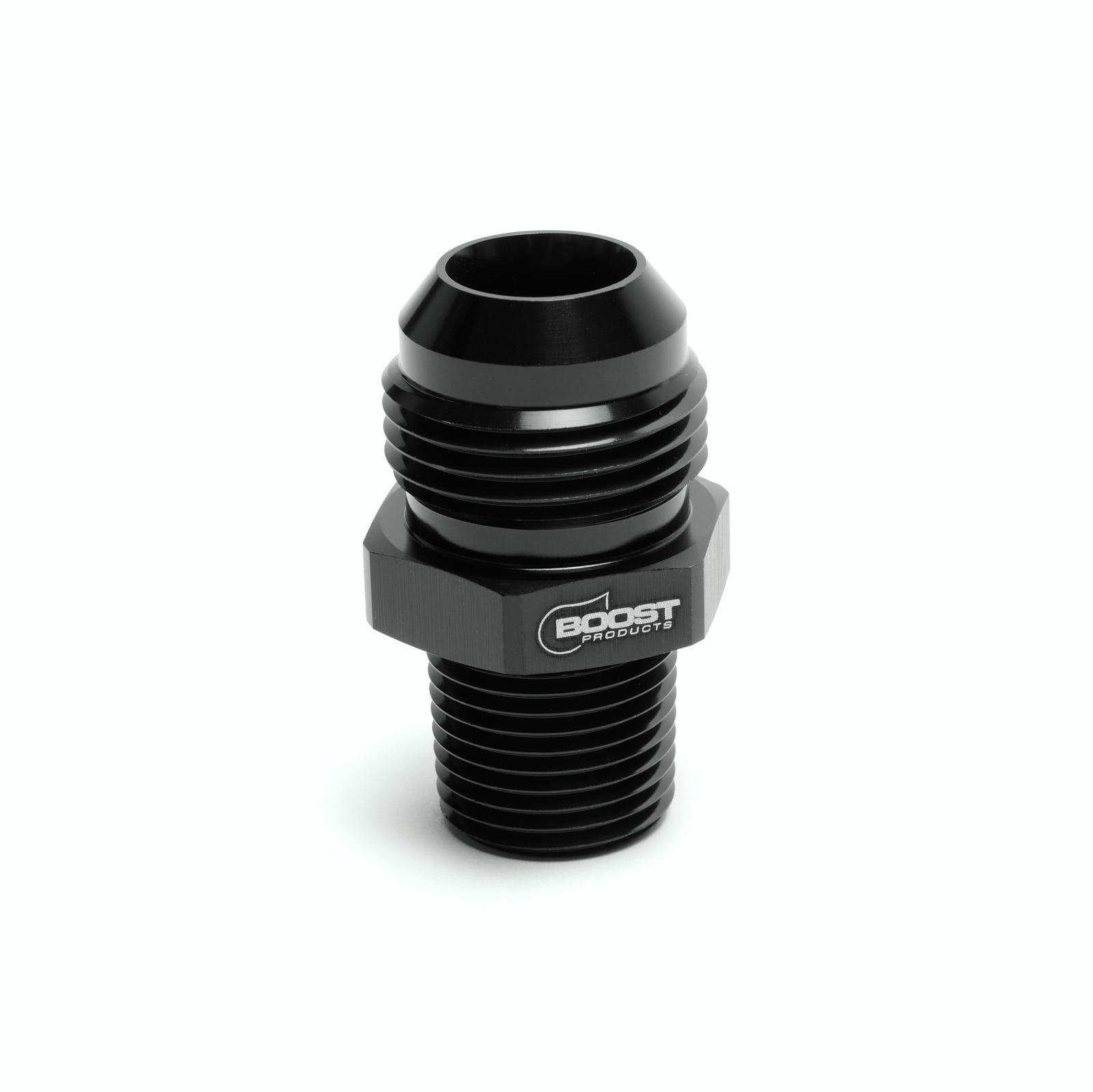

-12 AN / Dash 12 male 1/2" NPT male GA-D12N12-S GA-D12N12-B

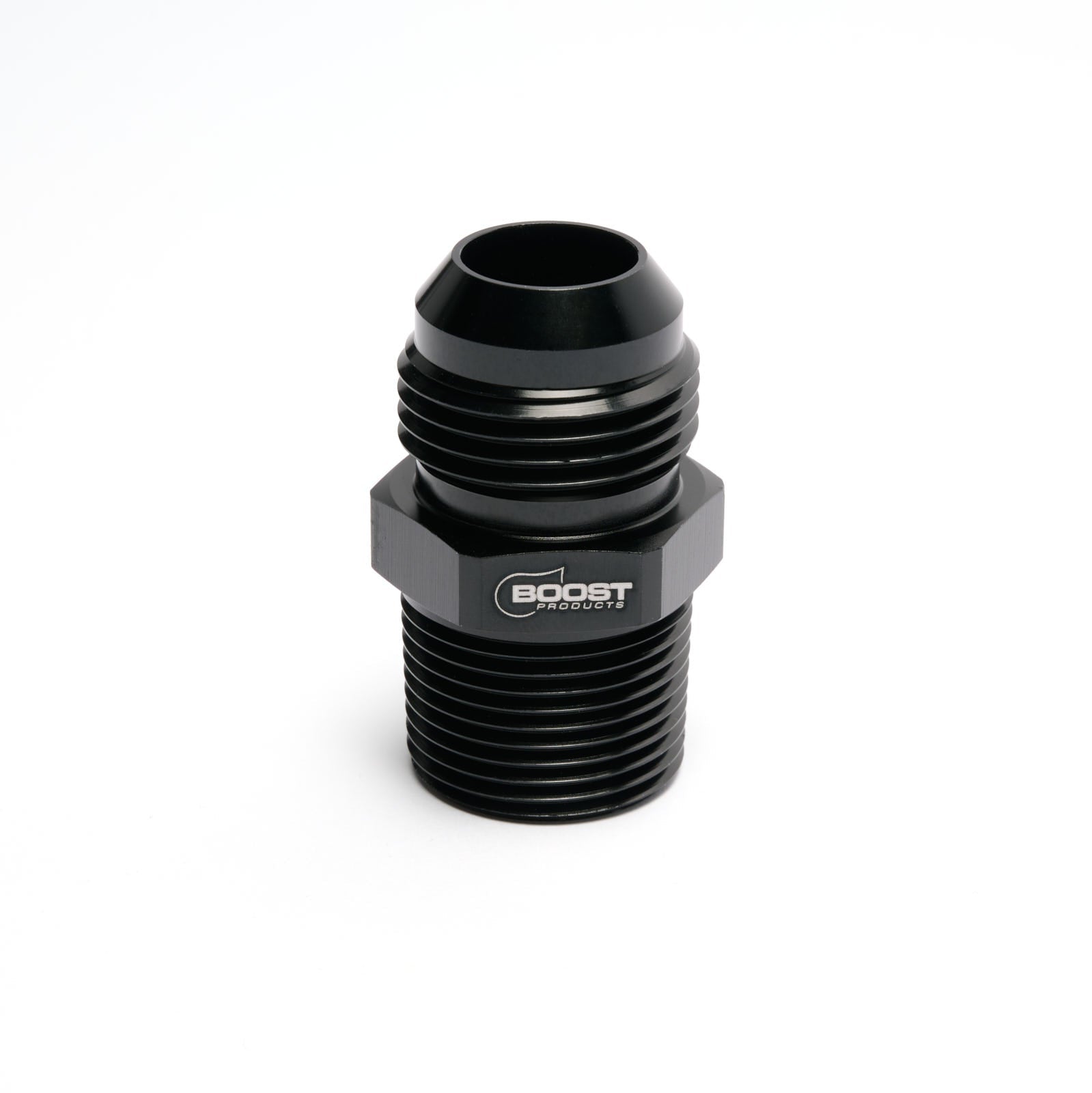

-12 AN / Dash 12 male 3/4" NPT male GA-D12N34-S GA-D12N34-B

Which AN Size Do I Need?

For turbocharger plumbing, -04 AN is the usual choice for oil feed lines and -10 AN for oil return lines. For fuel, water and other lines, match the adapter to the existing ports and to the component manufacturer's recommendation.

Frequently Asked Questions

What is the difference between AN and NPT threads?

An AN fitting seals on a 37° flare, metal to metal. Its straight thread only pulls the two flares together. An NPT thread is tapered and seals on the threads themselves. This adapter lets you connect one system to the other.

Do I need thread sealant?

On the NPT side, yes. Use a sealant that is compatible with your fluid and keep it off the first thread so nothing ends up inside the line. On the AN flare side, no. The flare seals dry, and sealant can keep it from seating.

Are these adapters safe for E85 and methanol?

Yes. BOOST Products fittings and adapters are resistant to E85 and methanol and are also suitable for fuel, oil, water and air.

How do I identify my AN size?

The dash number is the tube outer diameter in sixteenths of an inch, so -06 AN corresponds to a 3/8" tube. The thread sizes are 7/16"-20 for -04 AN, 9/16"-18 for -06 AN, 7/8"-14 for -10 AN and 1 1/16"-12 for -12 AN.
