Thread Adapter -AN Male to NPT Male - 90°

Thread Adapter -AN Male to NPT Male - 90°

BOOST Products USA

Part #
GA-9D4N18-B
UPC #
4250815849615

Black Friday Sale On All November Long! No Code Needed!

Regular price $9.39 USD
Regular price $9.39 USD Sale price $9.39 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Product Description

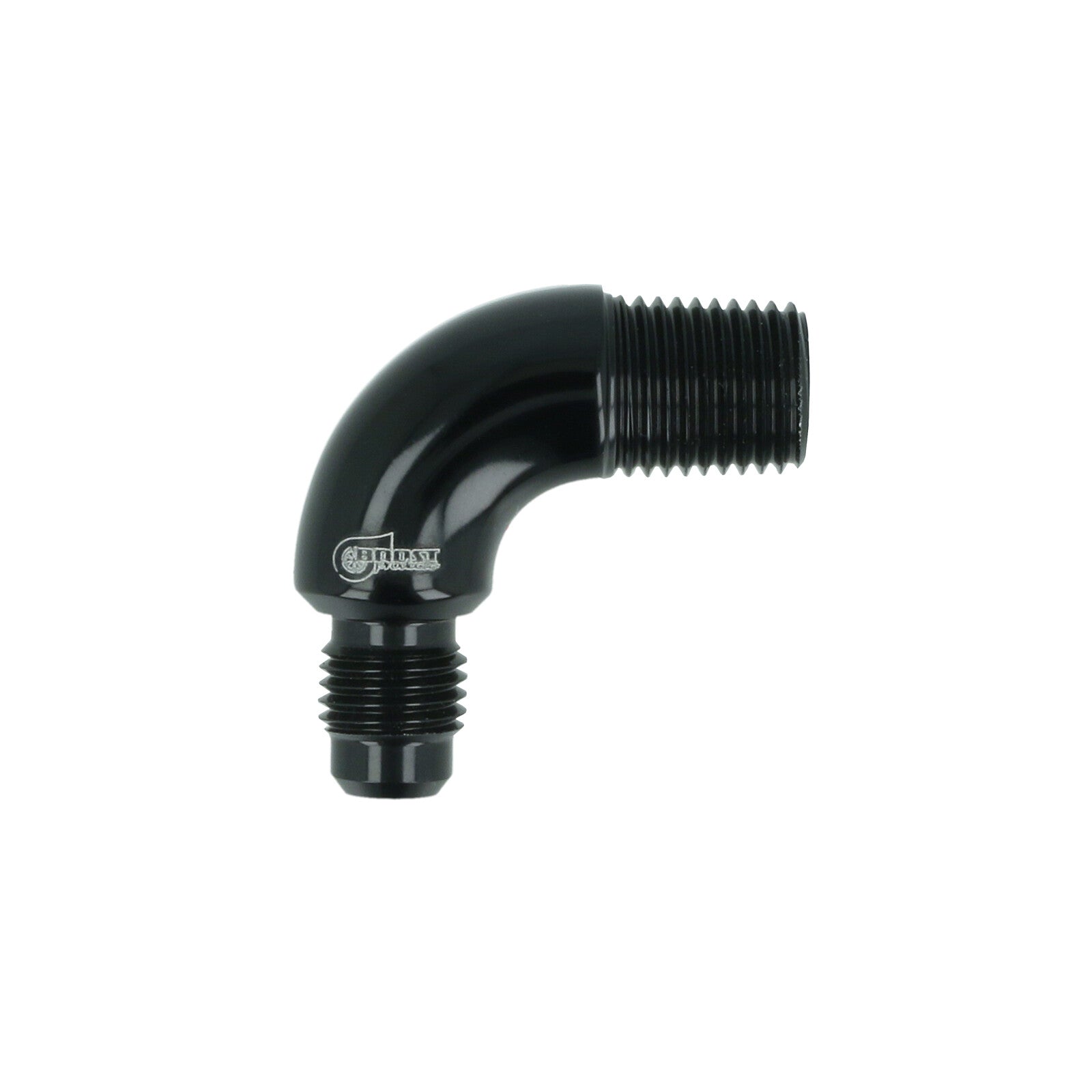

Thread Adapter -AN Male to NPT Male 90°

The Thread Adapter -AN Male to NPT Male 90° is CNC machined from 6061-T6 aluminum and conforms to AN and JIC specifications. Like all BOOST Products fittings and adapters it is suitable for oil, water and fuel lines and resistant to E85 and methanol.

Key Features

  • CNC machined from 6061-T6 aluminum
  • Conforms to AN and JIC specifications
  • Suitable for fuel, E85, methanol, oil, water and pneumatic lines
  • Angle: 90°
  • Finish: black or silver

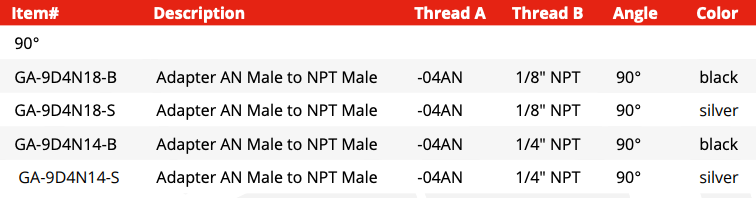

Available Sizes

Variant Part No. black Part No. silver

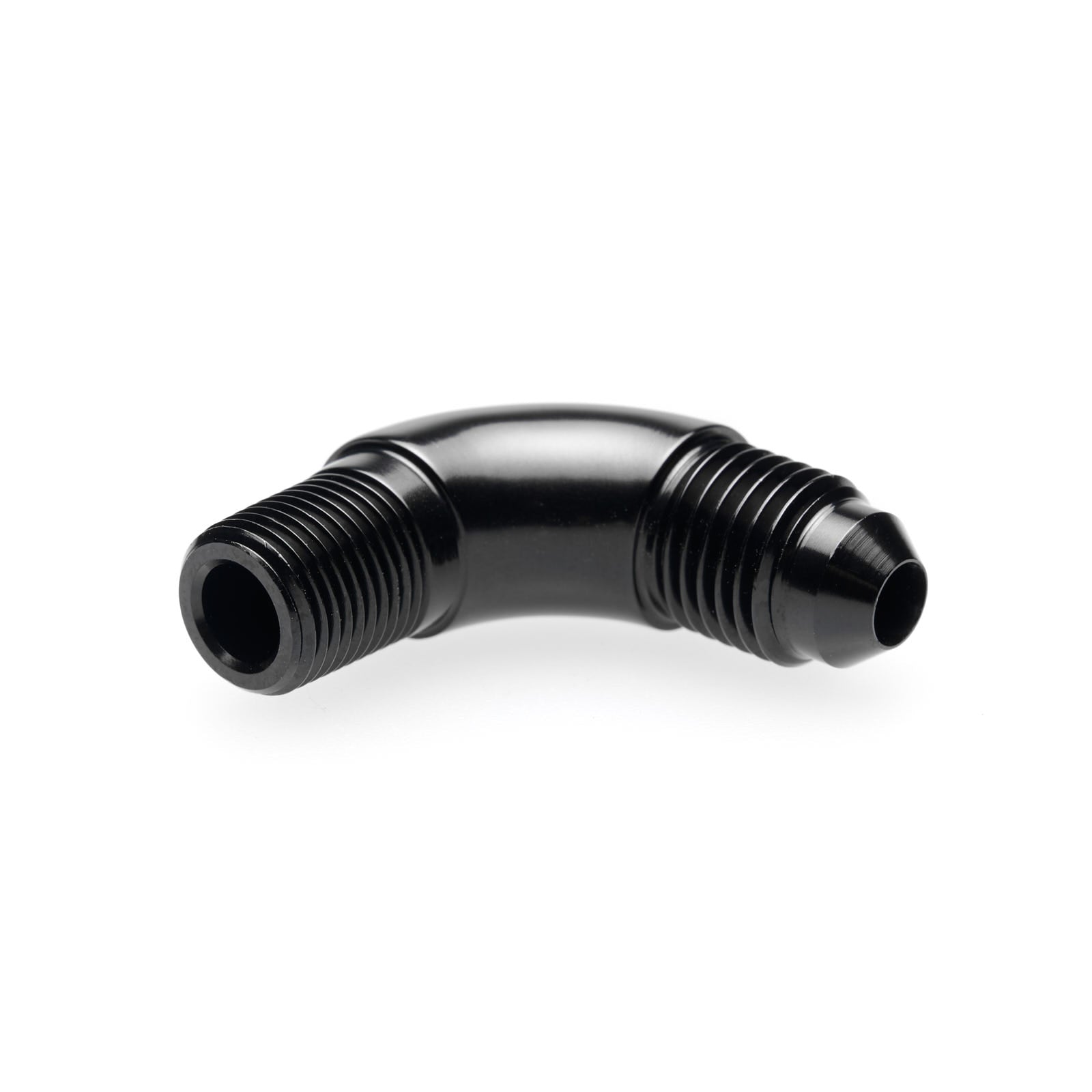

-04 AN male to 1/8" NPT male - 90 degree GA-9D4N18-B GA-9D4N18-S

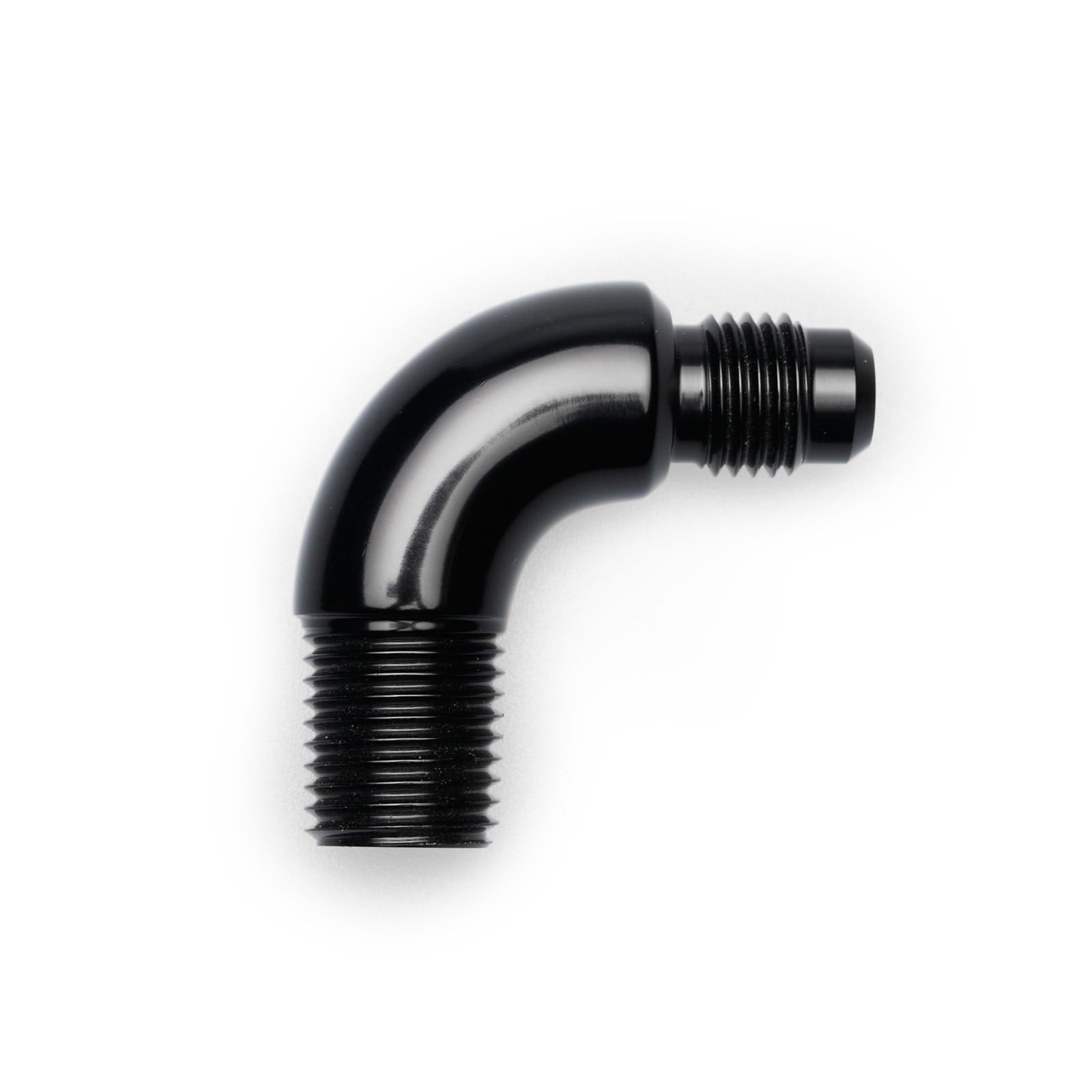

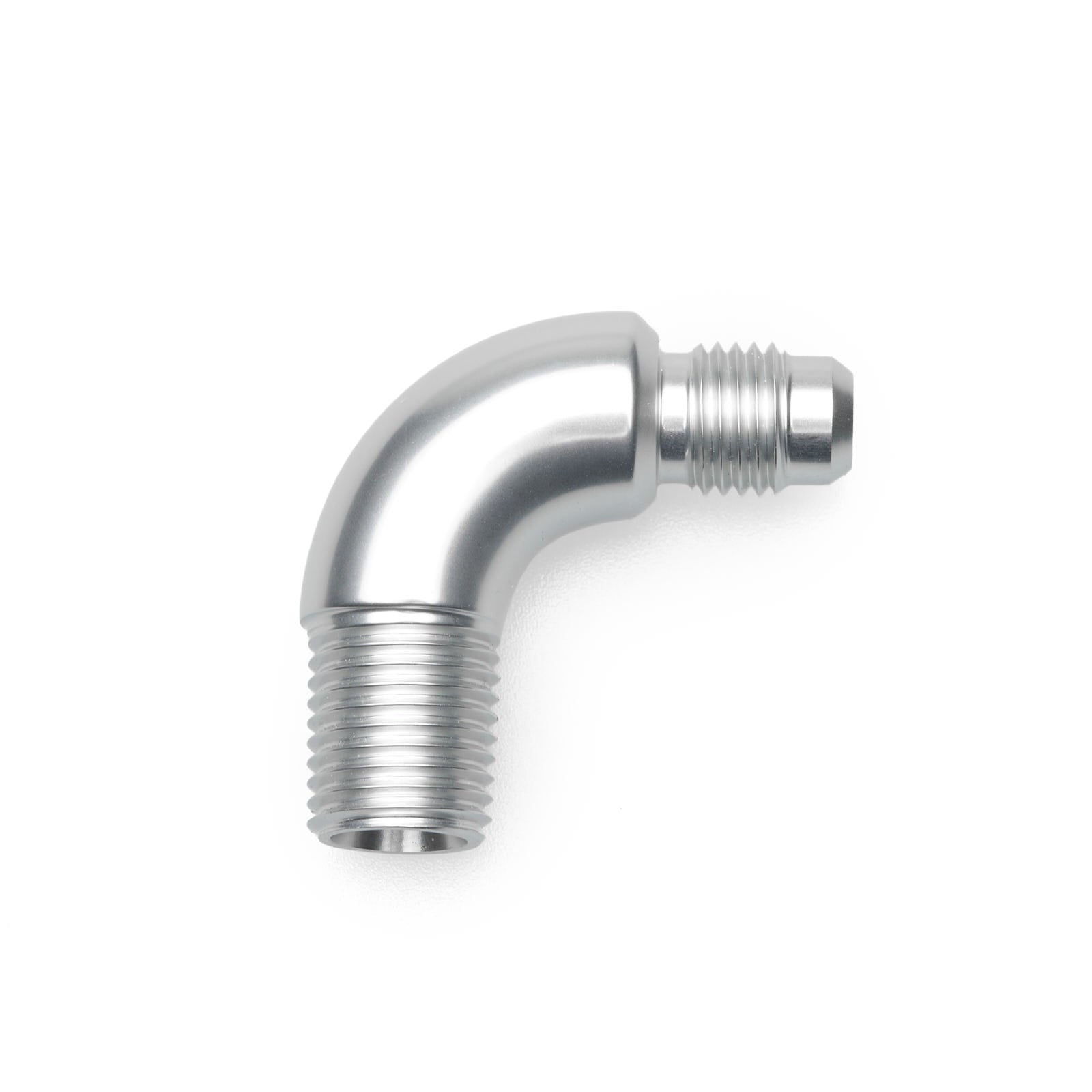

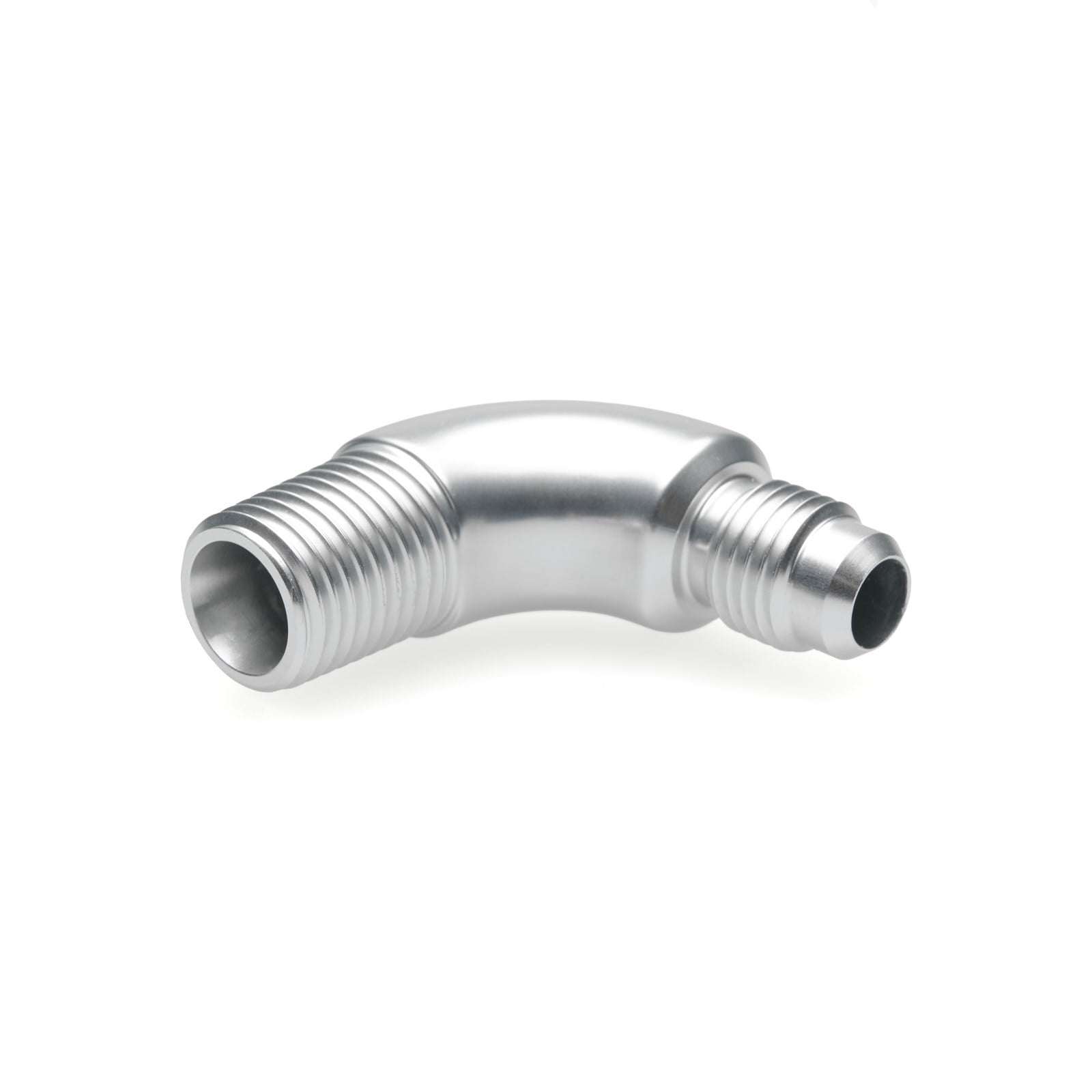

-04 AN male to 1/4" NPT male - 90 degree GA-9D4N14-B GA-9D4N14-S

Frequently Asked Questions

How do I identify my AN size?

The dash number is the tube outer diameter in sixteenths of an inch, so -06 AN corresponds to a 3/8" tube. The thread sizes are 7/16"-20 for -04 AN, 9/16"-18 for -06 AN, 3/4"-16 for -08 AN, 7/8"-14 for -10 AN and 1 1/16"-12 for -12 AN.

Do I need thread sealant?

On an NPT thread, yes. Use a sealant that is compatible with your fluid and keep it off the first thread so nothing ends up inside the line. On an AN flare, no. The flare seals dry, and sealant can keep it from seating.

Is it safe for E85 and methanol?

Yes. BOOST Products fittings and adapters are resistant to E85 and methanol and are also suitable for fuel, oil, water and air.
