Thread Adapter ORB Female to Metric Male

Thread Adapter ORB Female to Metric Male

BOOST Products USA

Part #
GA-O6MM16-B
UPC #
4250815849226

Black Friday Sale On All November Long! No Code Needed!

Regular price $4.78 USD
Regular price $4.78 USD Sale price $4.78 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Product Description

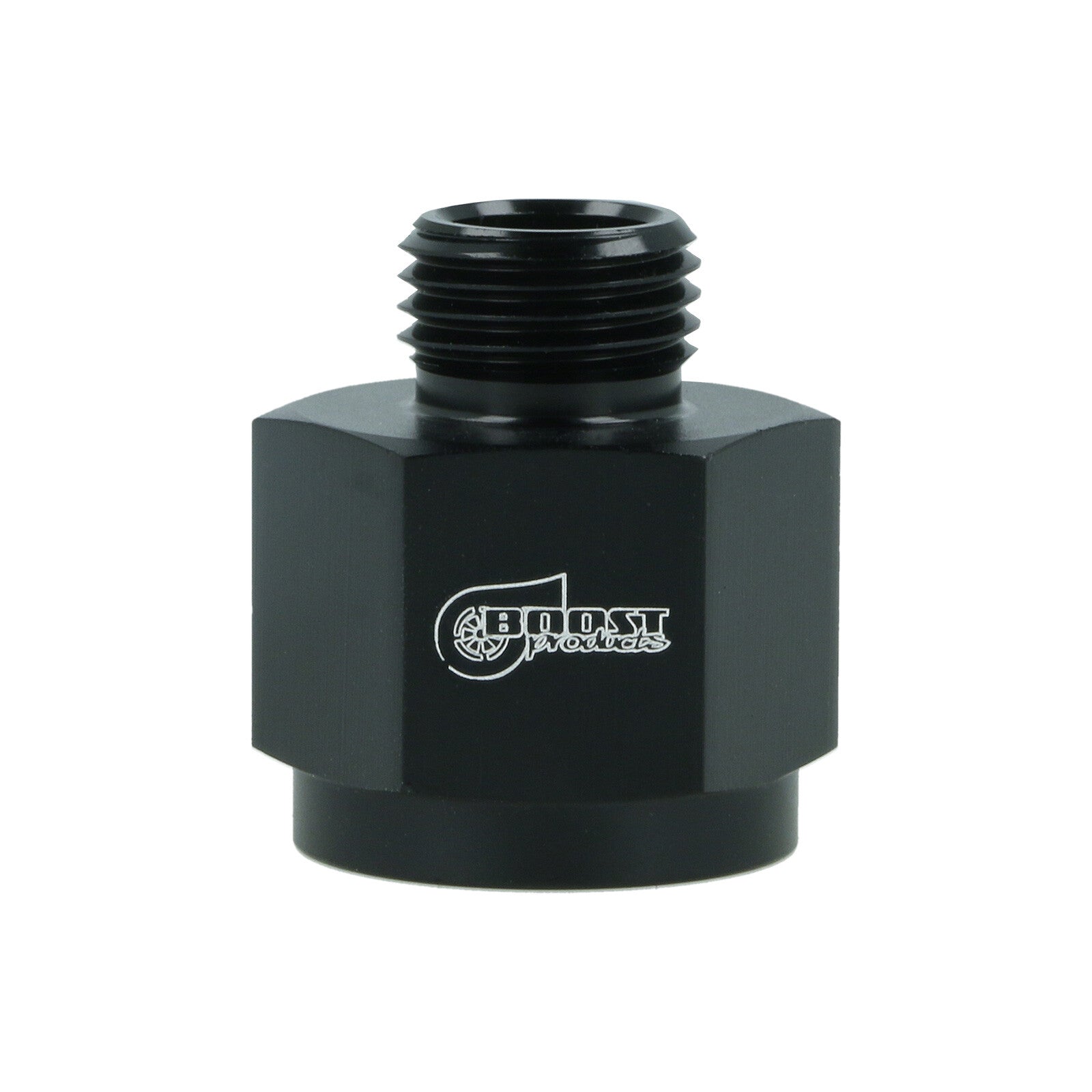

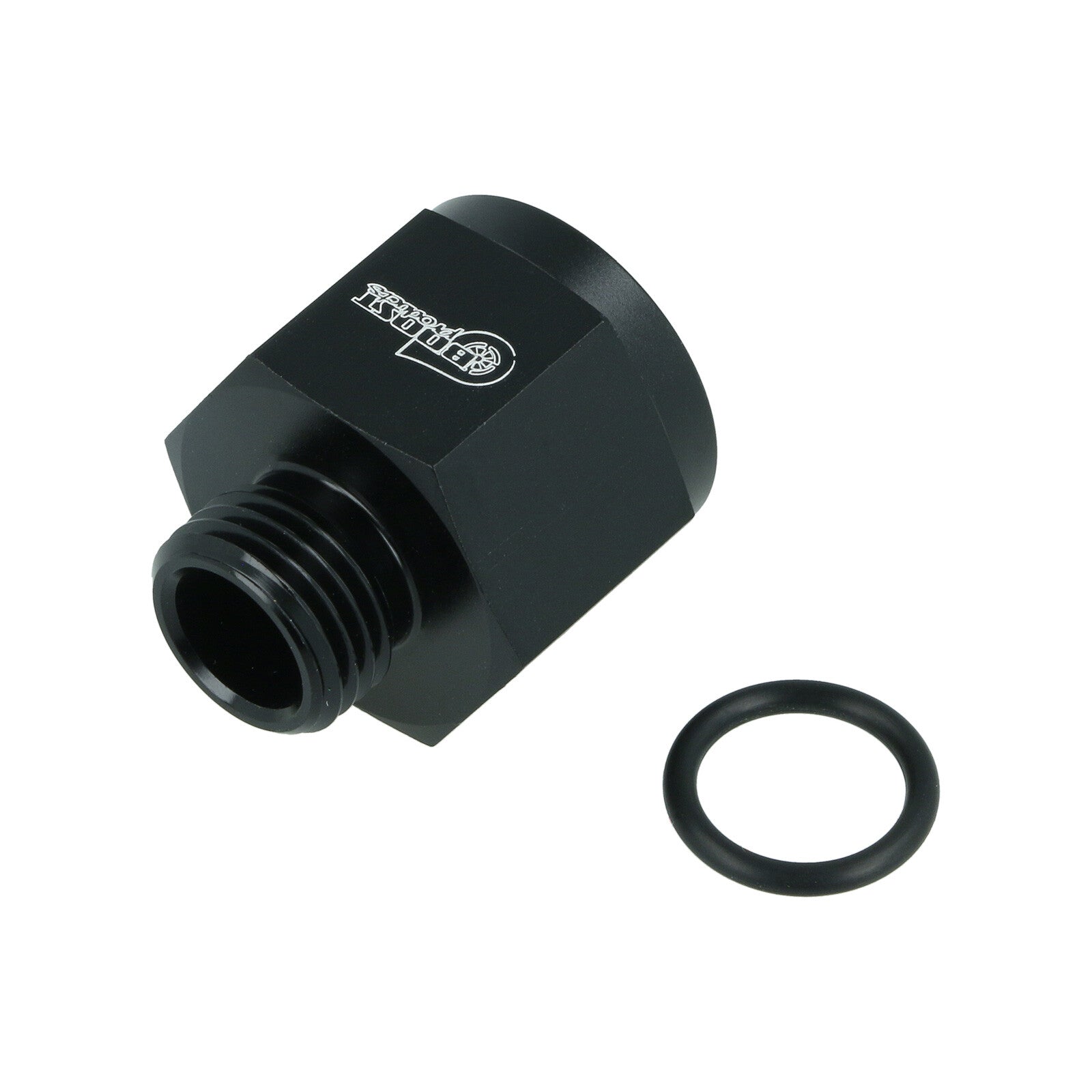

Thread Adapter ORB Female to Metric Male

The Thread Adapter ORB Female to Metric Male is CNC machined from 6061-T6 aluminum and conforms to AN and JIC specifications. Like all BOOST Products fittings and adapters it is suitable for oil, water and fuel lines and resistant to E85 and methanol.

Key Features

  • CNC machined from 6061-T6 aluminum
  • Conforms to AN and JIC specifications
  • Suitable for fuel, E85, methanol, oil, water and pneumatic lines
  • Finish: satin black

Available Sizes

Variant Part No. black

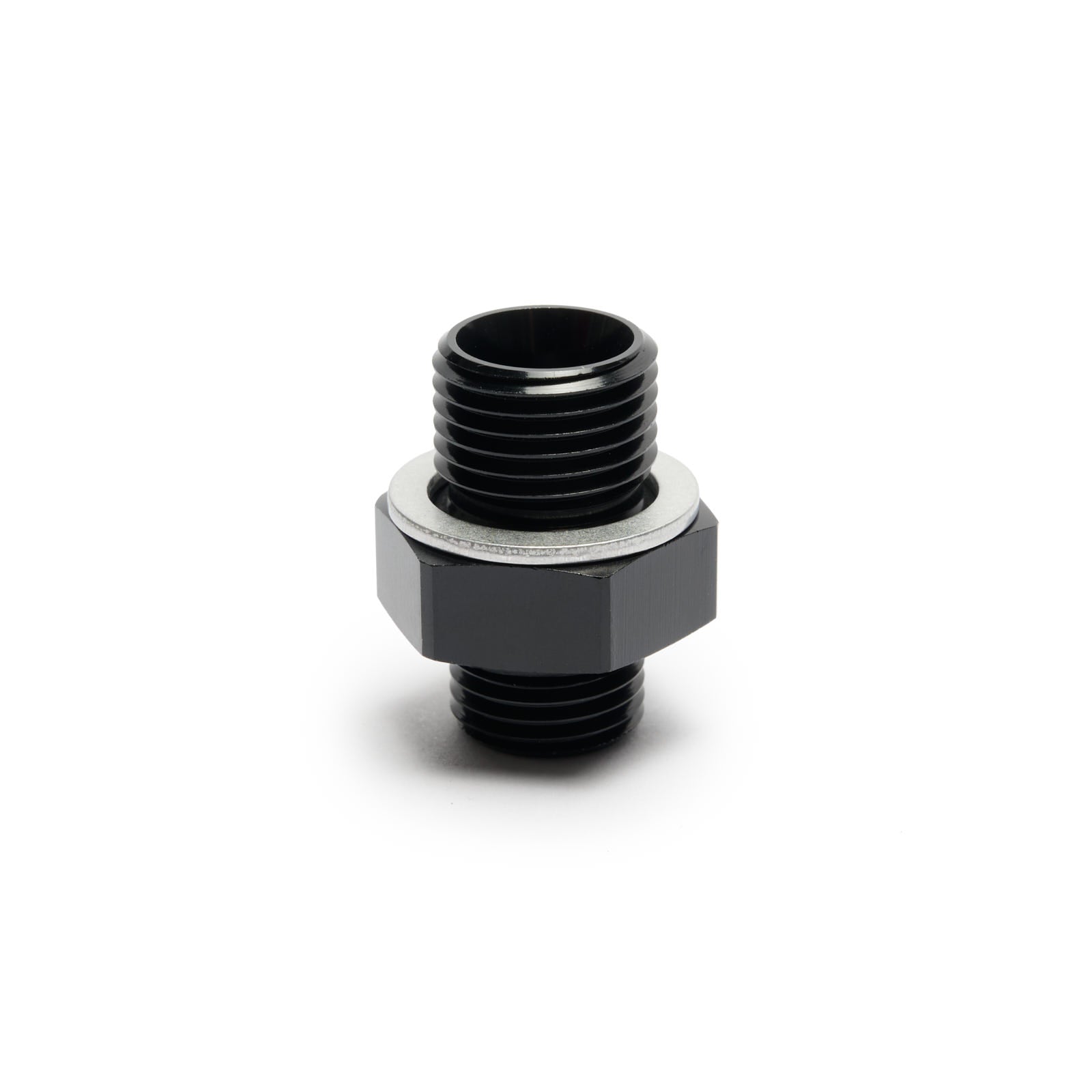

-06 AN male to M16x1.5mm male GA-O6MM16-B
-06 AN female to M18x1.5mm male GA-O6FM18-B

Frequently Asked Questions

What does ORB mean?

ORB stands for O-ring boss. It is a straight thread that seals with an O-ring, not on the threads themselves.

How do I identify my AN size?

The dash number is the tube outer diameter in sixteenths of an inch, so -06 AN corresponds to a 3/8" tube. The thread sizes are 7/16"-20 for -04 AN, 9/16"-18 for -06 AN, 3/4"-16 for -08 AN, 7/8"-14 for -10 AN and 1 1/16"-12 for -12 AN.

Which AN size do I need for turbo oil lines?

For turbocharger plumbing, -04 AN is the usual choice for oil feed lines and -10 AN for oil return lines. For fuel, water and other lines, match the fitting to the existing ports and to the component manufacturer's recommendation.

Is it safe for E85 and methanol?

Yes. BOOST Products fittings and adapters are resistant to E85 and methanol and are also suitable for fuel, oil, water and air.
