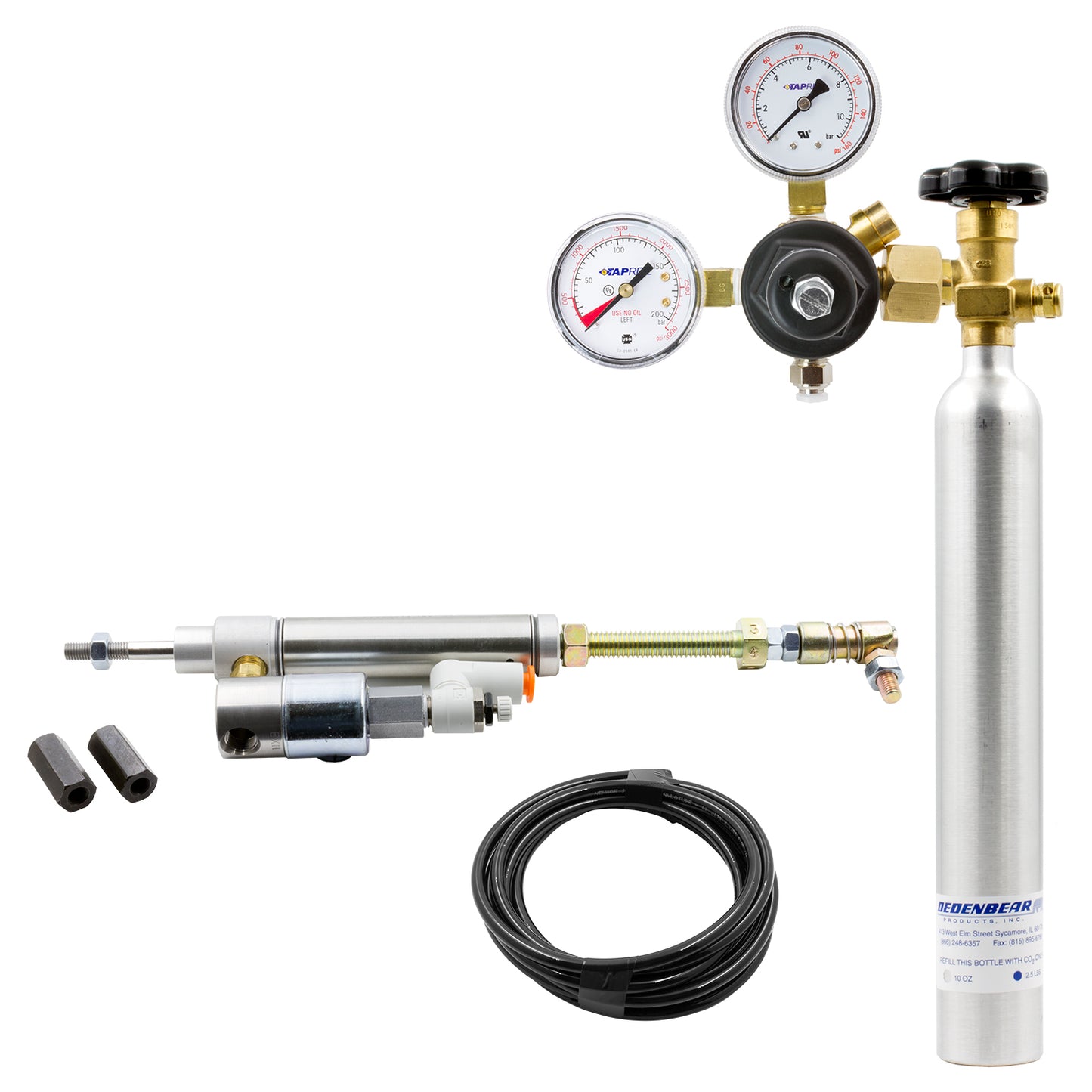

Dedenbear THROTTLE STOP KIT LINKAGE STYLE EASY ADJUST INCLUDES AB10K BOTTLE KIT TS15K

The Dedenbear Ts15K Combines The Ts15 Linkage Style Stop, With Inverted Mounting To Allow For Easier Access To The Adjustment Bolt, Together With The Ab10K Co2 Bottle Kit In One Tidy Package To Ensure Youve Got What You Need To Install And Operate The Stop In Your Vehicle. This Stop Is Perfect For Racers That Make Frequent Adjustments To Their Throttle Stop Position On Carb Or Tbi Applications. The 3/4 Inch Bore And 2 Inch Stroke Work Well With Single Carb Or Throttle Body Injectors. Chromoly Adjustment Bolts Ensure Maximum Durability. All Dedenbear Linkage Style Throttle Stops Come With A Needle Valve To Control The Opening Rate Of The Stop, Quick Disconnect Fittings, Stainless Steel Solenoid & Cylinder, High Temperature Seals And Plated Steel Parts For Corrosion Resistance.

• Linkage Stop: 3/4 in. bore, 2 in. Stroke.
• Adjustable needle valve allows precise and quick control of the opening rate of the stop.
• Adapters for 10-32 and 1/4-28 threaded throttle cables and linkages included as standard.
• 1/4 in. Quick Disconnect CO2 fitting
• Inverted design allows for easier adjustment access
• Includes 10 oz. CO2 bottle, valve, dual gauge adjustable pressure regulator, and 10 feet of 1/4 inch nylon air line.
• Bottle measures 16.5 inches tall and 2 inches in diameter.

Attributes:

• GTIN: 00046074165092
• Brand Name: Dedenbear
• Add-On: L1;L2;CC3;TSC2A;TS20K;TS25K;TS30K;TS40K;2163;BEX-5000;2159;2172;2183

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 15.25 x 5 inches
• Weight: 7.5 lb
