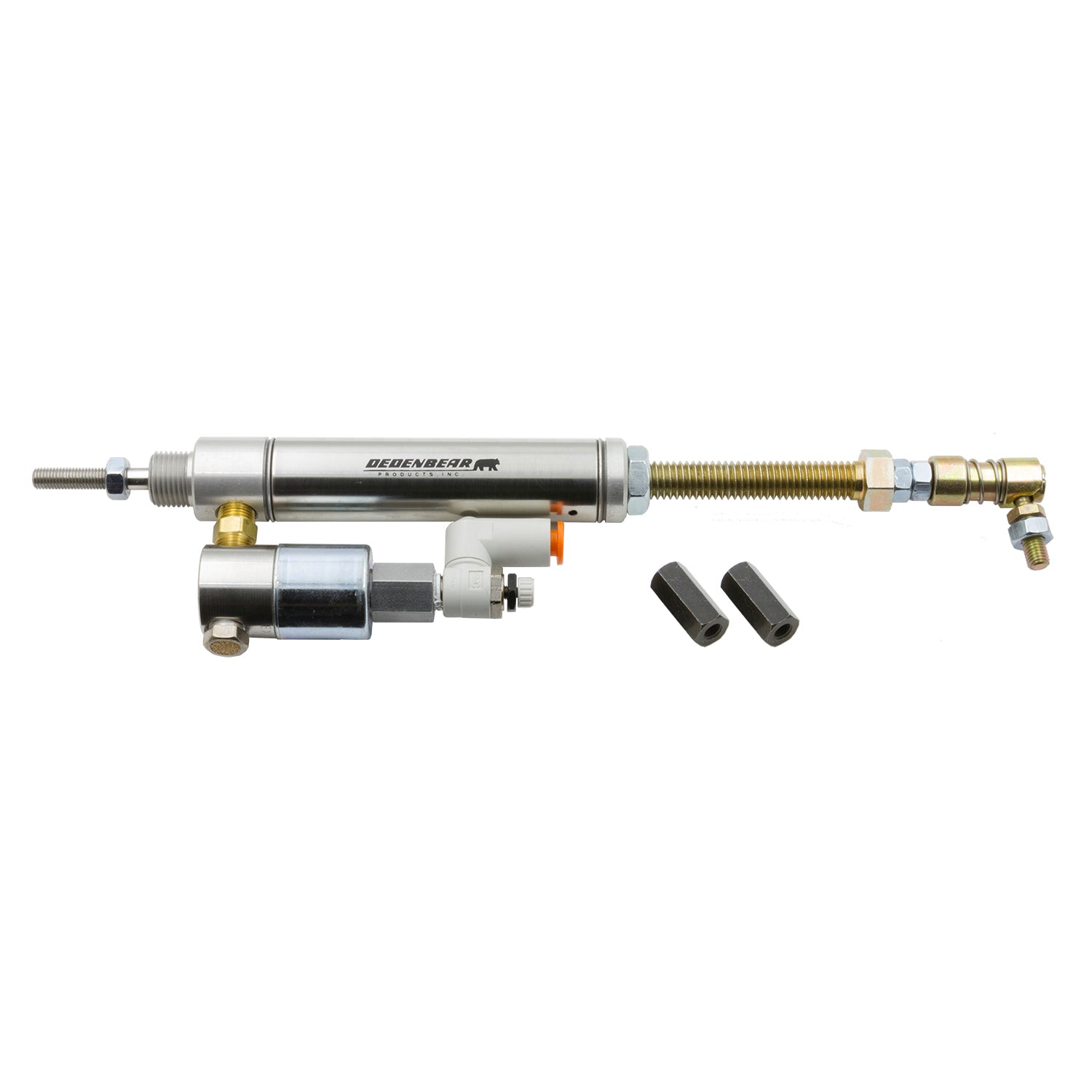

Dedenbear THROTTLE STOP LINKAGE STYLE CO2 LONG STROKE BIG BORE EASY ADJUST TS25

The Dedenbear Ts25 Builds Upon The Design Of The Popular Ts20 Inverting The Mounting To Allow Easier Access To The Adjustment Bolt, Making This The Perfect Linkage Stop Selection For Racers Making Frequent Changes To Their Stop Position On Dual Carb And Bird Catcher Style Injected Applications. The Large 7/8 Inch Bore And 2.5 Inch Stroke Cylinder Used In This Assembly Make It The Ideal Choice For Starting Line Control. Chromoly Adjustment Bolts Ensure Maximum Durability. All Dedenbear Linkage Style Throttle Stops Come With A Needle Valve To Control The Opening Rate Of The Stop, Quick Disconnect Fittings, Stainless Steel Solenoid & Cylinder, High Temperature Seals And Plated Steel Parts For Corrosion Resistance.

• Linkage Stop: 7/8 in. bore, 2.5 in. Stroke.
• Adjustable needle valve allows precise and quick control of the opening rate of the stop.
• Adapters for 10-32 and 1/4-28 threaded throttle cables and linkages included as standard.
• 1/4 in. Quick Disconnect CO2 fitting

Attributes:

• GTIN: 00046074165184
• Brand Name: Dedenbear
• Add-On: AB10K;L1;L2;CC3;TSC2A;TS25K;TS30;TS40;2163;BEX-5000;2159;2172;2183

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 12 x 4 inches
• Weight: 2.5 lb
