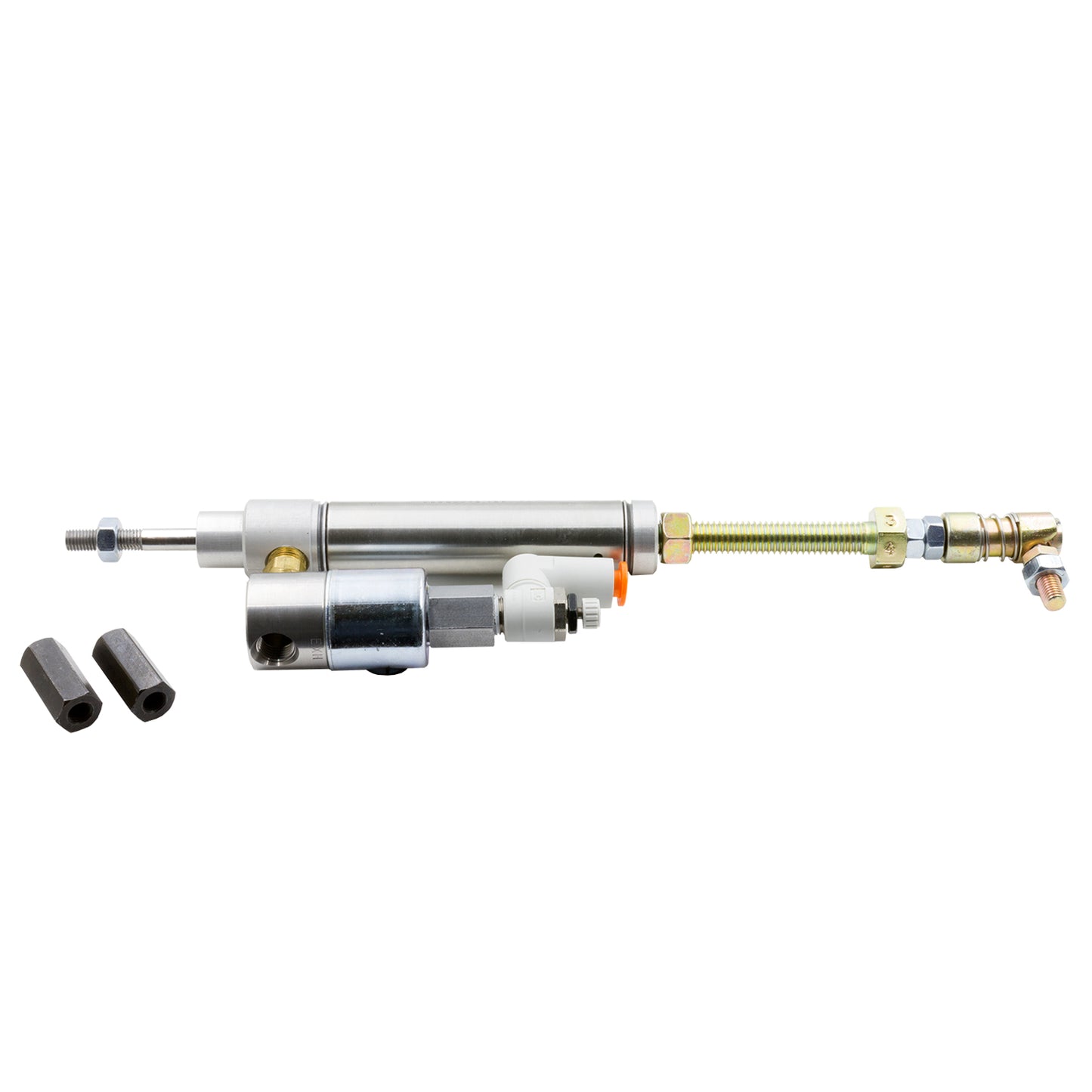

Dedenbear THROTTLE STOP LINKAGE STYLE CO2 UNIVERSAL EASY ADJUST TS15

The Dedenbear TS15 builds upon the design of the popular TS10 model, inverting the mounting to allow for easier access to the adjustment bolt. This stop is perfect for racers that make frequent adjustments to their throttle stop position on carb or TBI applications. The 3/4 inch bore and 2 inch stroke work well with single carb or throttle body injectors. Chromoly adjustment bolts ensure maximum durability. All Dedenbear linkage style throttle stops come with a needle valve to control the opening rate of the stop, quick disconnect fittings, stainless steel solenoid & cylinder, high temperature seals and plated steel parts for corrosion resistance.

• Linkage Stop: 3/4 in. bore, 2 in. Stroke.
• Adjustable needle valve allows precise and quick control of the opening rate of the stop.
• Adapters for 10-32 and 1/4-28 threaded throttle cables and linkages included as standard.
• 1/4 in. Quick Disconnect CO2 fitting

Attributes:

• GTIN: 00046074165085
• Brand Name: Dedenbear
• Add-On: AB10K;L1;L2;CC3;TSC2A;TS15K;TS20K;TS25K;TS30K;TS40K;2163;BEX-5000;2159;2172;2183

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 12 x 4 inches
• Weight: 2.5 lb
