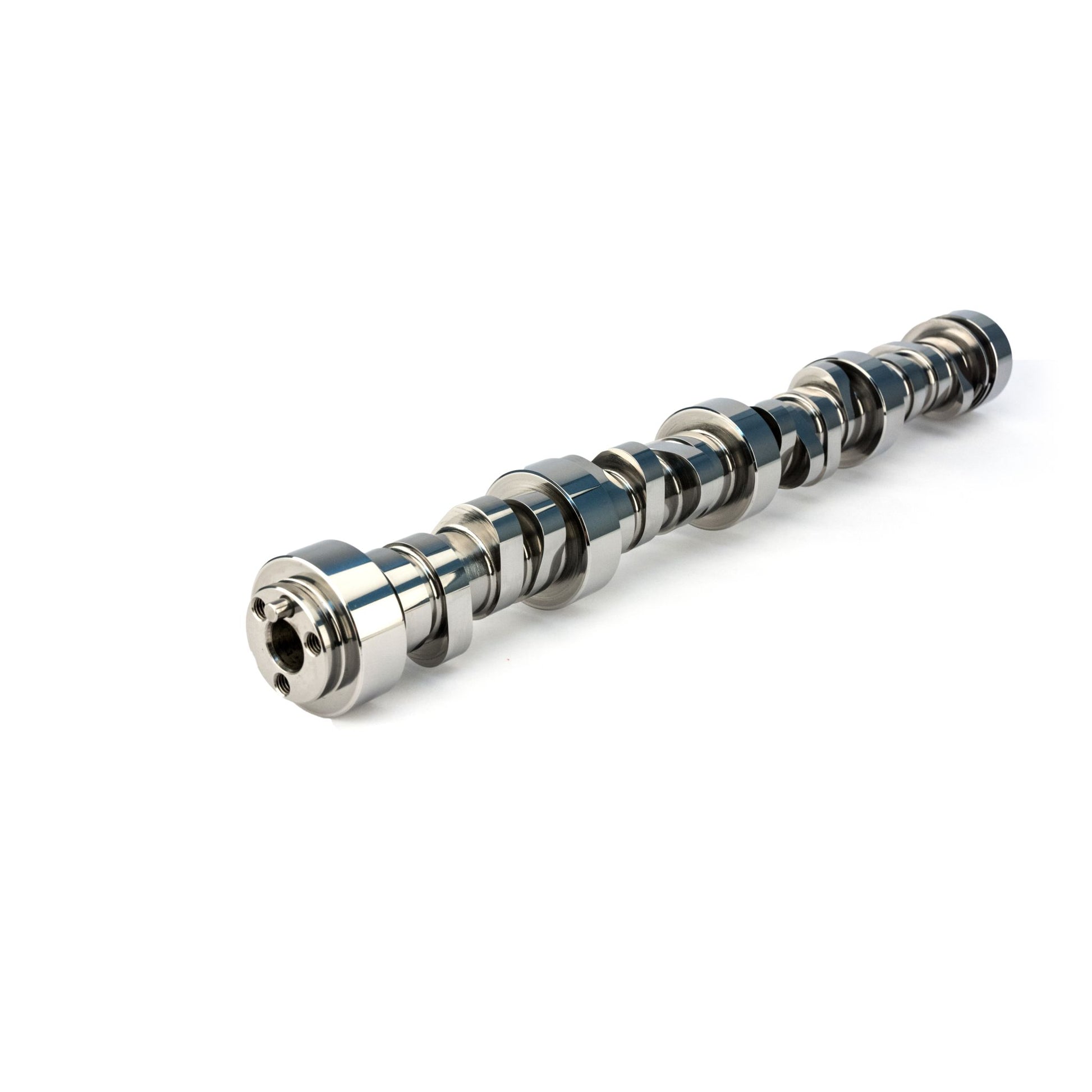

COMP Cams Thumpr 219/233 Hydraulic Roller Cam for GM LS GEN III/IV COMP-54-600-11

Attributes:

• GTIN: 00036584195160
• Brand Name: COMP Cams
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel
• Lifter Type: Hydraulic Roller
• Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
• Amazon ASIN: B001P265VA
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• MSE Process Video Link: https://www.youtube.com/watch?v=hTyIQxrPCCI
• Camshaft Series: Thumpr
• Cam Type: Hydraulic Roller
• Grind Number: 275THR9
• Basic Operating RPM Range: 2,000-6,400
• Intake Duration at .050 Inch Lift: 219
• Exhaust Duration at .050 inch Lift: 233
• Advertised Intake Duration: 275
• Advertised Exhaust Duration: 295
• Lobe Separation: 109
• Intake Valve Lift: 0.553
• Exhaust Valve Lift: 0.536
• Lifters Included: No
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.93 x 2.91 x 2.67 inches
• Weight: 10.2 lb
