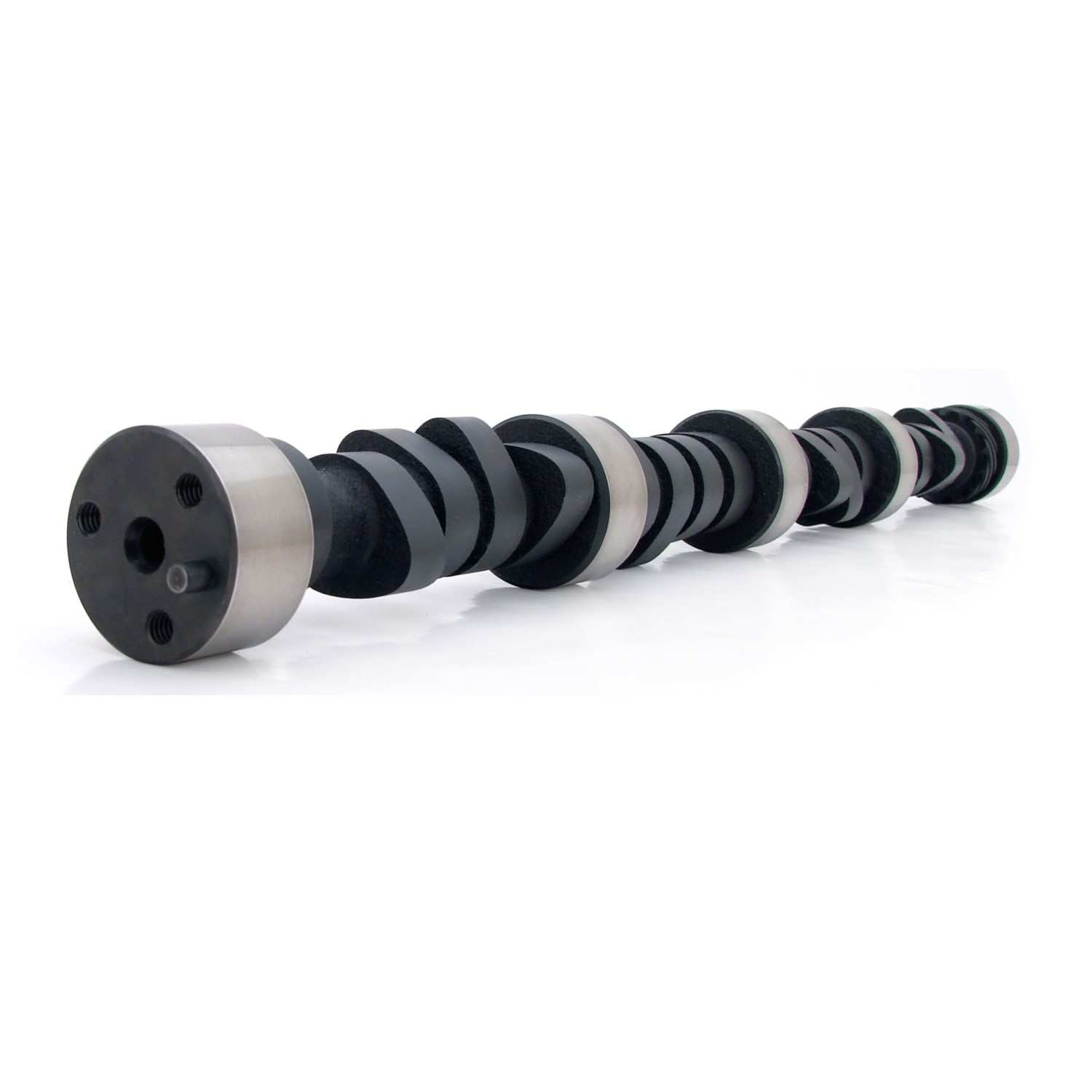

COMP Cams Thumpr NIT 243/257 Hydraulic Flat Cam for Chevrolet Big Block 396-454 COMP-11-602-20

Attributes:

• GTIN: 00036584177869
• Brand Name: COMP Cams
• Camshaft Series: Thumpr
• Usage: Street/Strip
• Cam Type: Hydraulic Flat Tappet
• Grind Number: 295TH7
• Basic Operating RPM Range: 2,300-6,200
• Intake Duration at .050 Inch Lift: 243
• Exhaust Duration at .050 inch Lift: 257
• Advertised Intake Duration: 295
• Advertised Exhaust Duration: 312
• Lobe Separation: 107
• Intake Valve Lift: 0.522
• Exhaust Valve Lift: 0.507
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Nitrided Cast Iron
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Lifter Type: Hydraulic Flat Tappet
• Amazon ASIN: B002EDX1L6
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.2 x 2.9 x 2.7 inches
• Weight: 11.1113 lb
