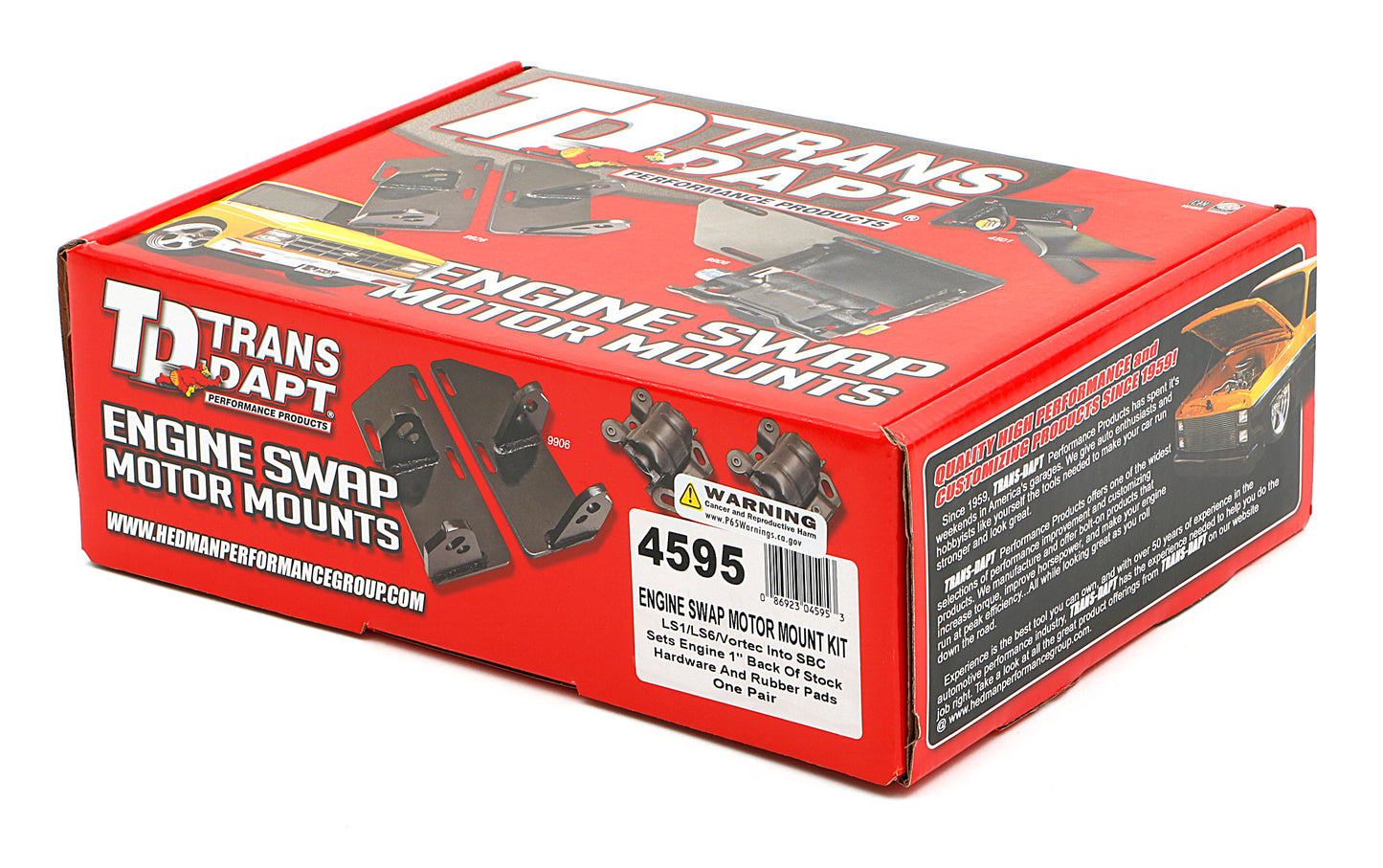

Trans-Dapt Performance Chevy Ls Series Engine Into Sb Chevy Chassis (1 In. Offset) - Mount Kit 4595

• GTIN: 00086923045953
• Brand Name: Trans-Dapt Performance
• Vehicle Family: Factory SB Chevy Chassis
• Additional Details: Sets engine 1 in. Back. Not for use with clam-shell mounts (1974 or later)
• Engine: Chevy LS Series
• Finish: Temporary Black Shipping Paint. This coating is not intended To Be Final Finish.
• Finish Type: Temporary Black Shipping Paint
• Contents: Frame Mounts, Mount Pads, Mounting Hardware
• Product Details: Chevy LS Series 4.8, 5.3, 6.0L V8 into a vehicle set up for a Chevy SB V8.
• Uses Mount Pad #: Trans-Dapt #9525 or 4238
• Bracket Finish: Black Paint
• Bracket Included: Yes
• Bushing Color: Black
• Bushing Material: Rubber
• Mounting Hardware Included: Yes
• Dampening Type: Pad
• Positions: 1 in. Back
• Wheel Drive Type: 2WD
• Kit Type: with RUBBER Pads

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

• Quantity of Each: 1
• Package UOM: PR
• Dimension: 12.000 x 4.000 x 8.500 inches
• Weight: 8.850 lb
