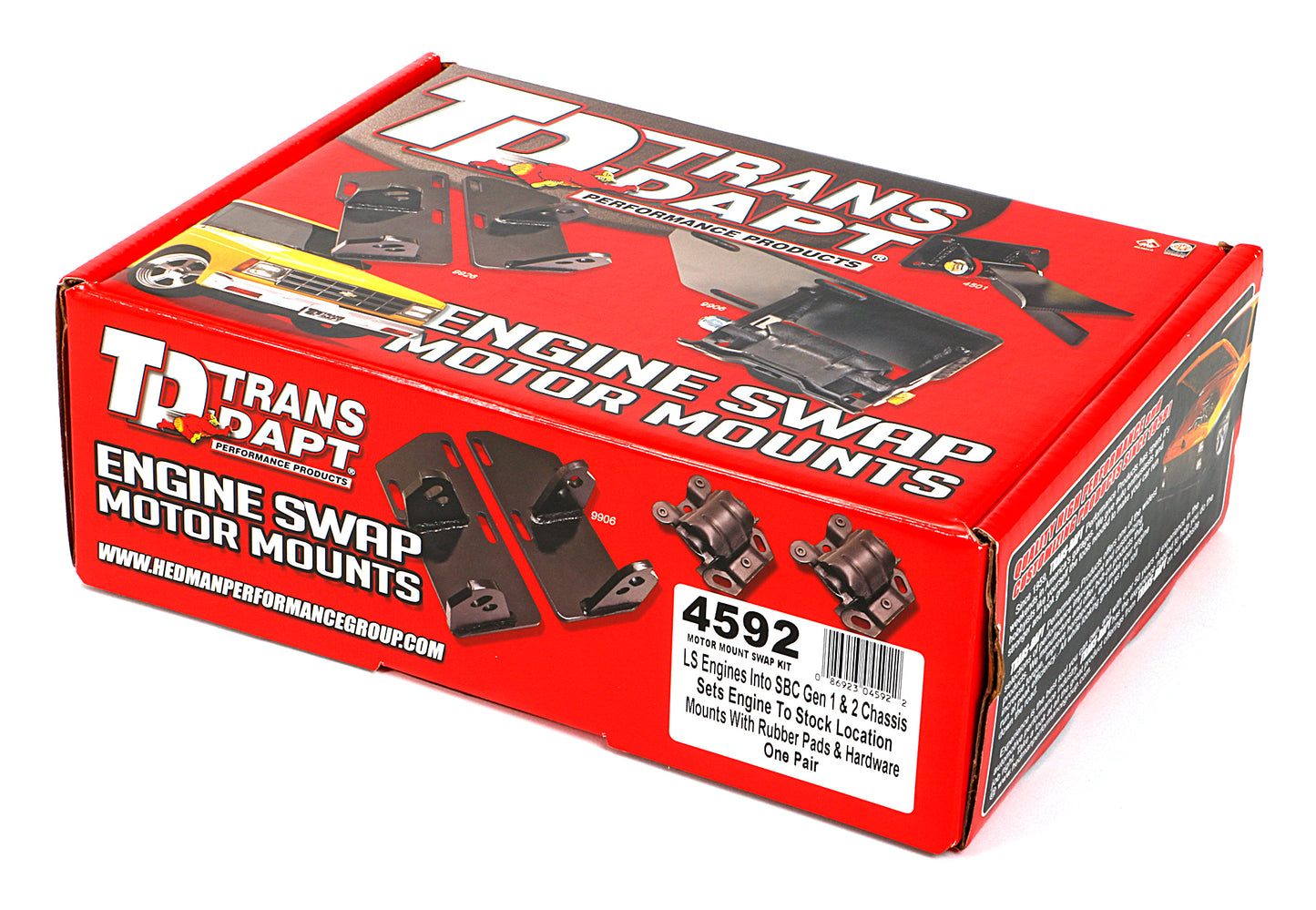

Trans-Dapt Performance Chevy Ls Series Engine Into Sb Chevy Chassis (Factory Location)- Motor Mount Kit 4592

• GTIN: 00086923045922
• Brand Name: Trans-Dapt Performance
• Contents: Frame Mount Plates, Pads and mounting hardware.
• Product Details: Chevy LS Series 4.8, 5.3, 6.0L V8 into a vehicle set up for a Chevy SB V8.
• Uses Mount Pad #: Trans-Dapt #9525 or 4238
• Bracket Finish: Black Paint
• Bracket Included: Yes
• Bushing Color: Black
• Bushing Material: Rubber
• Mounting Hardware Included: Yes
• Dampening Type: Pad
• Positions: Stock Location
• Wheel Drive Type: 2WD
• Kit Type: with RUBBER Pads
• Vehicle Family: Factory SB Chevy Chassis
• Additional Details: The engine sits in factory chassis location. Not for use with clam-shell mounts (1974 or later use part# 4572)
• Installation Notes: The use of motor mount shims may be required to lift engine off crossmember. We recommend Trans-Dapt #4125 shims. A passenger car A/C compressor is required. A truck A/C compressor will not work.
• Engine: Chevy LS Series
• Product Type: Engine Mounts
• Finish: Temporary Black Shipping Paint. This coating is not intended To Be Final Finish.
• Finish Type: Temporary Black Shipping Paint

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 12.000 x 4.000 x 8.500 inches
• Weight: 9.000 lb
