BD Diesel Transmission Stage 4 Kit - 1995-1997 Ford E4OD 4wd 1064424F

The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!

• Machined center support
• Machined intermediate piston
• Accumulator body enhanced oil flow
• Increased cooler pressure
• Increased pressure to converter
• Creates positive clutch application
• Created lube circuit for towing in overdrive

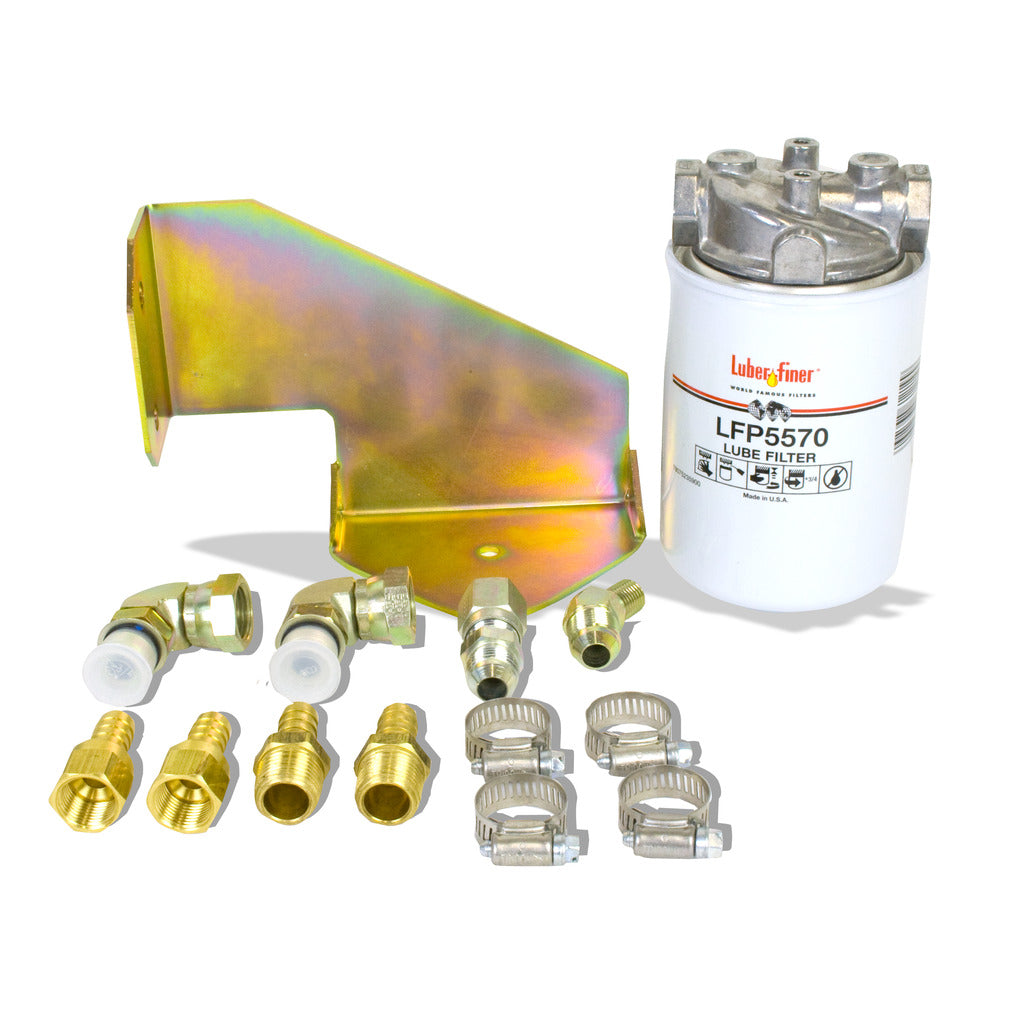

• 1990-2003 include auxiliary frame mounted full flow filter kit
• Clutch Count: COAST CLUTCH 2
• Clutch Count: FORWARD 5
• Clutch Count: DIRECT 5
• Clutch Count: LOW REVERSE 7
• Machined low/reverse pressure plate
• Clutch Count: INTERMEDIATE 4
• Clutch Count: OVERDRIVE 4
• Pan adds 6qt extra oil capacity
• Fully rollerized geartrain
• Tighter clutch packs that provide a quicker shift
• 30%-40% more clutch material with additional steels
• Improved internal lubrication by adding high power boost valves
• Reworked front pump
• Improved bearing designs
• Upgrade supports
• Machined rear ring gear hub
• Upgraded sprags
• Sure-loc snap rings
• Solenoids hard wiring providing high temperature resistance
• Increase the durability of your drivetrain
• Revised oil circuits
• Handles up to 300% more power and torque than the stock transmission
• Extra clutches and stronger internals
• BD rigid aluminum heavy duty transmission pan
• Pan reduces case flex
• Pan reduces internal oil leakage
• Added lube circuits to OD planet
• Pan heat-dissipating fins keep temperature down
• Pan magnetic drain plug
• Not warranted for Race or Sled Pull use
• Each transmission is dyno tested
• Added lube and support to output and intermediate shafts
• Replaced all aluminum planetaries with steel
• Drilled and tapped direct and intermediate feeds to prevent leaks at case
• Re-programmed accumulator body
• Full shift kit with line mod valve to increase pressures

Attributes:

• GTIN: 00019025004924
• Brand Name: BD Diesel
• Engine: 7.3L Powerstroke 94-97
• Make: Ford
• Suggested Product: 1030223

Extended Information:

• Country of Origin: Canada
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.5 x 44.5 x 27.3 inches
• Weight: 250 lb
