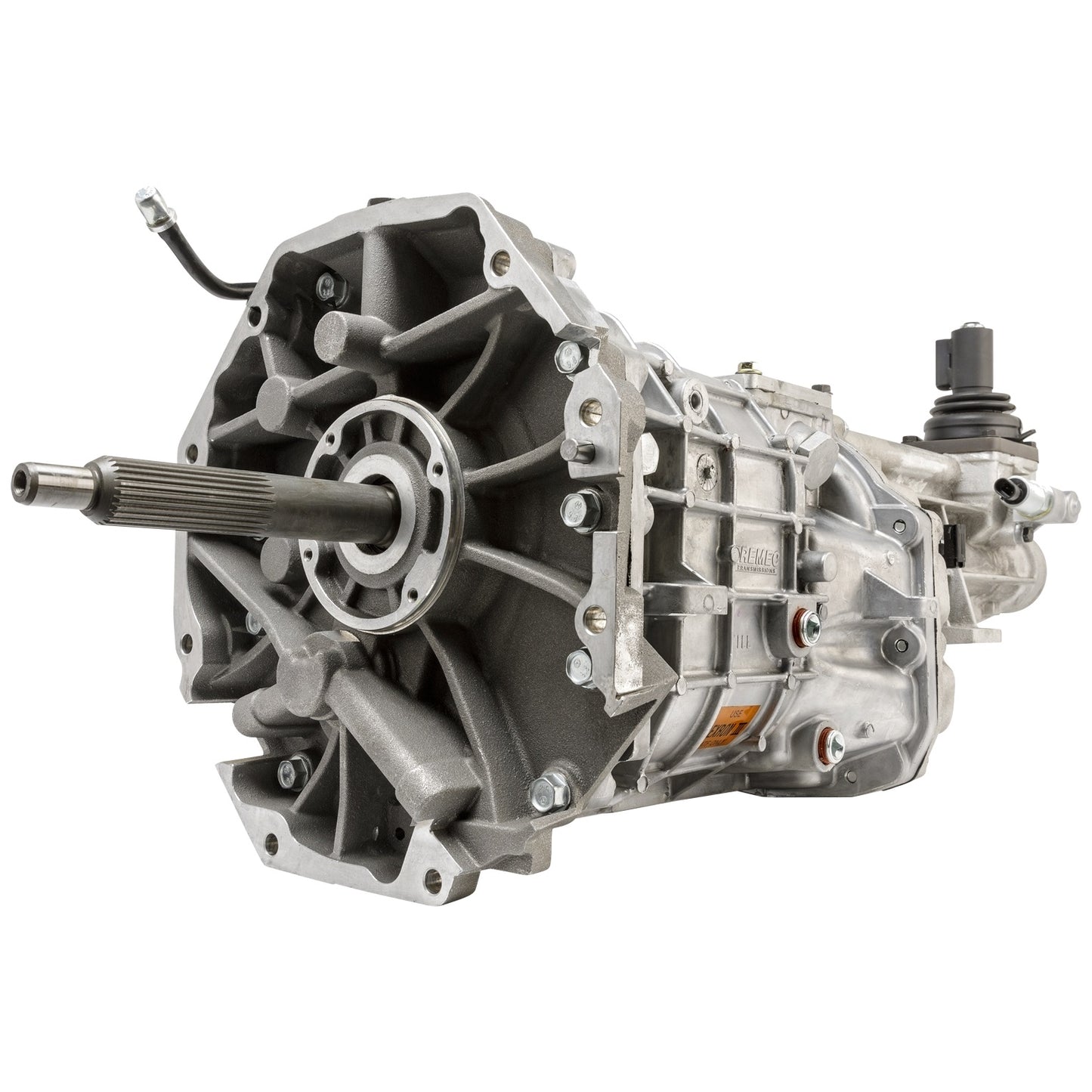

Silver Sport Transmissions Tremec Magnum XL 6 Spd Transmission TUKT 12019

Silver Sport Transmissions Tremec Magnum XL 6 Spd Transmission TUKT 12019

SILVER SPORT TRANSMISSIONS:

Part # SILVER-SPORT-TUKT-12019
UPC # 00887753806697

Regular price $4,095.00 USD
Regular price $5,009.40 USD Sale price $4,095.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

New To The Arsenal For 2012, The Magnum XL Is A Continuation Of Our Revered Magnum 6-Speed Series. Featuring All The Most Important Content From The Original Magnum, The XL Retains The Magnum's Brute Strength And Sophistication, But Ditches It'S Multiple Shifter Locations And Dual Speedo Outputs In Favour Of A New "Extended Length" Tail Section Designed To Eliminate The Clumsy "Semi-Remote" Shifter Found In Many Popular Late Model Applications. Initially Available For 2005-Up "S197" Mustangs, The Magnum XL Also Includes A SFI-Approved Steel Bellhousing, Swap Specific Crossmember And OE-Quality Mount. For Strength Purposes The Magnum XLRequires A 26-Spline Clutch And One-Piece Driveshaft.
  • Direct replacement for 2005 -Up Mustangs
  • GTIN: 00887753806697
  • Brand Name: Silver Sport Transmissions
  • Make: Ford
  • Application: 2005-2017 Ford Mustang 4.6L/5.0L
  • Transmission: Tremec T-56 Magnum XL
  • Gear Qty: 6 spd
  • Input Shaft Diameter: 1.125In.
  • Input Shaft Spline Quantity: 26
  • Output Shaft Spline Quantity: 31
  • Bellhousing Included: Yes
  • Bellhousing Material: Steel
  • Pivot Ball Included: No
  • Shifter Included: Yes
  • Torque Capacity: 700
  • Clutch Fork Included: No
  • Yoke Included: No
  • Yoke Style: Slip On
  • 1st Gear Ratio: 2.66
  • 2nd Gear Ratio: 1.78
  • 3rd Gear Ratio: 1.30
  • 4th Gear Ratio: 1.00
  • 5th Gear Ratio: 0.74
  • 6th Gear Ratio: 0.50
  • Country of Origin: Mexico
  • Emissions : Released
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 46 x 22 x 25 inches
  • Weight: 235 lb
