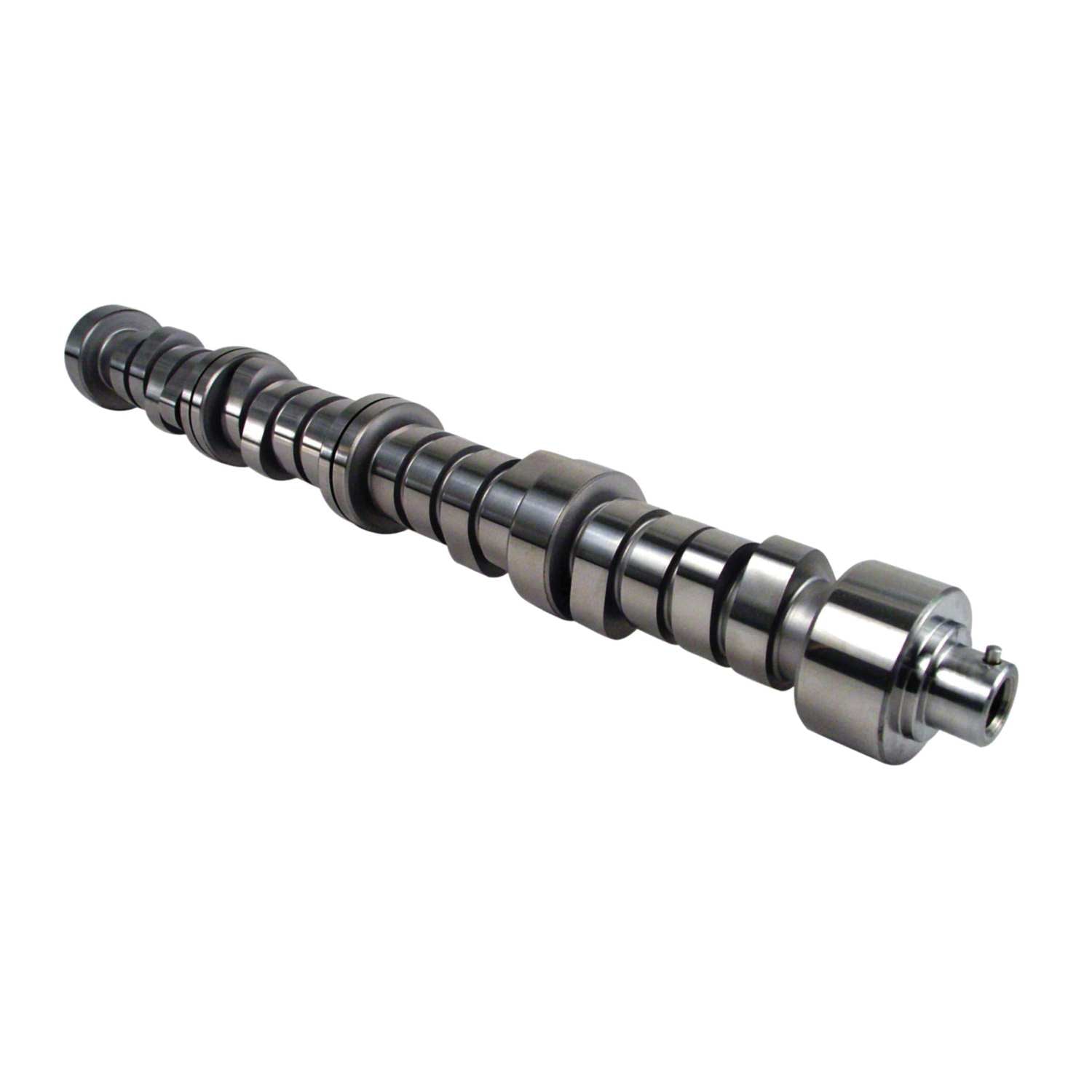

COMP Cams Tri-Power Xtreme 209/216 Solid Roller Cam for GM 6.6L Duramax Diesel COMP-132-502-12

Attributes:

• GTIN: 00036584124955
• Brand Name: COMP Cams
• Camshaft Series: Tri-Power Xtreme
• Usage: Street/Performance
• Cam Type: Solid Roller
• Grind Number: 270XD R109
• Basic Operating RPM Range: 1,800-4,600
• Intake Duration at .050 Inch Lift: 209
• Exhaust Duration at .050 inch Lift: 216
• Advertised Intake Duration: 270
• Advertised Exhaust Duration: 282
• Lobe Separation: 109
• Intake Valve Lift: 0.48
• Exhaust Valve Lift: 0.48
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Material: Billet Steel
• Engine Family: GM 6600/6.6L Duramax Diesel (2000+)
• Lifter Type: Solid Roller
• Amazon ASIN: B001GFU9T0
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 14.98 lb
