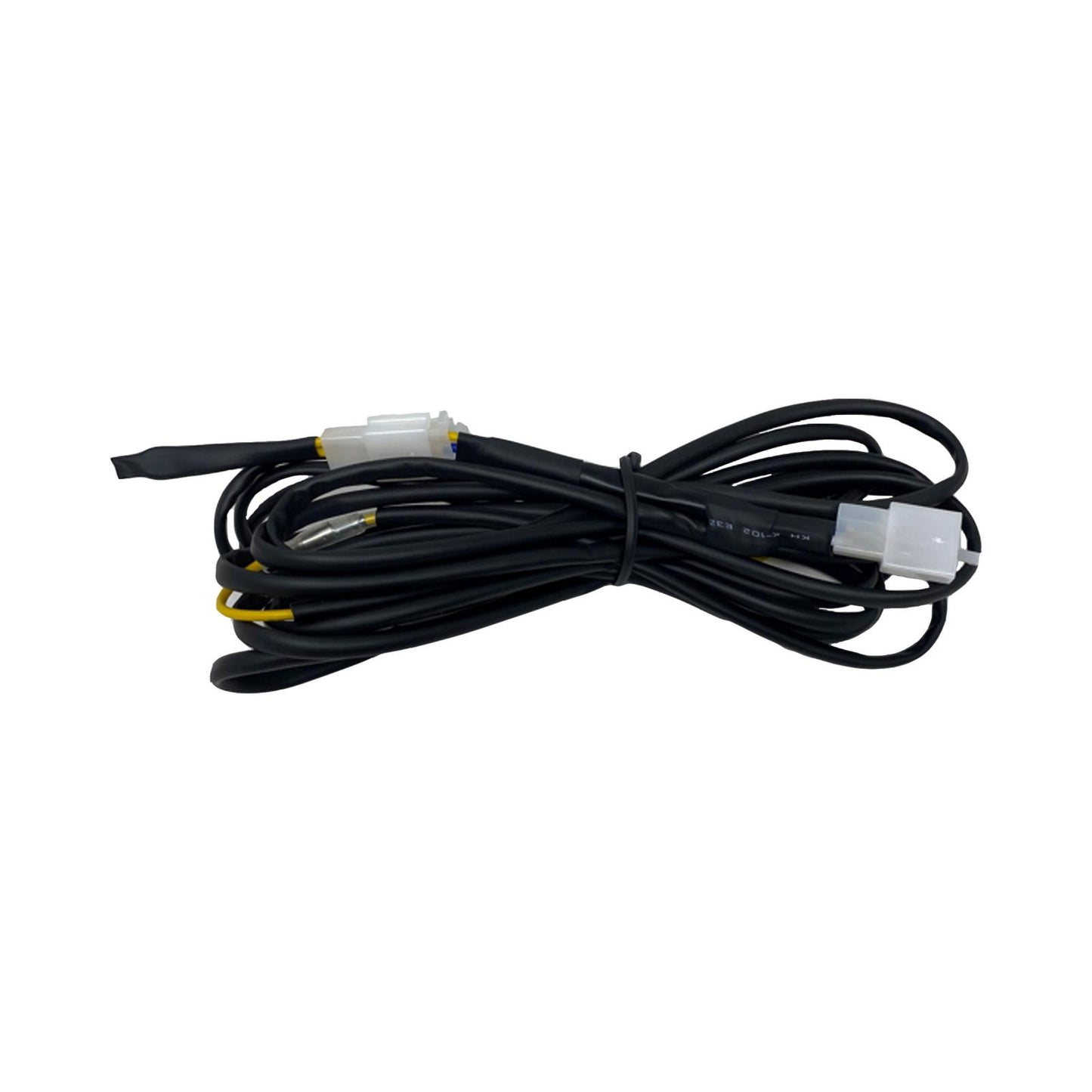

Baja Designs Trigger Switch Harness Lead 640180

This add-on harness can add dual functionality to several Baja Designs harnesses, or simply avoid having to wire through the firewall and mount a switch to the dash. Using a three-position switch (On-Off-Triggered ON), this will allow you to turn the lights on, off, or on when the trigger wire has voltage. To use the trigger wire only, there is a 'jumper connector' included that will replace the switch lead portion of the harness and eliminate the need to wire the switch into the cab. The trigger wire is long enough to reach a taillight reverse wire, but also has an intermediate bullet connector that can be used to shorten the trigger wire to reach a headlight high beam wire.

• The harnesses that this switch lead is compatible with are: 64-0117, 64-0121, 64-0175, 64-0115, 64-0139, 64-0163

Attributes:

• GTIN: 00810031746088
• Brand Name: Baja Designs
• Switch Included: Yes
• Switch Type: On/Off/Triggered On
• Universal or Specific: Universal
• Wiring Harness Description: Trigger Swtich
• Wiring Harness Included: Yes
• Application: 4-0117, 64-0121, 64-0175, 64-0115, 64-0139, 64-0163
• Description: Add-on Dual Function Harness
• Mounting Hardware Included: No
• Product Type: Trigger Switch Harness Lead

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8.0 x 8.0 x 8.0 inches
• Weight: 1.0 lb
