Turbo Outlet Flange - Garrett GT30/GTX30, GT35/GTX35, GT37, GT40/GTX40 Divided Turbine - 304 Stainless - 304 Stainless

TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

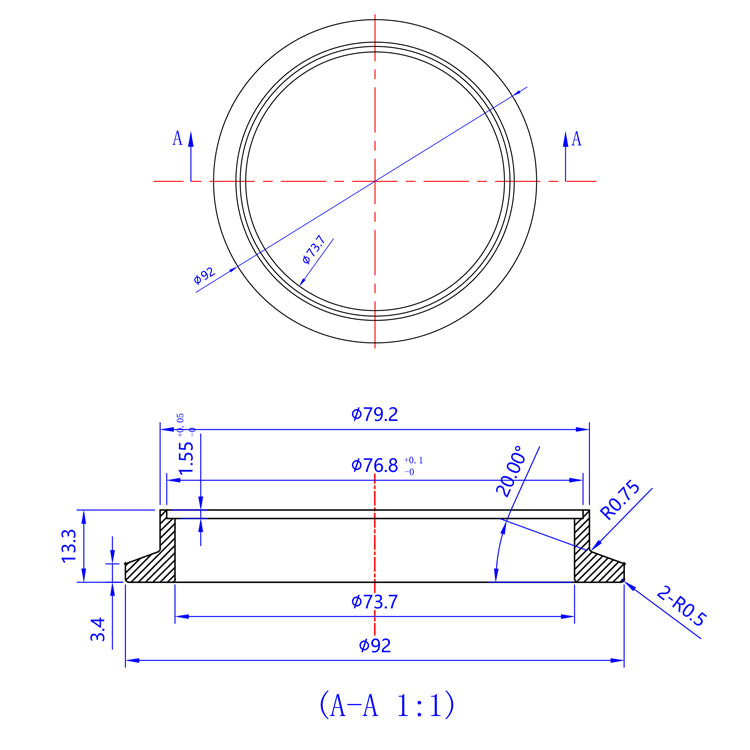

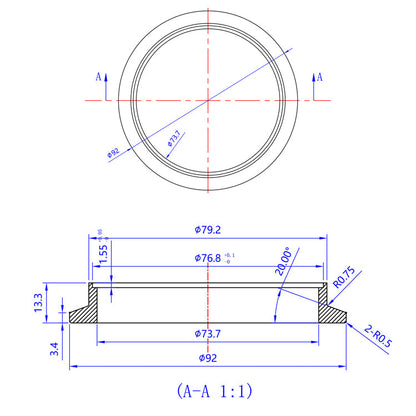

The Ace Race Parts brand of Turbo Outlet Flanges is precision CNC machined from solid 304 Stainless round bar and will withstand the punishment of high temperature turbo applications. Our version of this particular Garrett Turbo Outlet Flange features a 3.000" ID Counterbore and is compatible with a variety of Garrett brand turbochargers (please see the "Compatibility" list provided below). For dimensional details, please view the "Dimensions" table provided below.

FEATURES

• Precision CNC Machined
• 304 Stainless Steel
• For use with Garrett Turbine Housings

COMPATIBILITY

TURBO OUTLET:

• GT30/GT35/GT37/GT40 (Divided Turbine models) with 92mm (3.622") Overall OD Flange
• GTX30/GTX35/GTX40 (Divided Turbine models) with 92mm (3.622") Overall OD Flange
