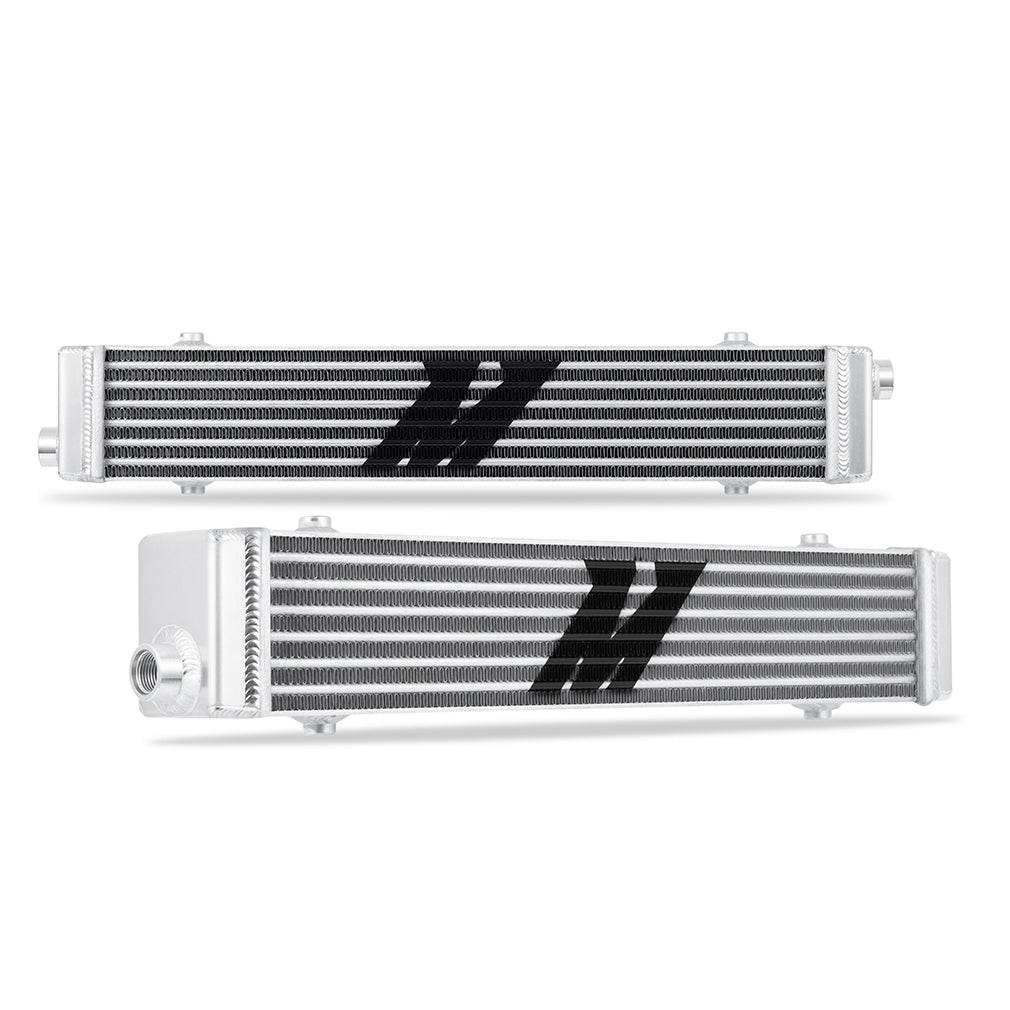

Mishimoto Universal Tube and Fin Crossflow Performance Oil Cooler MMOC-TF589-N

Sometimes, you just need a simple, no-frills cooler to ensure your oil stays at the right temperature, no matter what. This Mishimoto tube-and-fin crossflow performance oil cooler is what you’ve been searching for. We designed this cooler using a highly efficient tube-and-fin core to meet the demands of high-performance applications while maintaining light weight. But don’t take its simple exterior for granted, this cooler packs in the performance. The leading edges of our cooler’s tubes are rounded to allow incoming air to pass smoothly through the core without deflection. There, the louvered fins force the air to wind through the core, increasing time in contact with the fins and improving heat transfer. Finally, the interiors of the tubes feature turbulators that increase tube surface area and agitate the oil to ensure it contacts the entire tube, further increasing heat transfer. These features combine to create a lightweight oil cooler that’s efficient enough to meet the needs of even high-performance vehicles. The full-aluminum TIG-welded end tanks ensure leak-free performance in the harshest environments. The compact 23-inch x 4-inch x 3-inch overall size and universal M8x1.25 mounting bosses on the top and bottom of the core make mounting this oil cooler in the bumper or front cooling stack easy. -10 ORB inlet and outlet are compatible with many widely available -AN adapters including Mishimoto’s -10 ORB to -10AN and 3/4-inch fittings. Combine this with our PFTE or CPE braided steel lines and -AN fittings for a bulletproof oil cooling solution. Like all Mishimoto products, this tube-and-fin crossflow performance oil cooler features our Mishimoto Lifetime Warranty for a lifetime of performance.

• Tube-and-fin construction for light weight and effective cooling
• Extruded tubes for increased strength and improved airflow
• Louvered fins and turbulated tubes improve heat transfer
• 23"L x 4"H x 3"W overall size is ideal for bumper-mounted applications
• Four M8x1.25 mounting bosses for easy mounting
• -10 ORB inlet and outlet accept Mishimoto -10 ORB to -AN adapters
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00840197710654
• Brand Name: Mishimoto
• TechSpec Rows: 6
• TechSpec Core Construction: N/A
• TechSpec Core Length (in): 20.47
• TechSpec Core Height (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Engine Codes: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Installation Notes: -10 ORB: 30 lb-ft--M8 Mounting Bolts: 16 lb-ft
• TechSpec Caution: N/A
• TechSpec Overall Height (in): 4.72
• TechSpec Overall Length (in): 24.61
• TechSpec Overall Width (in): 3.15
• TechSpec Inlet: N/A
• TechSpec Outlet: N/A
• TechSpec Includes: Mishimoto Tube-and-Fin Oil Cooler--M8x1.25 Bolts--M8 Flat Washers--M8 Locking Washers--Mishimoto Lifetime Warranty
• TechSpec Applications: N/A
• TechSpec Fluid Capacity (qts): 1.24
• TechSpec Note: The logo is only painted on one side of the core to suit your taste
• SellingPoint01: Tube-and-fin construction for light weight and effective cooling
• SellingPoint02: Extruded tubes for increased strength and improved airflow
• SellingPoint03: Louvered fins and turbulated tubes improve heat transfer
• SellingPoint04: 23-inL x 4-inH x 3-inW overall size is ideal for bumper-mounted applications
• SellingPoint05: Four M8x1.25 mounting bosses for easy mounting
• SellingPoint06: -10 ORB inlet and outlet accept Mishimoto -10 ORB to -AN adapters
• SellingPoint07: Mishimoto Lifetime Warranty
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.5 x 4.5 x 6 inches
• Weight: 4.31 kg
