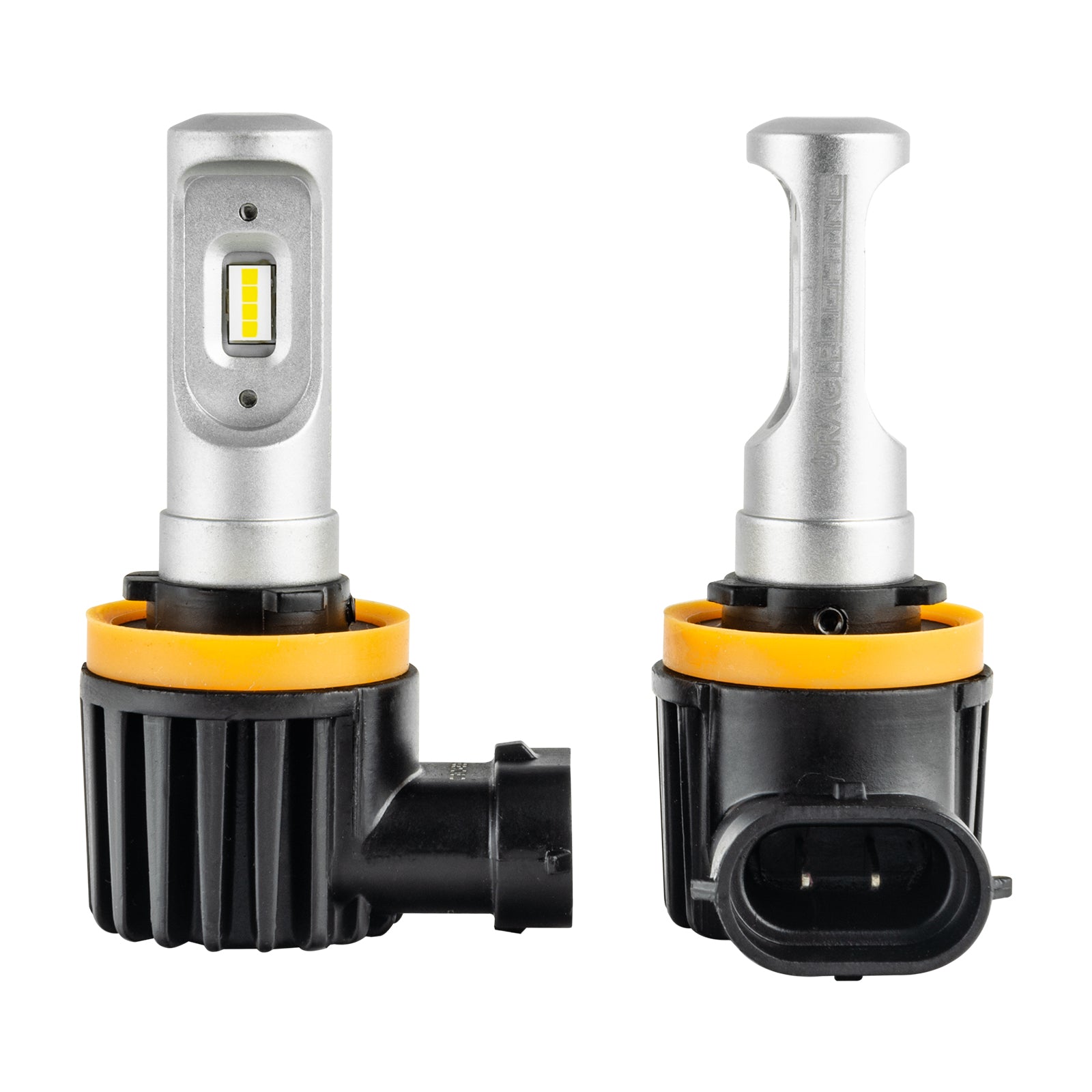

Oracle Lighting V5235-001 - Headlight Bulb Set

The new ORACLE Lighting V-Series packs a ton a features to make it not only user-friendly but also an amazing value with the all-new design technology. The V-Series bulbs feature fcCSP Flip-Chip Scale LED Packaging. The advantages of flip-chip technology are multiple: it provides enhanced electrical performance over standard wirebond technology, allows for a smaller form factor due to increased routing density, and eliminates wire-bond loops. An ultra-luminous and extremely efficient light output with superior durability and reliability. This new all-in-one diecast body design mimics the look of the original factory halogen bulb. This allows for easy installation without any additional wiring or external drivers. The die-cast design also provides increased thermal conductivity and heat dissipation to insure long bulb life. V-Series LED bulbs offer even more compatibility by working with vehicles that use the headlight bulb for the DRL function at a reduced voltage. The class-leading 6-32V ultra-wide range voltage protection will allow these LED bulbs to be used in Daytime Running Light Applications without common flicker issues. The V-Series bulb will dim to 50% brightness in DRL mode just like the factory halogen bulb. ORACLE Lightings new V-Series bulbs feature our SmartDrive Active Thermal Regulation temperature management. The integrated constant current linear LED driver inside the bulb uses a system called thermal foldback to protect the LEDs and the bulb components. The LED driver operates from a 6V to 24V input and offers constant current output at up to 1 Amp. Supplementing passive thermal management with active techniques such as this allow for a very small bulb package without risking damage to the LED or creating an environment where the LED lifetime would otherwise be significantly shortened.

• Physically matches original bulb for OEM fitment and easy DIY installation

Attributes:

• GTIN: 00225235020191
• Brand Name: Oracle Lighting
• Add-On: N/A
• Brightness: 3,600 Lumens
• Bulb Type: H11
• DRL Compatible: Yes
• Efficacy: 100lm/W
• Kelvin Temperature: 6000K
• Power Draw: 17W
• Voltage: 6-32V DC

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 3 x 5 x 5 inches
• Weight: 1 lb
