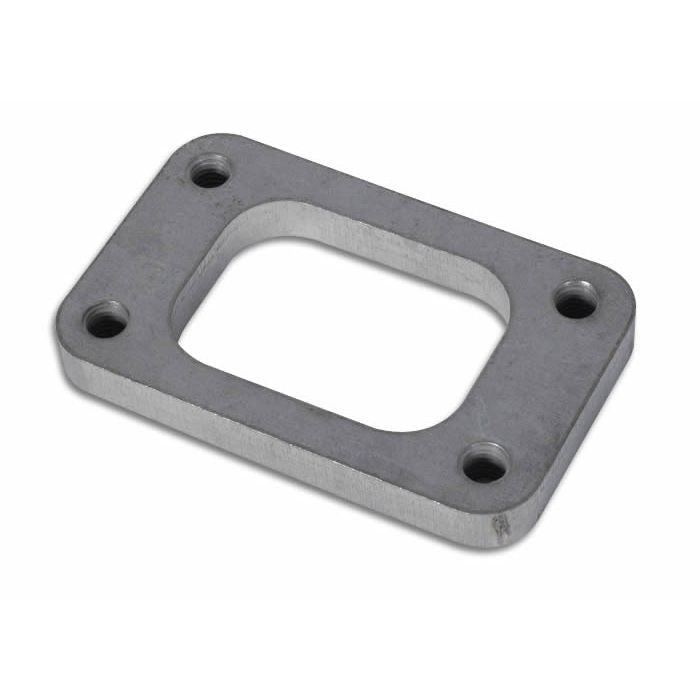

Vibrant Performance - 1400 - GT30R/GT35R/GT40R Turbo Inlet Flange (1/2 in. thick)

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

• Precision laser cut and CNC machined to ensure a perfect fit to your turbo components

Attributes:

• GTIN: 00690092137274
• Brand Name: Vibrant Performance
• Add-On: N/A
• Bolt Hole Center to Center Height: 44.5
• Bolt Hole Center to Center Width: 86
• Bolt Hole Thread Size: M10 x 1.5
• Material: 304 Stainless Steel
• Overall Height: 66.75
• Overall Port Width: 57.2
• Overall Width: 108.2
• Port Height: 44.5
• Port Width: 57.2
• Product Group: Turbine Inlet Flanges
• Thickness: 0.5

Extended Information:

• Country of Origin: Taiwan
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7.01 x 6 x 0.51 inches
• Weight: 0.07 lb
