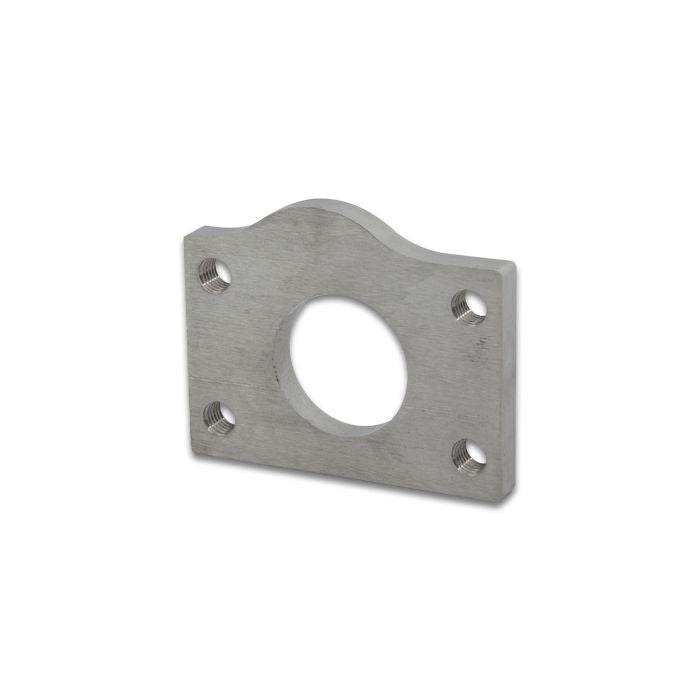

Vibrant Performance - 19820 - Turbo Inlet Flange for Garrett GT2052

Vibrant Performance stainless steel turbo flanges are constructed entirely from T304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

Attributes:

• GTIN: 00690092165871
• Brand Name: Vibrant Performance
• Add-On: N/A
• Bolt Hole Center to Center Height: 40
• Bolt Hole Center to Center Width: 73
• Bolt Hole Thread Size: M10 x 1.5
• Material: 304 Stainless Steel
• Overall Height: 62
• Overall Width: 91.4
• Port I.D.: 39
• Product Group: Turbine Inlet Flanges
• Thickness: 0.375

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7 x 7 x 0.5 inches
• Weight: 0.78 lb
