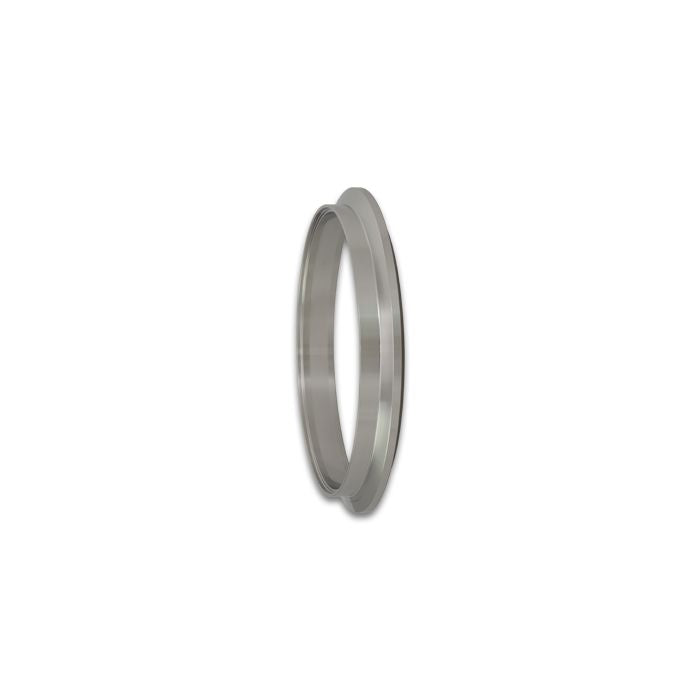

Vibrant Performance - 19866 - V-Band Turbo Outlet Flange for Garrett GTX5533R T6 Turbo

Vibrant Performance stainless steel turbo flanges are constructed entirely from T304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

• Tapered registration ring

Attributes:

• GTIN: 00690092169640
• Brand Name: Vibrant Performance
• Add-On: N/A
• Apex Width: 3.191
• Centering Ring Male Diameter Height: 3
• Centering Ring Male Diameter: 120.75
• Flange O.D.: 131
• Material: 304 Stainless Steel
• Port I.D.: 111.3
• Product Group: Turbine Outlet Flanges
• Thickness: 17
• Tube Recess Depth: 2
• Tube Recess I.D.: 4

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 10.63 x 7.08 x 0.75 inches
• Weight: 0.46 lb
