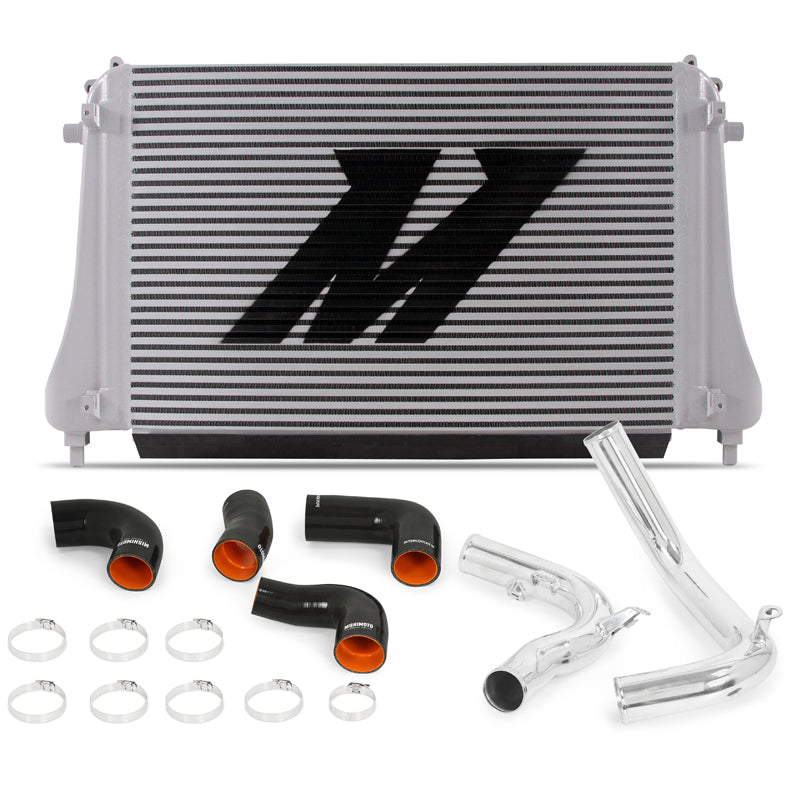

Mishimoto Volkswagen MK7 Golf TSI/GTI/R Performance Intercooler Kit, 2015+ MMINT-MK7-15KP

The mantra behind the grandfather of all hot-hatchbacks has long since been that big things come in small packages. Now on its 7th generation, the 2015+ Golf TSI/GTI/R's and its intercooling system are about to receive a much-needed overhaul with the Mishimoto Performance Intercooler Kit. The stock system can be best described as the meat in an intercooler sandwich. It's no wonder with it placed directly between the radiator and AC condenser that this tube-and-fin constructed intercooler has trouble keeping up. Where this lighter core coupled with plastic end tanks might be suited for mass production and tame street driving, it will struggle to keep your intake air temperatures down under more intense driving, especially after the boost is turned up. The Mishimoto 2015+ Volkswagen MK7 Golf TSI/GTI/R Performance Intercooler, armed with an arsenal of cooling technology, takes the place of the stock intercooler. Our engineers were able to squeeze in a larger core, increasing the overall volume by 89-percent over stock and bumping up the external fin surface area by 162-percent. On top of the larger core, our all-aluminum, TIG-welded intercooler features a more robust bar-and-plate construction for better heat dissipation characteristics. In addition, the cast aluminum end tanks are integrated with airflow diverters to ensure use of the full core. In addition to the more robust intercooler, our Performance Intercooler Kit for your 2015+ Golf or Audi A3/S3 includes our Performance Intercooler Pipe Kit. We ditched the stock plastic piping and rubber couplers for mandrel-bent aluminum piping and 5-layer silicone couplers. Our piping increases the air channels to and from the intercooler to 2.75 inches, resulting in a 30-percent increase in flow.When combined, our innovations for the MK7 intercooling system yielded max power gains of 14.5 whp and 13 wtq on the stock tuning. In addition, our charged air cooler dropped intercooler outlet temperatures by 23 F

• Direct fit for the 2015+ Volkswagen Golf TSI/GTI/R and Audi A3/S3
• Max power gains of 14.5 hp and 13 tq on stock tuning
• Drops intercooler outlet temperature by 23 F
• 162-percent in external fin surface area, and 10-percent increase in piping size
• Available with polished or wrinkle black pipes

Attributes:

• GTIN: 00811580034862
• Brand Name: Mishimoto
• TechSpec Applications: 2015+ Volkswagen Golf TSI--2015+ Volkswagen GTI--2015+ Volkswagen Golf R--2015+ Audi A3--2015+ Audi S3--2016+ Audi TT
• TechSpec Engine Codes: N/A
• TechSpec Chassis Codes: MQB
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): 2.2
• TechSpec Core Length (in): N/A
• TechSpec Core Height (in): N/A
• TechSpec Inlet (in): 2.1
• TechSpec Outlet (in): 2.1
• TechSpec Weight (lbs): 27
• TechSpec Note: This kit is compatible with the EA888 Gen3 engine and manual or 6-speed DSG transmissions only. Hot-side intercooler piping may not fit properly on vehicles equipped with 7-speed DSG transmissions.
• TechSpec Includes: (1) Performance Intercooler--(1) Performance Piping Kit--(2) CNC-Machined Aluminum Mounting Brackets--(4) Silicone Couplers--(8) High-Torque Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for the 2015+ Volkswagen Golf TSI/GTI/R and Audi A3/S3
• SellingPoint02: Max power gains of 14.5 whp and 13 wtq on stock tuning
• SellingPoint03: 89-percent increase in core volume
• SellingPoint04: 162-percent increase in external fin surface area
• SellingPoint05: Drops intercooler outlet temperature by 23F
• SellingPoint06: Cast end tanks with internal diverters for optimal airflow through core
• SellingPoint07: 10-percent increase in average diameter over stock piping
• SellingPoint08: 30-percent increase in flow over stock components
• SellingPoint09: Mandrel-bent aluminum piping with durable 5-layer silicone couplers
• SellingPoint10: Bar-and-plate intercooler core construction
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 37 x 20 x 12 inches
• Weight: 35 lb
