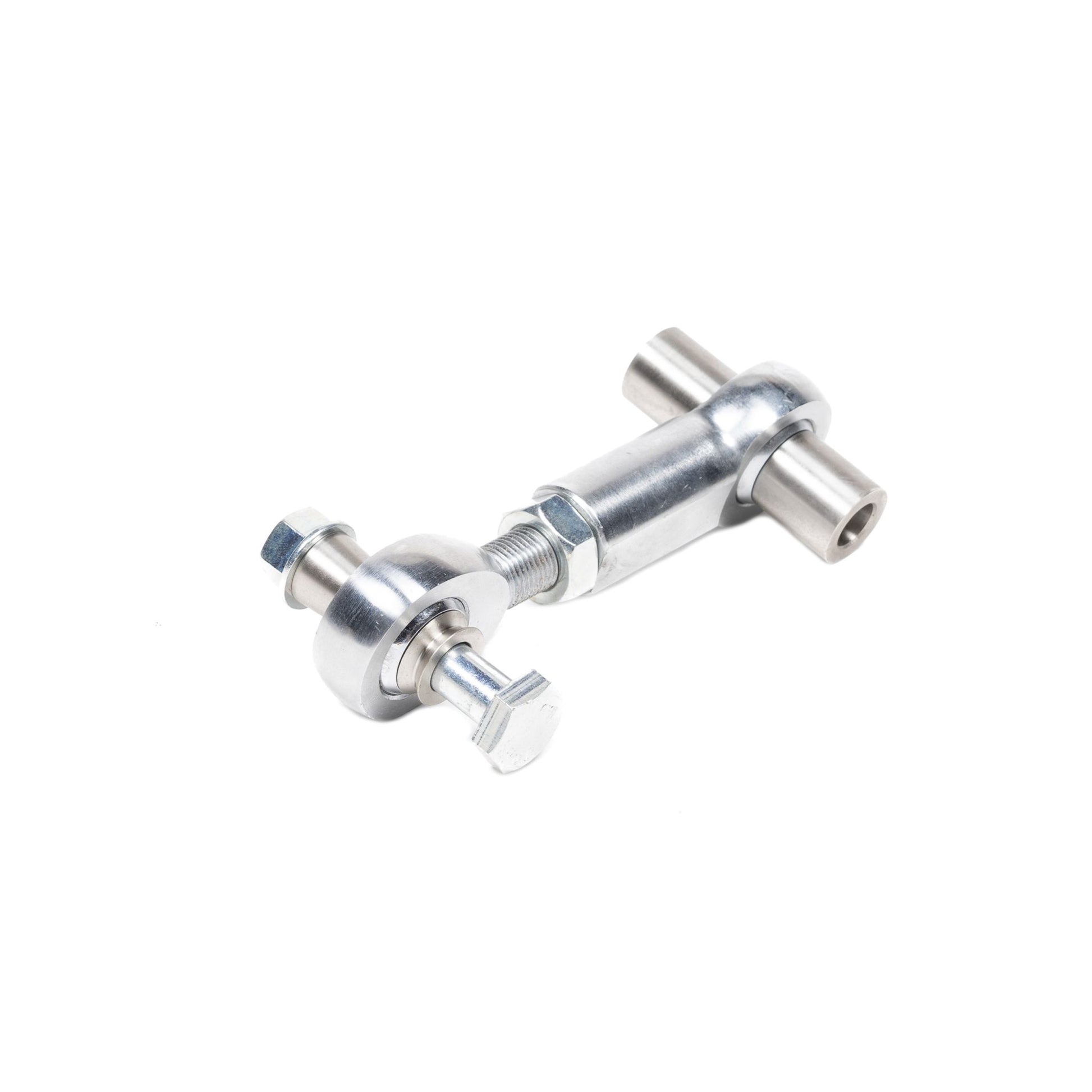

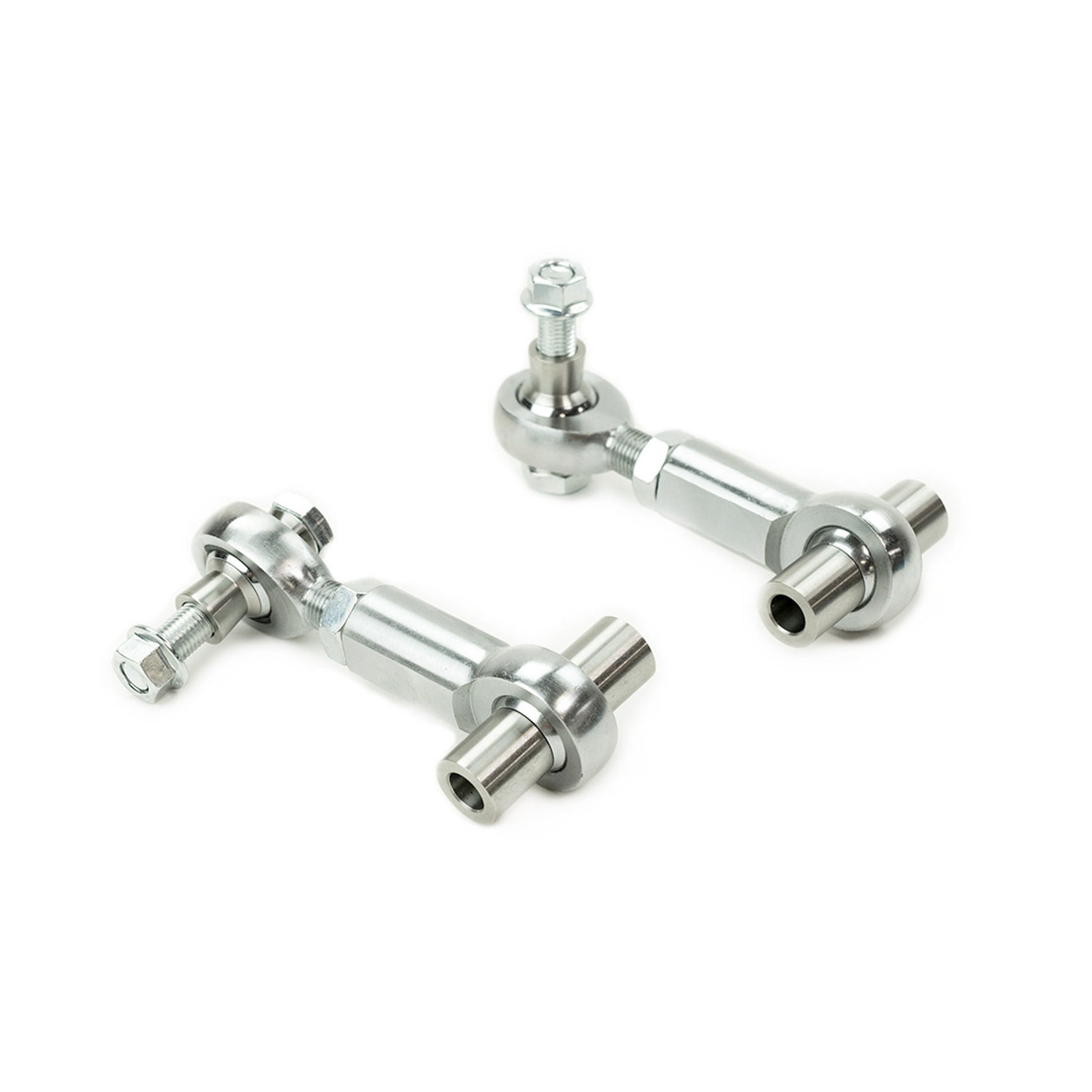

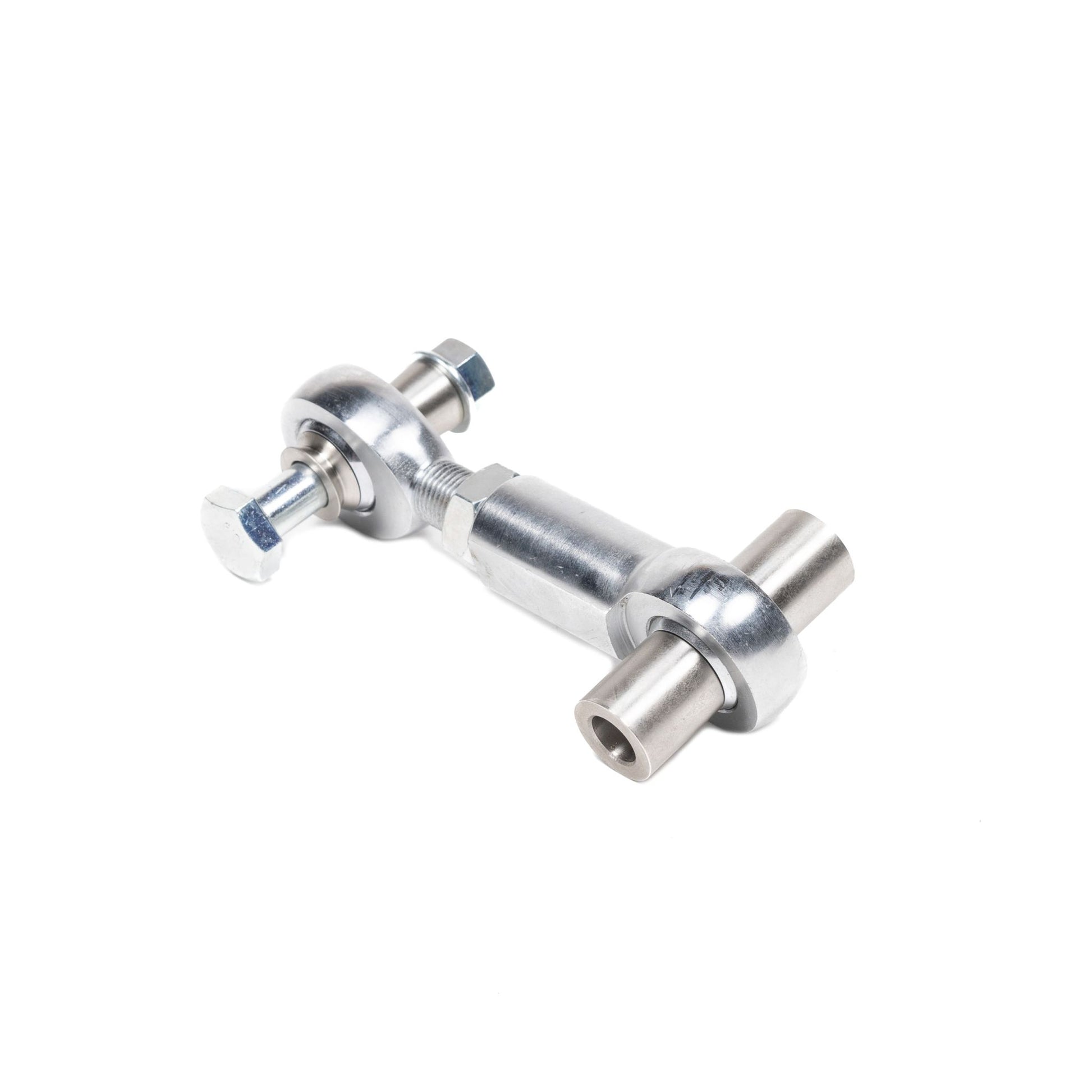

Voodoo13 Adjustable Endlinks - ADEL-0100

Voodoo13 Endlinks are designed and engineered to handle the stiffest aftermarket sway bars available. 'To prevent binding issues with aftermarket swaybar mounting location, the Voodoo13 Endlinks includes high misalignment spacers to achieve a remarkable 65 degrees of misalignment. These Endlinks are length-adjustable to dial out preload in the sway bars, due to uneven height or distribution of weight. Voodoo13 Adjustable Endlinks allow you to dial in your vehicle's suspension geometry to maintain your preferred handling and feel, even when lowering to a much more aggressive ride height.'Voodoo13 Adjustable Endlink Kit Includes high strength grade 10.9 bolts and QA1's nylon/PTFE injection molded to help prevent the build up of dirt and other road debris.

• 65 degrees of misalignment
• CNC-machined from high quality Grade 303'Stainless Steel misalignment spacers
• 6061 aluminum anodized hex adjusting rod
• Grade'10.9 zinc plated hardware
• Designed and Manufactured in USA

Attributes:

• GTIN: 00840059400006
• Brand Name: Voodoo 13
• Bearing Material: Stainless
• Bolt Length: 55
• Bolt Thread Diameter: 10
• Bolt Thread Size: 10 X 1.25
• Bolts Included: Yes
• Bushing Color: Silver
• Bushing Inside Diameter: 10
• Bushing Material: Stainless Steel
• Bushings Included: Yes
• C R or CR: CR
• Color: Raw
• Dust Boot Included: No
• End 1 Type: Eyelet
• End 2 Type: Eyelet
• Front Or Rear Suspension: Rear
• Grade Type: Performance
• Greasable: No
• Grease Fittings Included: No
• Locking Nuts Included: Yes
• Pre-Greased: No
• Product Category: Adjustable Endlinks
• Sleeve Length: 10
• Subject to CARB? Yes/No: No
• Subject to Prop65?: Yes
• Washers Included: No
• Weight: 5

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: PR
• Dimension: 8 x 8 x 8 inches
• Weight: 5 lb
