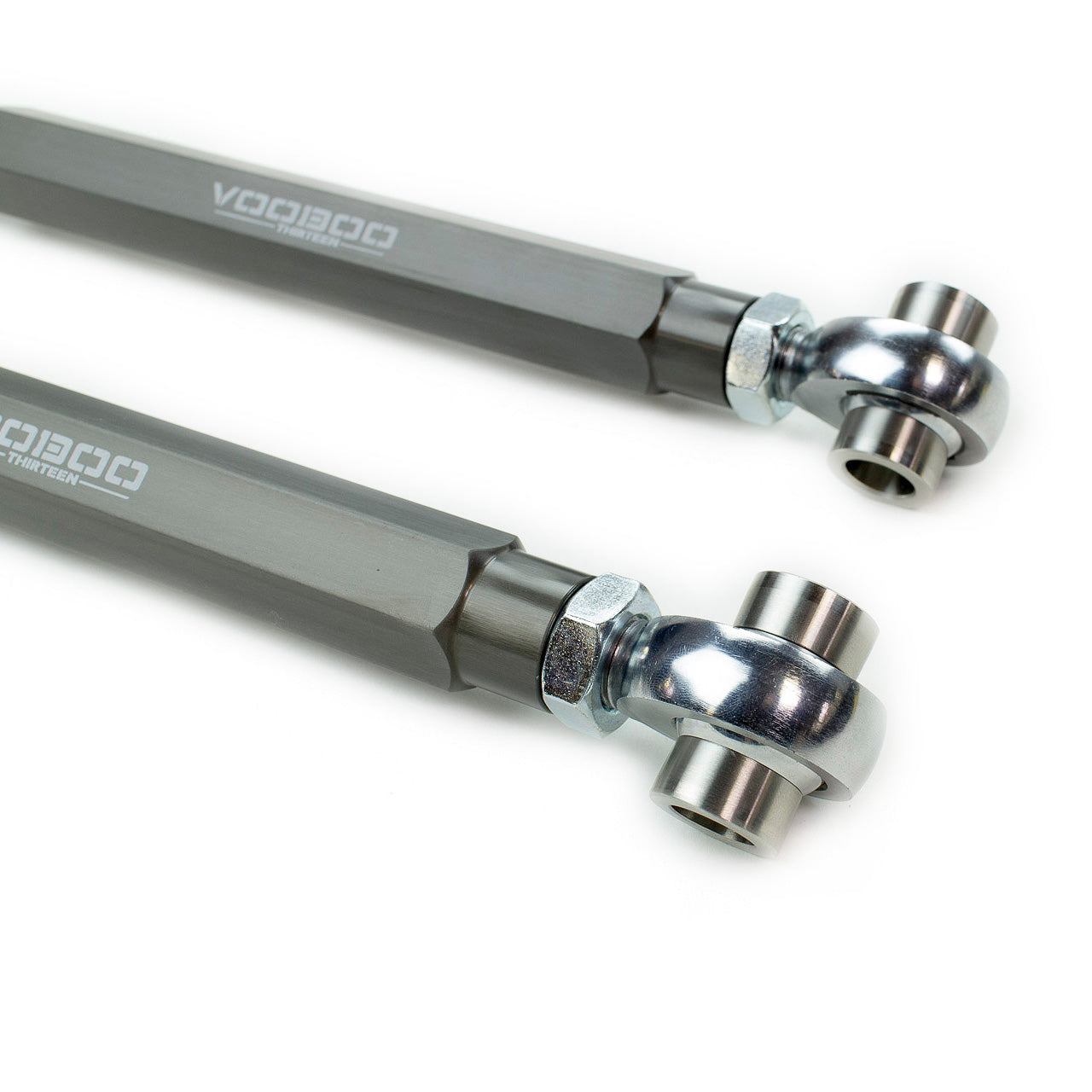

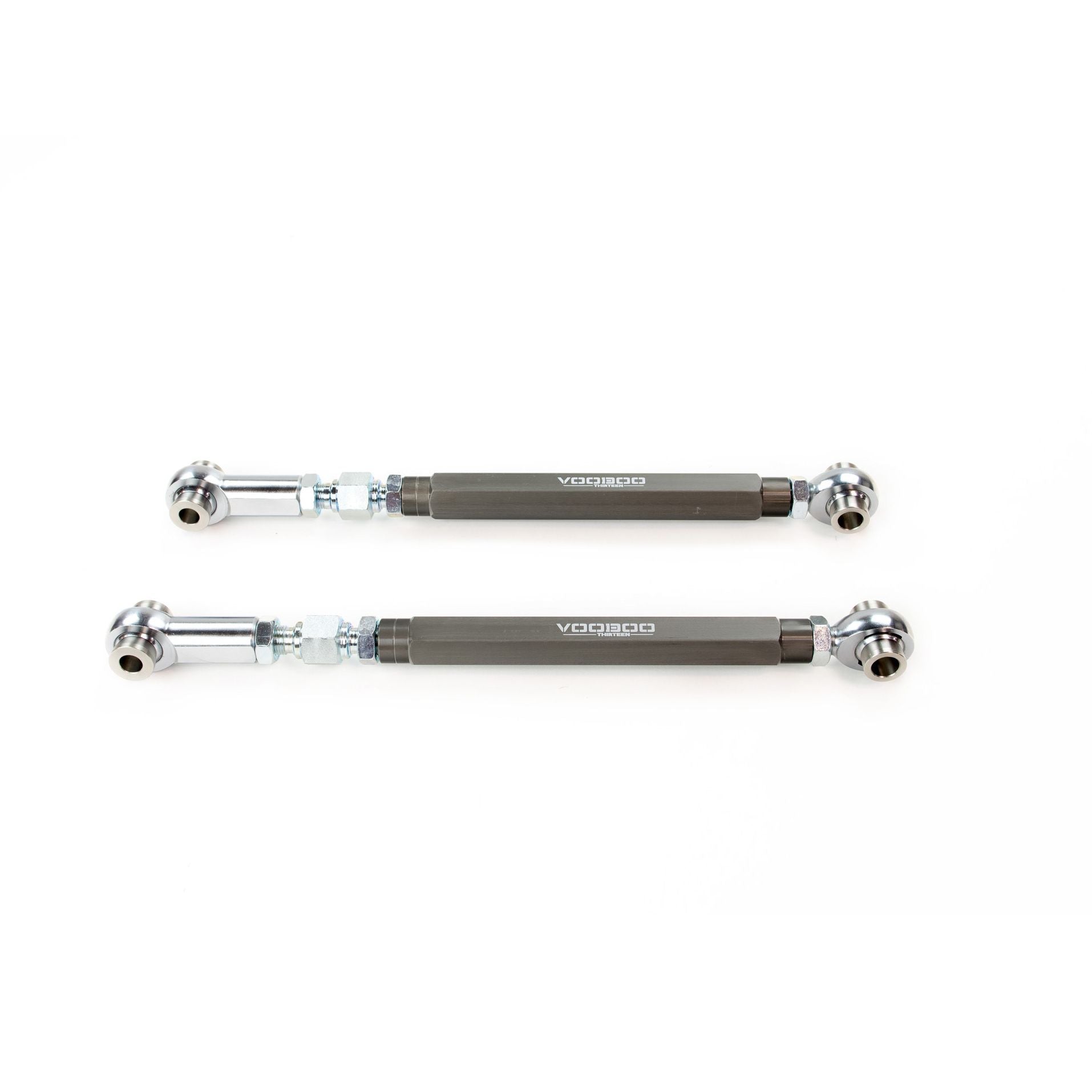

Voodoo13 Rear Lateral Links - LLSU-020F-HC

Voodoo13 Rear Lateral Links are designed and engineered for increased handling and response over OEM arms by increasing rigidity and reducing deflection. Voodoo13 lateral links feature precision CNC-machined bodies from high strength aerospace-grade 6061-T6 aluminum coated in MIL-A-8625 Type III Hard Anodize, CNC-machined chromoly hardened steel adjuster, and stainless steel CNC-machined spacers. This ensures Voodoo13 lateral links will withstand abuse from street cars and track cars. Our placement of the 4140-heat treated steel dual adjusters and female rod ends make for quick and easy adjustment. The Voodoo13 Rear Lateral Links offer a wide range of adjustability, from +2.5deg to -1.5deg Camber adjustment, and up to +2deg Toe adjustment range. Voodoo13 uses QA1 XM Chromoly Steel heim joints that are heat treated for strength and durability. The spherical rod end is self-sealing and self-lubricated because of their Nylon/PTFE injection molded race that keeps out dirt and debris.

• Designed and engineered for increased handling and response over OEM arms
• Designed and Manufactured in USA
• CNC-machined from high quality USA-sourced T6061-T6 aerospace-grade aluminum
• Coated in MIL-A-8625 Type III Hard Anodize
• CNC-machined chromoly hardened steel adjuster, and stainless steel CNC-machined spacers

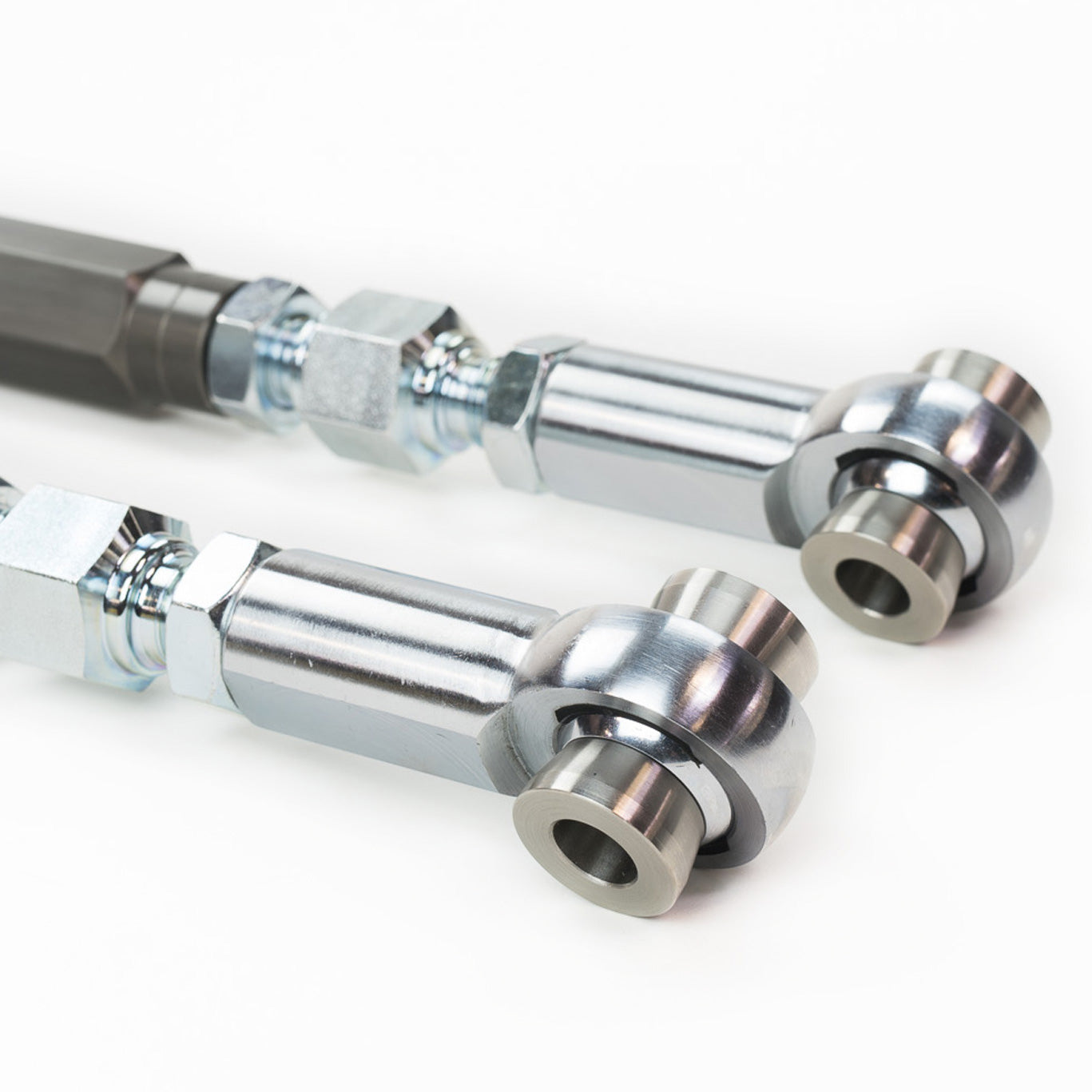

• QA1 XM Chromoly Steel heim joints that are heat treated for strength and durability
• Camber, toe, and track width adjustment
• Camber adjustment range +2.5' -1.5'
• Toe adjustment range '2'
• Track width adjustment range '1'

Attributes:

• GTIN: 00840059400280
• Brand Name: Voodoo 13
• Bushing Color: Silver
• Bushing Material: Steel
• Bushings Included: Yes
• C R or CR: CR
• Color: Hard Clear
• End 1 Gender: Male
• End 2 Gender: Female
• Grade Type: Performance
• Grease Fitting Included: No
• Material: Aluminum
• Mounting Hardware Included: No
• Product Category: Rear Lateral Links
• Subject to CARB? Yes/No: No
• Subject to Prop65?: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: PR
• Dimension: 3 x 9 x 22 inches
• Weight: 6 lb
