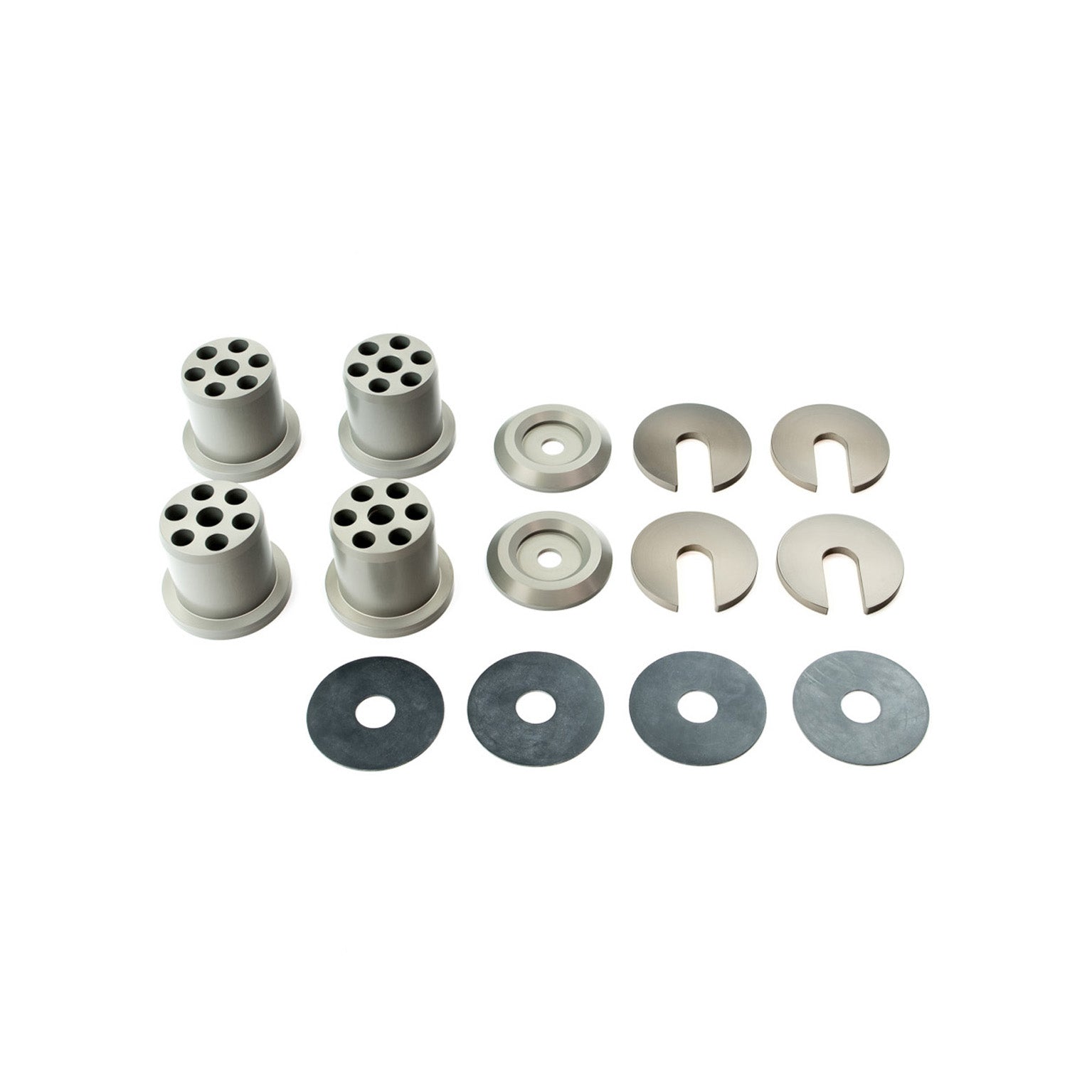

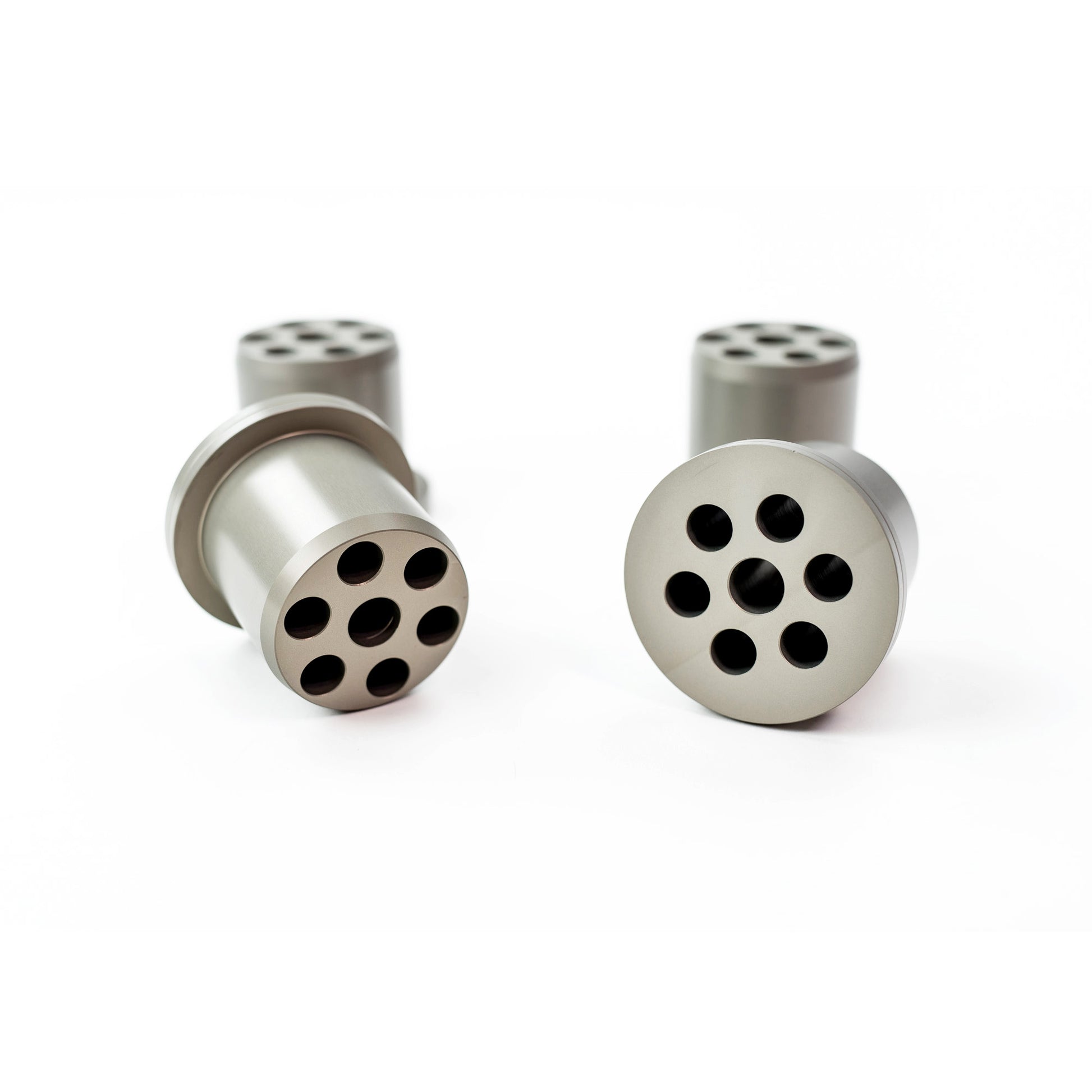

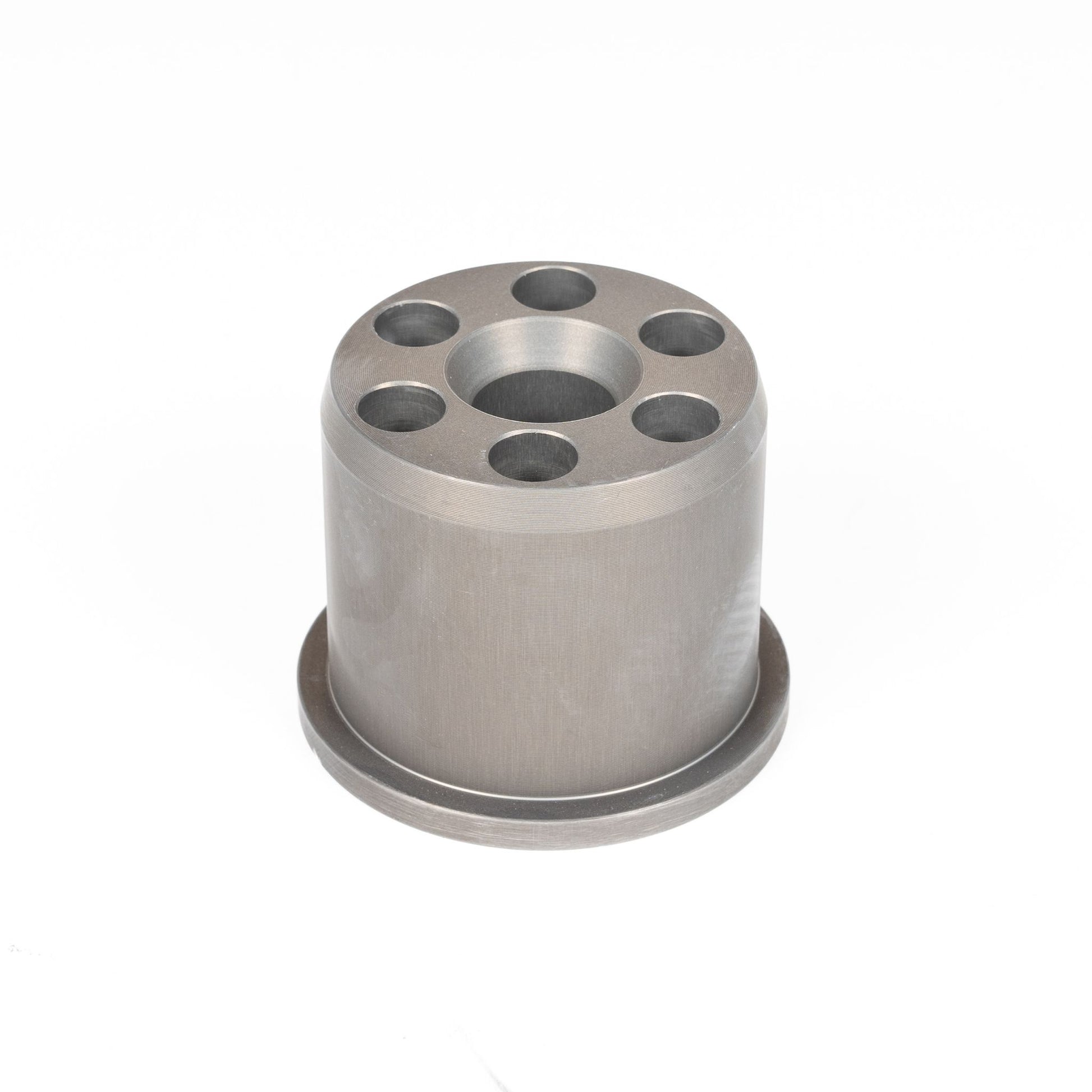

Voodoo13 Subframe Bushings - SBSC-0100

Voodoo13 adjustable aluminum Subframe Bushings are designed to rid subframe-to-chassis play by eliminating the soft OEM rubber bushings. Solid subframe bushings reduce unwanted wheel hop, as well as maintaining set suspension geometry. Unlike the competition, our subframe bushings feature a unique deep-angle chamfer in the center, which lessens the difficulty of the subframe re-installation to the chassis. Instead of re-using the rear OEM finishing caps like other companies, Voodoo13 provides our own finishing caps, to visually improve an otherwise bland part of the car. The front subframe mounts use a beveled ring to utilize OEM subframe braces. Slide-in shims allow quick subframe adjustment without removal, to either raise or lower the mounting points. Lowering the subframe will decrease anti-squat, while simultaneously increasing the roll-couple. Raising the subframe will correct roll center on a lowered car, while increasing anti-squat.

• Eliminates the soft OEM rubber bushings
• Reduces unwanted wheel hop as well as maintaining set suspension geometry
• Slide-in shims allow quick subframe adjustment without removal to either raise or lower the mounting points
• CNC-machined from high quality USA-sourced T6061-T6 aerospace-grade aluminum
• Hard Clear anodize finish
• Gun-drilled to shave weight
• Optional rubber washers included to assist in reducing noise
• Designed and Manufactured in USA

Attributes:

• GTIN: 00840059400877
• Brand Name: Voodoo 13
• C R or CR: CR
• Color: Hard Clear
• Material: Aluminum
• Mounting Hardware Included: Yes
• Product Category: Subframe Bushings
• Subject to CARB? Yes/No: No
• Subject to Prop65?: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 3 x 9 x 22 inches
• Weight: 8 lb
