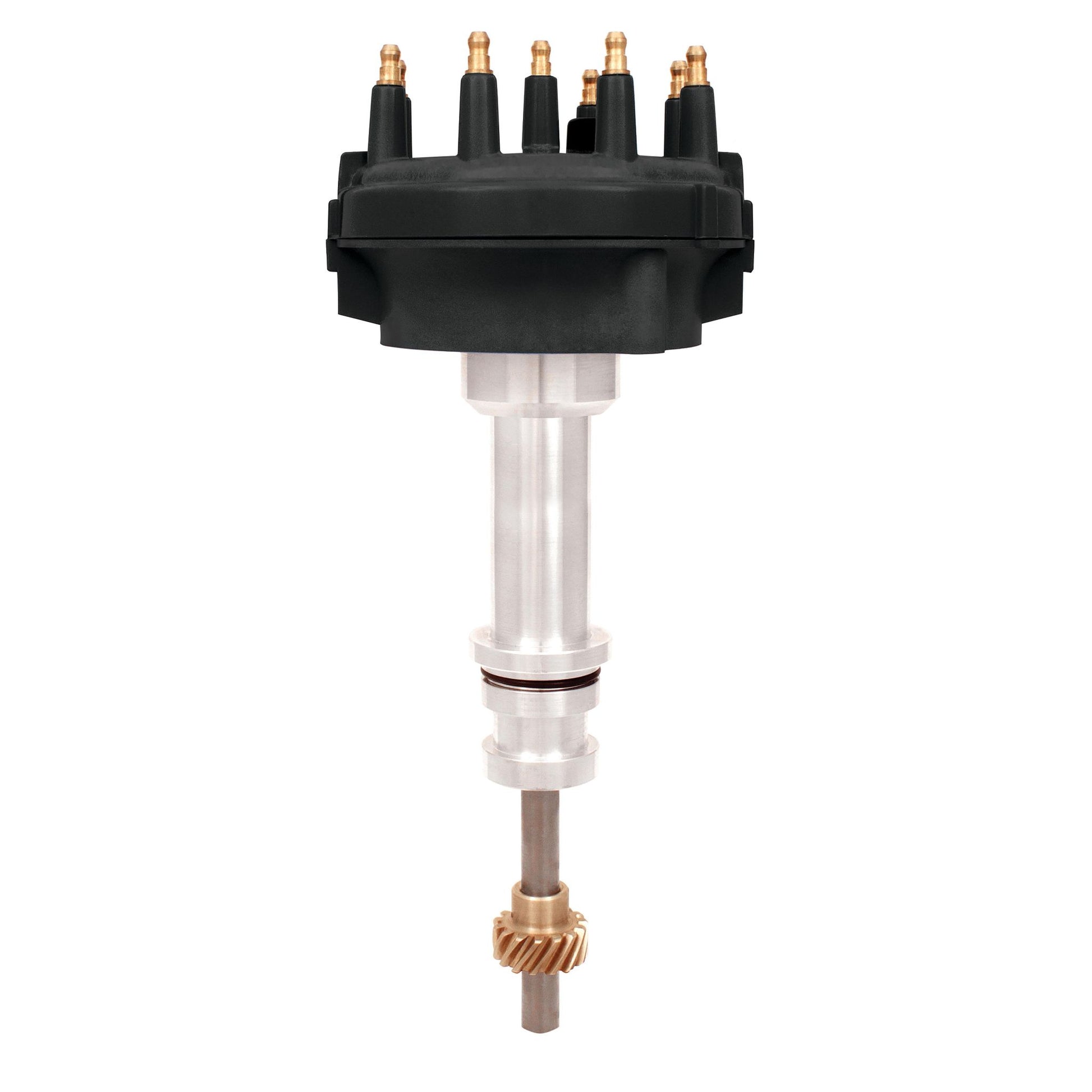

FAST XDi Crank Trigger Distributor for Chevrolet Small and Big Block 1000-1520

You can?t beat the accuracy of a crank trigger when it comes to timing signals, however you still need a distributor to transfer the high output voltage from the coil to the spark plugs. FAST XDi Crank Trigger Distributors are designed for strength and reliability.

Attributes:

• GTIN: 00021174033564
• Brand Name: FAST
• C.A.R.B. Exempt?: No
• C.A.R.B. EO Number: N/A
• Computer-Controlled Compatible: Yes
• Engine Family/Fitment: SBC / BBC
• Distributor Gear Rotation: Clockwise
• Slip Collar: Yes
• Mechanical Tach Drive: No
• Cap Style: Male/HEI
• Ignition Box Required: Yes
• Housing Finish: Natural
• Advance Type: None, Locked Out
• Cap Color: Black
• Shaft Material: Stainless Steel
• Gear Material: Copper Alloy
• Includes Distributor Gear: Yes
• Housing Material: Billet Aluminum
• Shaft Diameter: 0.491

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 15 x 6.25 x 6.25 inches
• Weight: 3.25 lb
