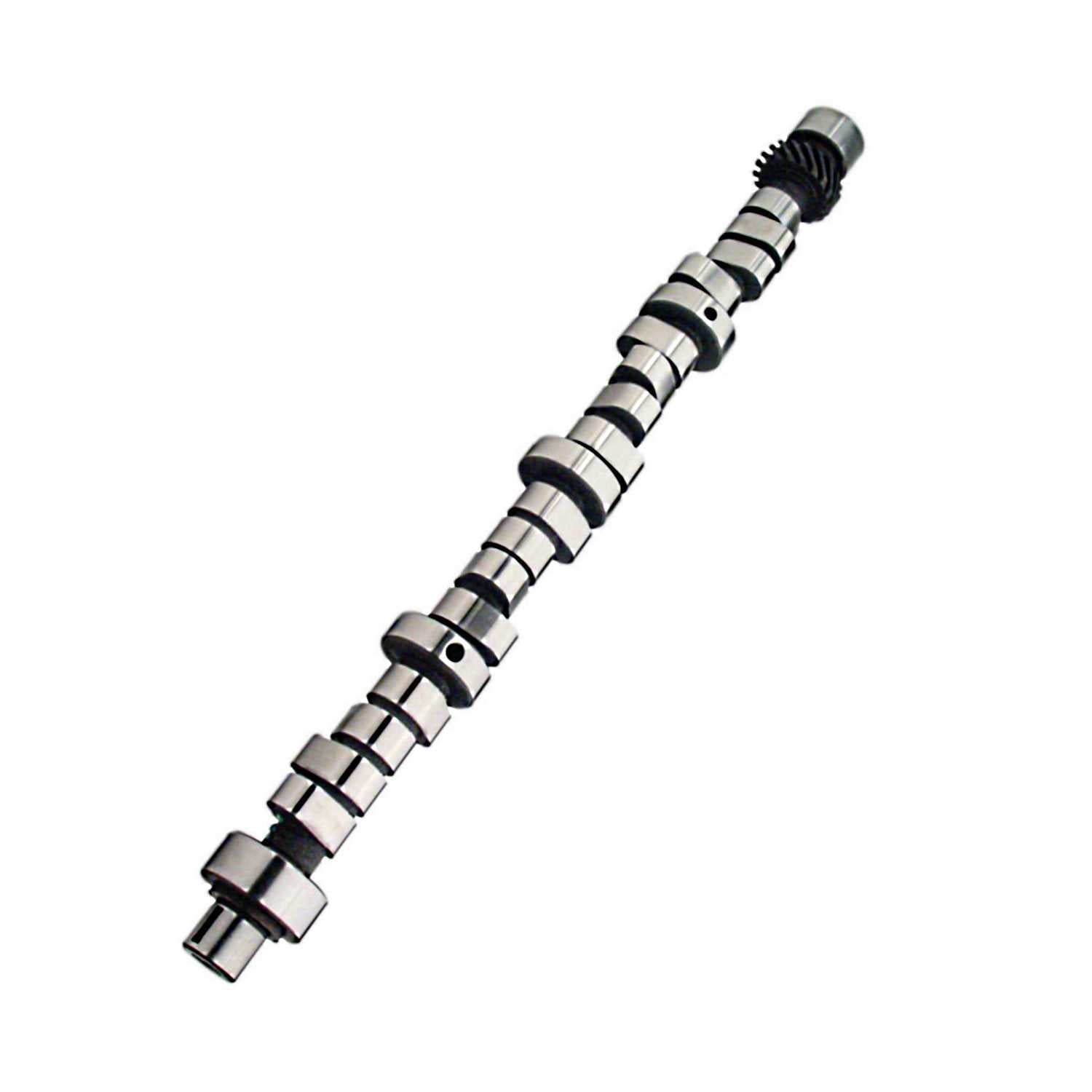

COMP Cams XE Computer Controlled 216/224 Hydraulic Roller Cam for Chrysler Magnum COMP-20-746-9

Attributes:

• GTIN: 00036584082071
• Brand Name: COMP Cams
• Usage: Street/Performance
• Camshaft Series: Xtreme Energy Computer Controlled
• Cam Type: Hydraulic Roller
• Grind Number: XR265HR-14
• Basic Operating RPM Range: 1,200-5,400
• Intake Duration at .050 Inch Lift: 216
• Exhaust Duration at .050 inch Lift: 224
• Advertised Intake Duration: 265
• Advertised Exhaust Duration: 273
• Lobe Separation: 114
• Intake Valve Lift: 0.506
• Exhaust Valve Lift: 0.506
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Billet Steel
• Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
• Lifter Type: Hydraulic Roller
• Amazon ASIN: B000P5B8HO
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.3 x 2.9 x 2.3 inches
• Weight: 9.039 lb
