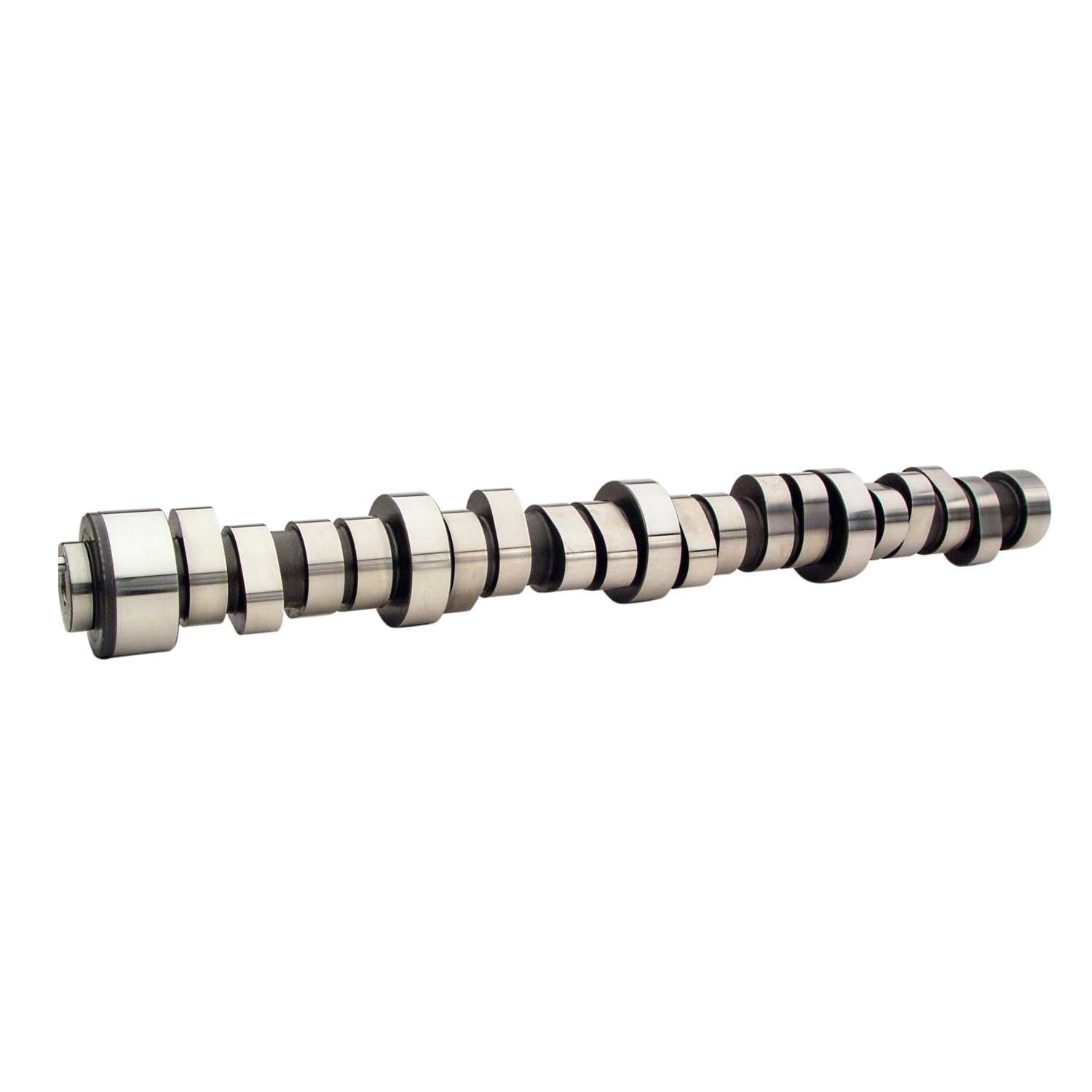

COMP Cams XFI 224/228 Hydraulic Roller Cam for Dodge 5.7/6.1L COMP-112-502-11

Attributes:

• GTIN: 00036584115601
• Brand Name: COMP Cams
• Camshaft Series: Xtreme Fuel Injection
• Usage: Street/Performance
• Cam Type: Hydraulic Roller
• Grind Number: 273H-14
• Basic Operating RPM Range: 2,000-6,200
• Intake Duration at .050 Inch Lift: 224
• Exhaust Duration at .050 inch Lift: 228
• Advertised Intake Duration: 273
• Advertised Exhaust Duration: 277
• Lobe Separation: 114
• Intake Valve Lift: 0.547
• Exhaust Valve Lift: 0.55
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Billet Steel
• Engine Family: Dodge 5.7L and 6.1L HEMI (2003+)
• Lifter Type: Hydraulic Roller
• Amazon ASIN: B001NEUV74
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.3 x 3 x 2.6 inches
• Weight: 12.9632 lb
