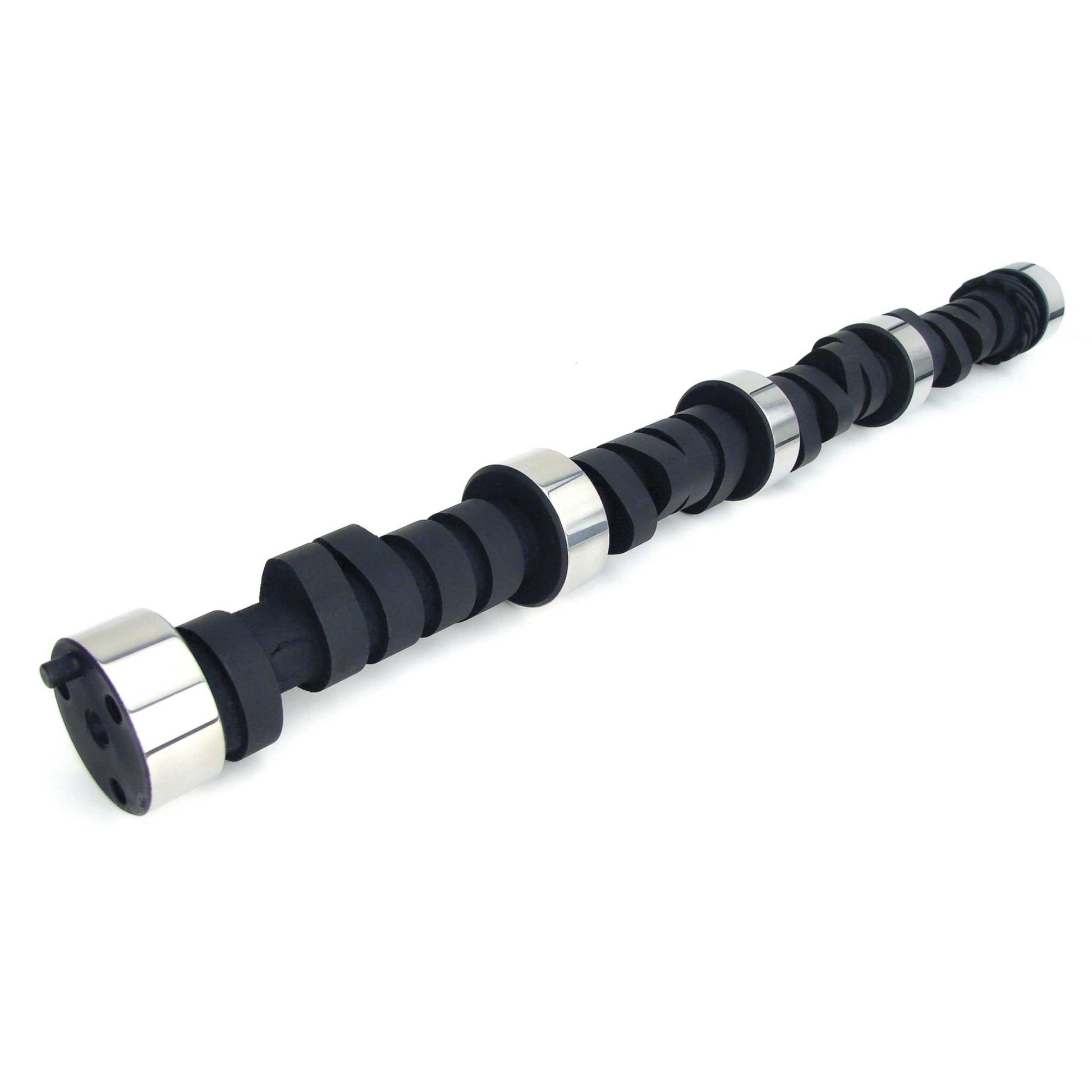

COMP Cams XFI 224/231 Hydraulic Flat Cam for Chevrolet Small Block COMP-12-366-4

Attributes:

• GTIN: 00036584105299
• Brand Name: COMP Cams
• Camshaft Series: XFI
• Usage: Street/Performance
• Cam Type: Hydraulic Flat Tappet
• Grind Number: 268XFI H13
• Basic Operating RPM Range: 2,000-6,000
• Intake Duration at .050 Inch Lift: 224
• Exhaust Duration at .050 inch Lift: 231
• Advertised Intake Duration: 268
• Advertised Exhaust Duration: 280
• Lobe Separation: 113
• Intake Valve Lift: 0.52
• Exhaust Valve Lift: 0.515
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
• Cam and Lifter Kit Upgrade: CL12-366-4
• K-Kit Upgrade: K12-366-4
• Lifter Type: Hydraulic Flat Tappet
• SK-Kit Upgrade: SK12-366-4
• Amazon ASIN: B000P5G5V8
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.3 x 2.9 x 2.4 inches
• Weight: 8.8626 lb
