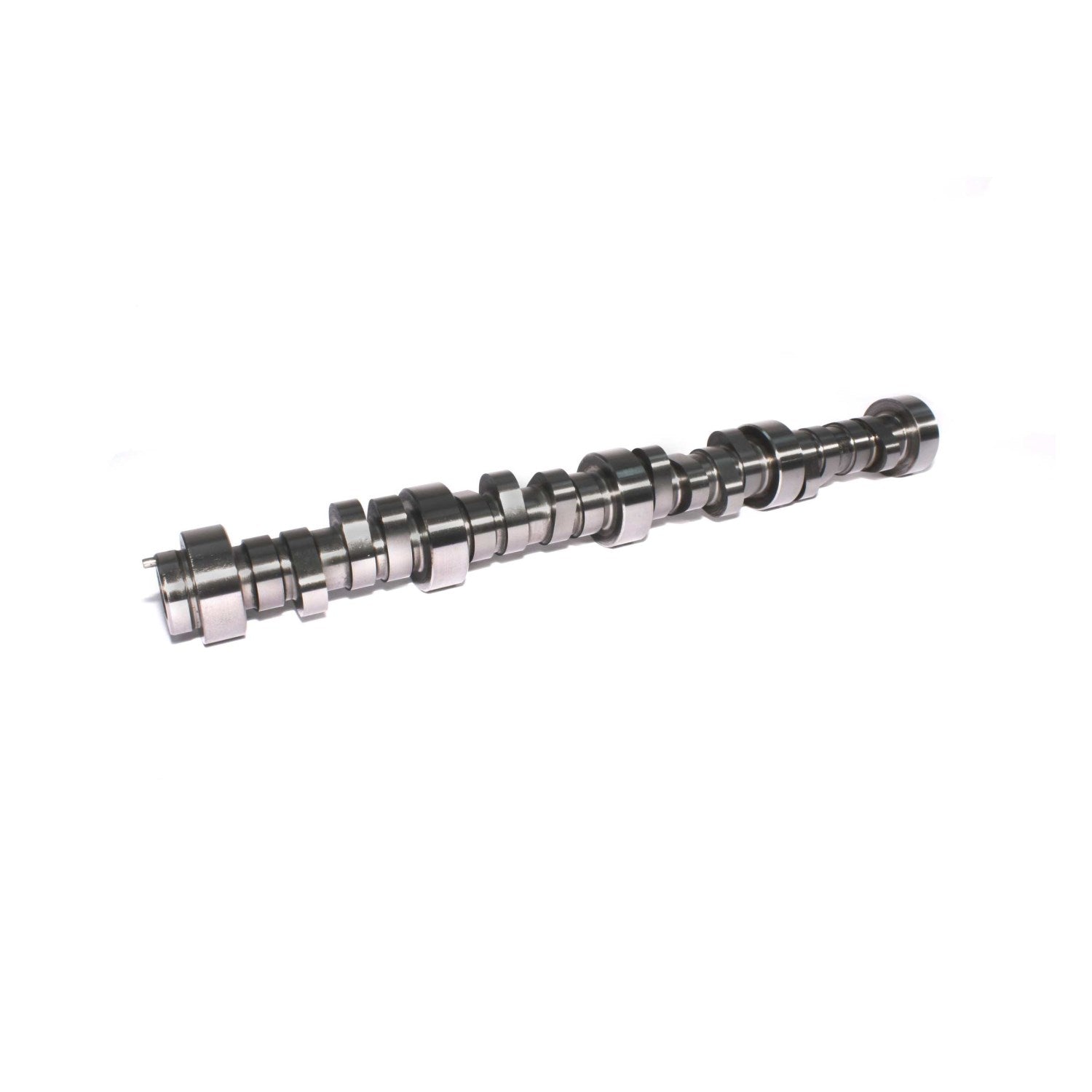

COMP Cams XFI AFM 212/224 D 210/222 N Hydraulic Roller Cam for GM GEN IV w/ AFM w/o VVT COMP-646-431-13

Attributes:

• GTIN: 00036584238003
• Brand Name: COMP Cams
• Camshaft Series: XFI AFM
• Cam Type: Hydraulic Roller
• Grind Number: 262AFM15
• Basic Operating RPM Range: 1,600-6,300
• Lobe Separation: 115
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Billet Steel
• Engine Family: GM LS2/LS3 GEN IV Single-Bolt w/ AFM and w/o VVT 8 Cylinder (2005-2014)
• Lifter Type: Hydraulic Roller
• Engine RPO Compatibility: LS4, L76, L77, LH6, LY5, LMG, LFA
• Advertised Intake Duration Deactivation Cylinders: 275
• Advertised Exhaust Duration Deactivation Cylinders: 286
• Intake Duration at .050" Deactivation Cylinders: 212
• Exhaust Duration at .050" Deactivation Cylinders: 224
• Advertised Intake Duration Non-Deactivation Cylinders: 262
• Advertised Exhaust Duration Non-Deactivation Cylinders: 274
• Intake Duration at .050" Non-Deactivation Cylinders: 210
• Exhaust Duration at .050" Non-Deactivation Cylinders: 222
• Intake Valve Lift Deactivation Cylinders: 0.5
• Exhaust Valve Lift Deactivation Cylinders: 0.5
• Intake Valve Lift Non-Deactivation Cylinders: 0.5
• Exhaust Valve Lift Non-Deactivation Cylinders: 0.5
• AFM Delete Camshaft Core Prefix: 146-
• Amazon ASIN: B0066ST5MO
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 10 lb
