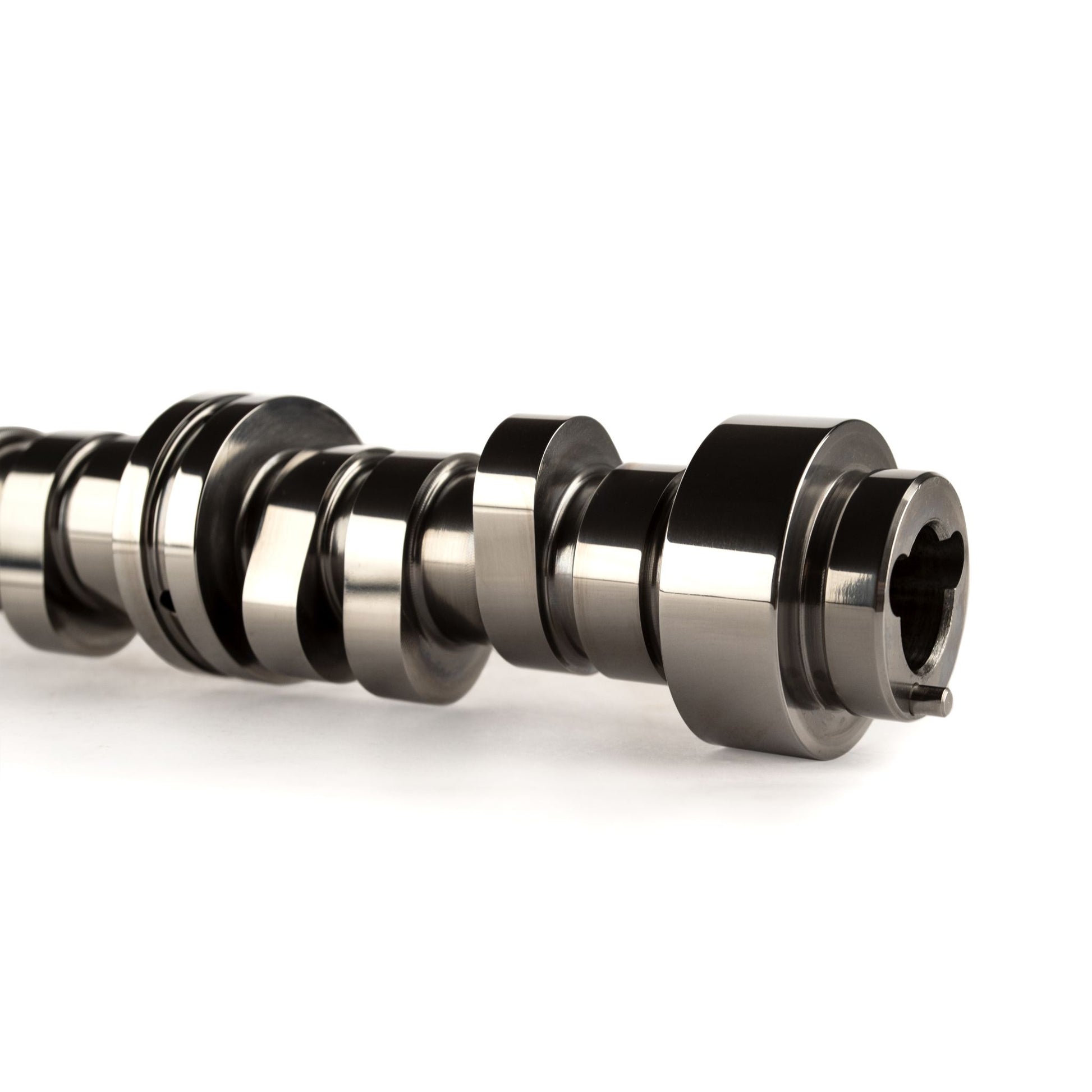

COMP Cams XFI AFM 216/228 D 214/226 N Hydraulic Roller Cam for GM LS GEN IV COMP-689-421-13

Attributes:

• GTIN: 00036584237907
• Brand Name: COMP Cams
• Camshaft Series: XFI AFM
• Grind Number: 266PIIHR14
• Lobe Separation: 114
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Billet Steel
• Usage: Street/Performance
• Intake Valve Lift Non-Deactivation Cylinders: 0.5
• Intake Valve Lift Deactivation Cylinders: 0.5
• Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 214
• Intake Duration at .050 Inch Lift Deactivation Cylinders: 216
• Advertised Exhaust Duration Deactivation Cylinders: 290
• Exhaust Valve Lift Non-Deactivation Cylinders: 0.5
• Advertised Exhaust Duration Non-Deactivation Cylinders: 278
• Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 226
• Exhaust Duration at .050 inch Lift Deactivation Cylinders: 228
• Advertised Intake Duration Non-Deactivation Cylinders: 266
• Advertised Intake Duration Deactivation Cylinders: 278
• Exhaust Valve Lift Deactivation Cylinders: 0.5
• Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
• C.A.R.B. E.O.: N/A
• Amazon ASIN: B0066SUNFW
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 10 lb
