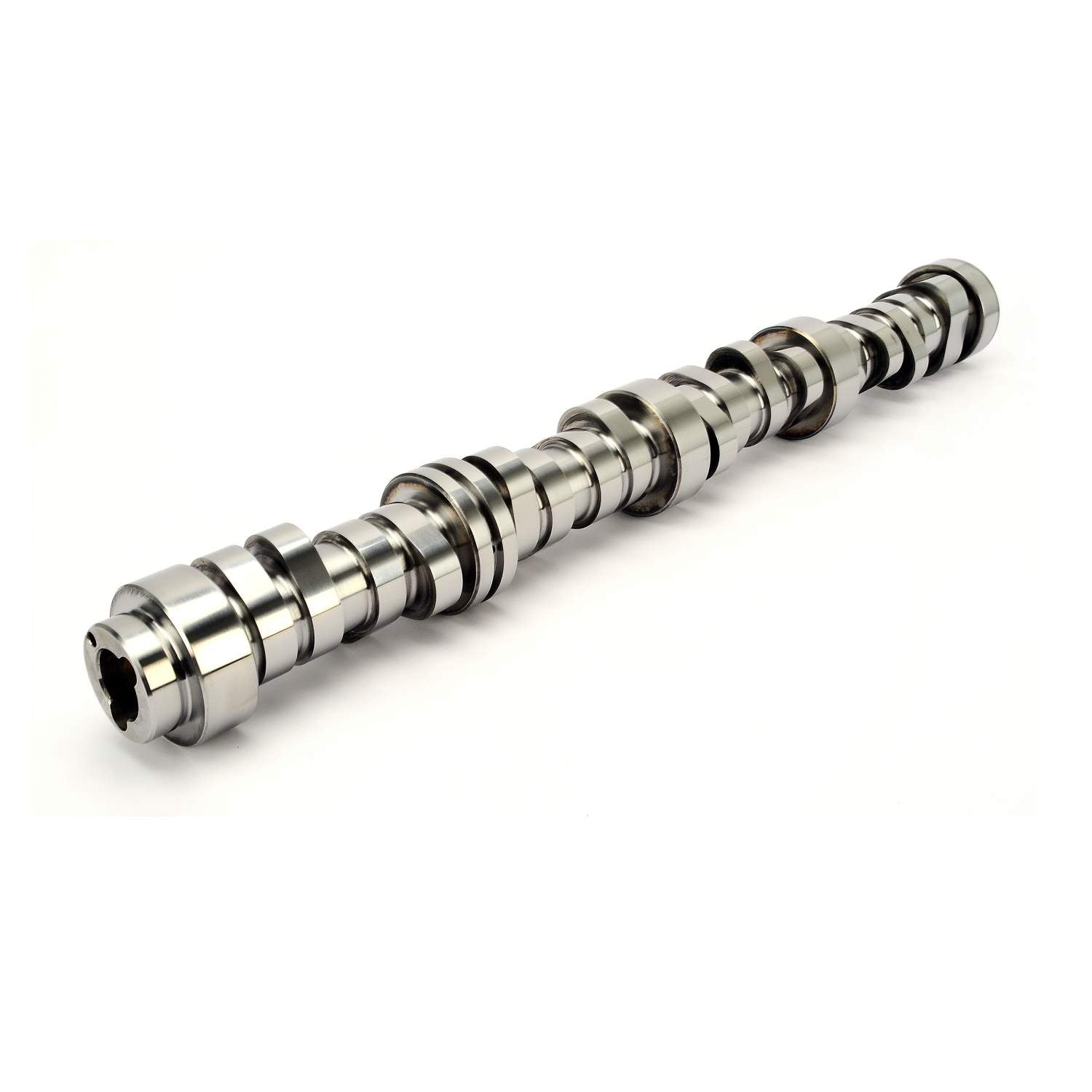

COMP Cams XFI AFM 220/232 D 218/230 N Hydraulic Roller Cam for GM LT1 GEN V COMP-624-524-13

Attributes:

• GTIN: 00036584267034
• Brand Name: COMP Cams
• Camshaft Series: XFI AFM
• Usage: Street/Performance
• Cam Type: Hydraulic Roller
• Grind Number: 270PIIHR17
• Basic Operating RPM Range: 1,800-6,900
• Intake Duration at .050 Inch Lift: 218
• Exhaust Duration at .050 inch Lift: 230
• Advertised Intake Duration: 270
• Advertised Exhaust Duration: 282
• Lobe Separation: 117
• Intake Valve Lift: 0.572
• Exhaust Valve Lift: 0.529
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Material: Billet Steel
• Engine Family: GM LT1 GEN V w/ VVT and w/ AFM 8 Cylinder (2014+)
• Lifter Type: Hydraulic Roller
• Amazon ASIN: B00N6LRB8E
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 11.2 lb
