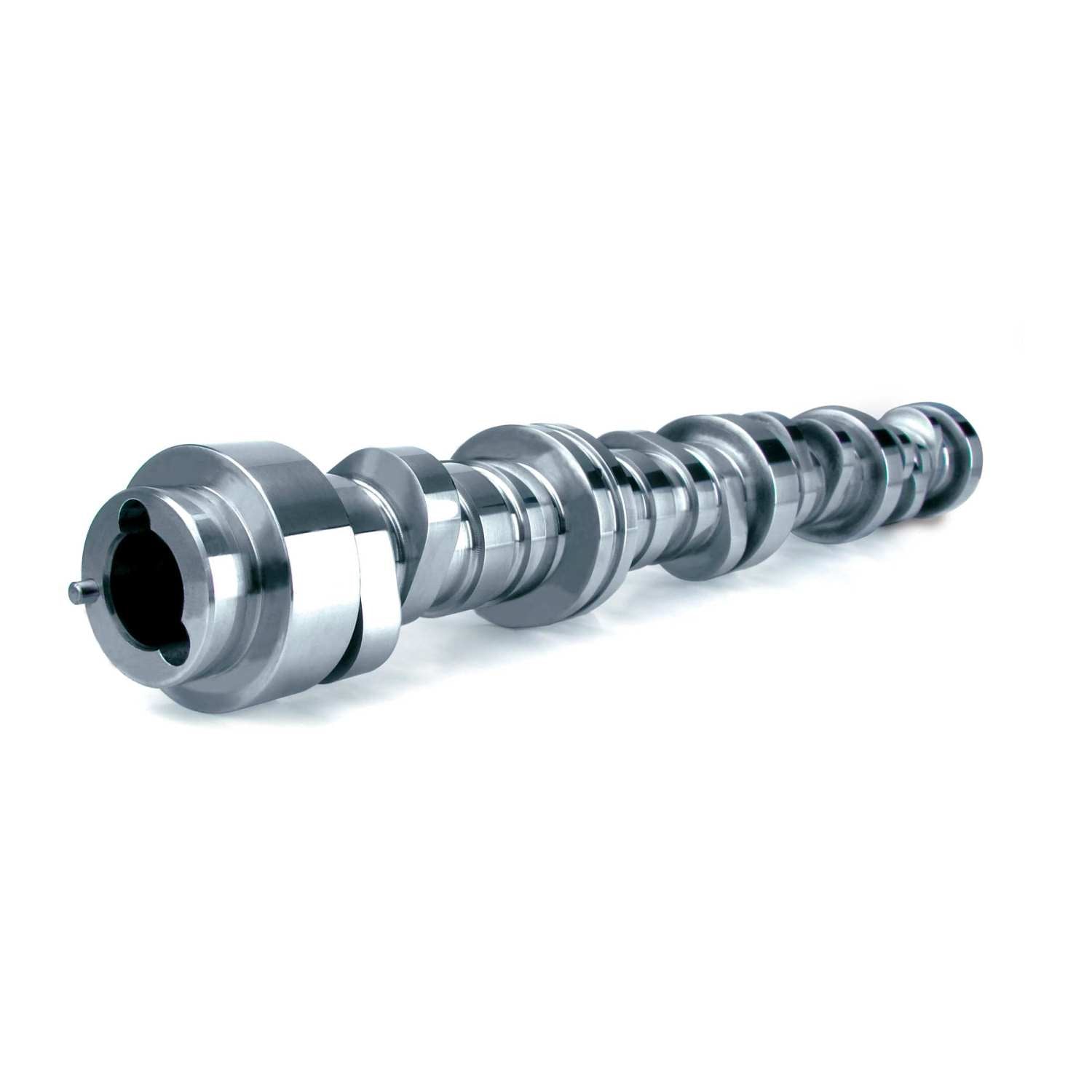

COMP Cams XFI RPM HI-LIFT 210/224 Hydraulic Roller Cam for GM LS GEN IV COMP-156-400-13

Attributes:

• GTIN: 00036584197553
• Brand Name: COMP Cams
• Amazon ASIN: B005H89QGY
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Camshaft Series: XFI RPM Hi-Lift
• Usage: Street/Performance
• Cam Type: Hydraulic Roller
• Grind Number: 263PHR14
• Basic Operating RPM Range: 1,300-6,500
• Intake Duration at .050 Inch Lift: 210
• Exhaust Duration at .050 inch Lift: 224
• Advertised Intake Duration: 263
• Advertised Exhaust Duration: 277
• Lobe Separation: 114
• Intake Valve Lift: 0.556
• Exhaust Valve Lift: 0.568
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Billet Steel
• Engine Family: GM LS GEN IV Single-Bolt w/ VVT (12585994) and w/o AFM 8 Cylinder (2007-2008)
• Lifter Type: Hydraulic Roller

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 10.16 lb
