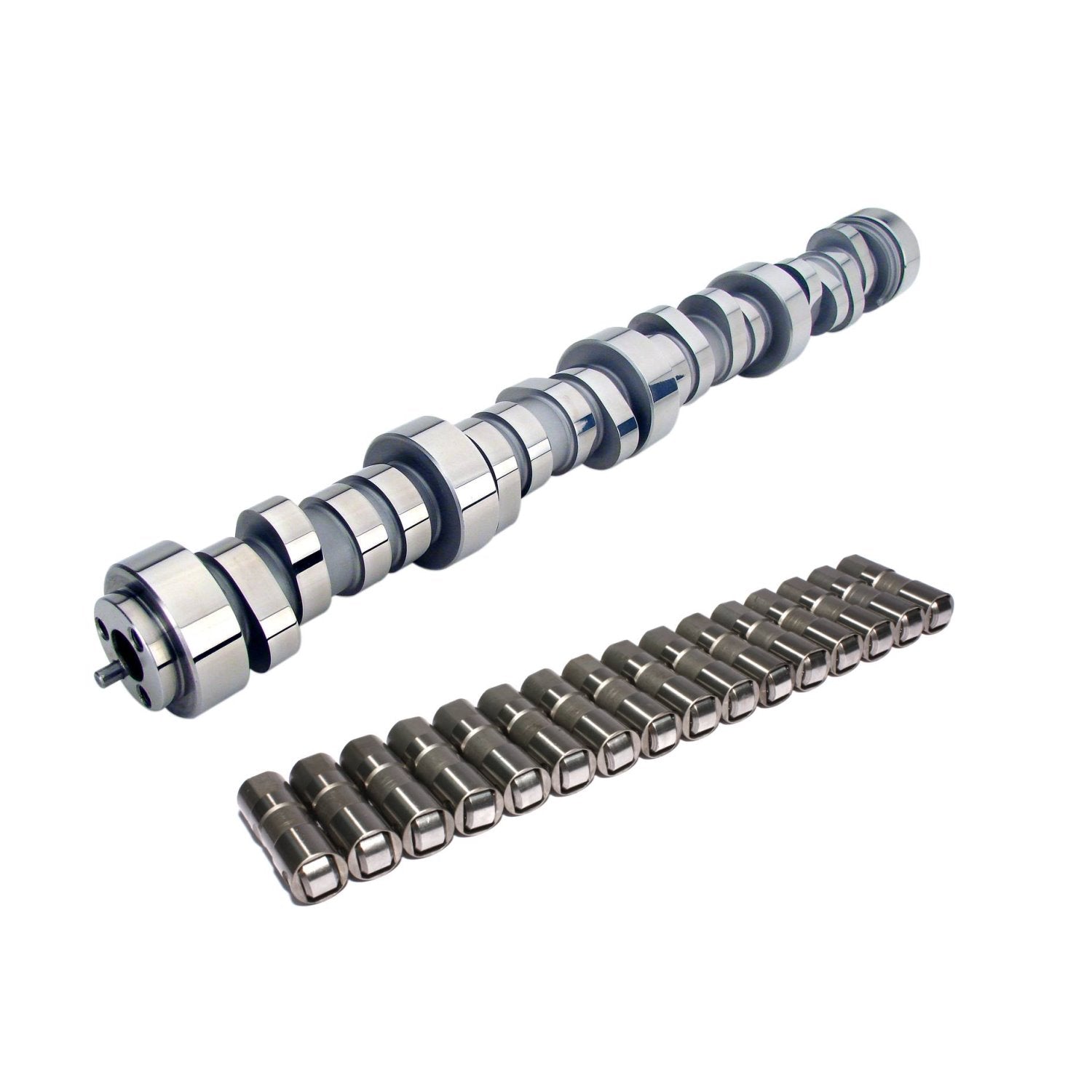

COMP Cams XFI XE-R 224/230 Hydraulic Roller Cam and Lifter Kit for GM LS GEN III/IV COMP-CL54-444-11

CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions.

Attributes:

• GTIN: 00036584199984
• Brand Name: COMP Cams
• Kit Type: CL-Kit - Cam and Lifter Kit
• Usage: Street/Performance
• Cam Type: Hydraulic Roller
• Basic Operating RPM Range: 2,000-7,000
• Intake Duration at .050 Inch Lift: 224
• Exhaust Duration at .050 inch Lift: 230
• Advertised Intake Duration: 273
• Advertised Exhaust Duration: 279
• Lobe Separation: 114
• Intake Valve Lift: 0.581
• Exhaust Valve Lift: 0.588
• Lifters Included: Yes
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel
• Lifter Type: Hydraulic Roller
• Timing Chain and Gears Included: No
• Valve Stem Seals Included: No
• Retainers Included: No
• Locks Included: No
• Gaskets Included: No
• K-Kit Upgrade: K54-444-11
• Amazon ASIN: B005H89WO0
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• MSE Process Video Link: https://www.youtube.com/watch?v=hTyIQxrPCCI

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 25.3 x 5.5 x 3.1 inches
• Weight: 15.0355 lb
