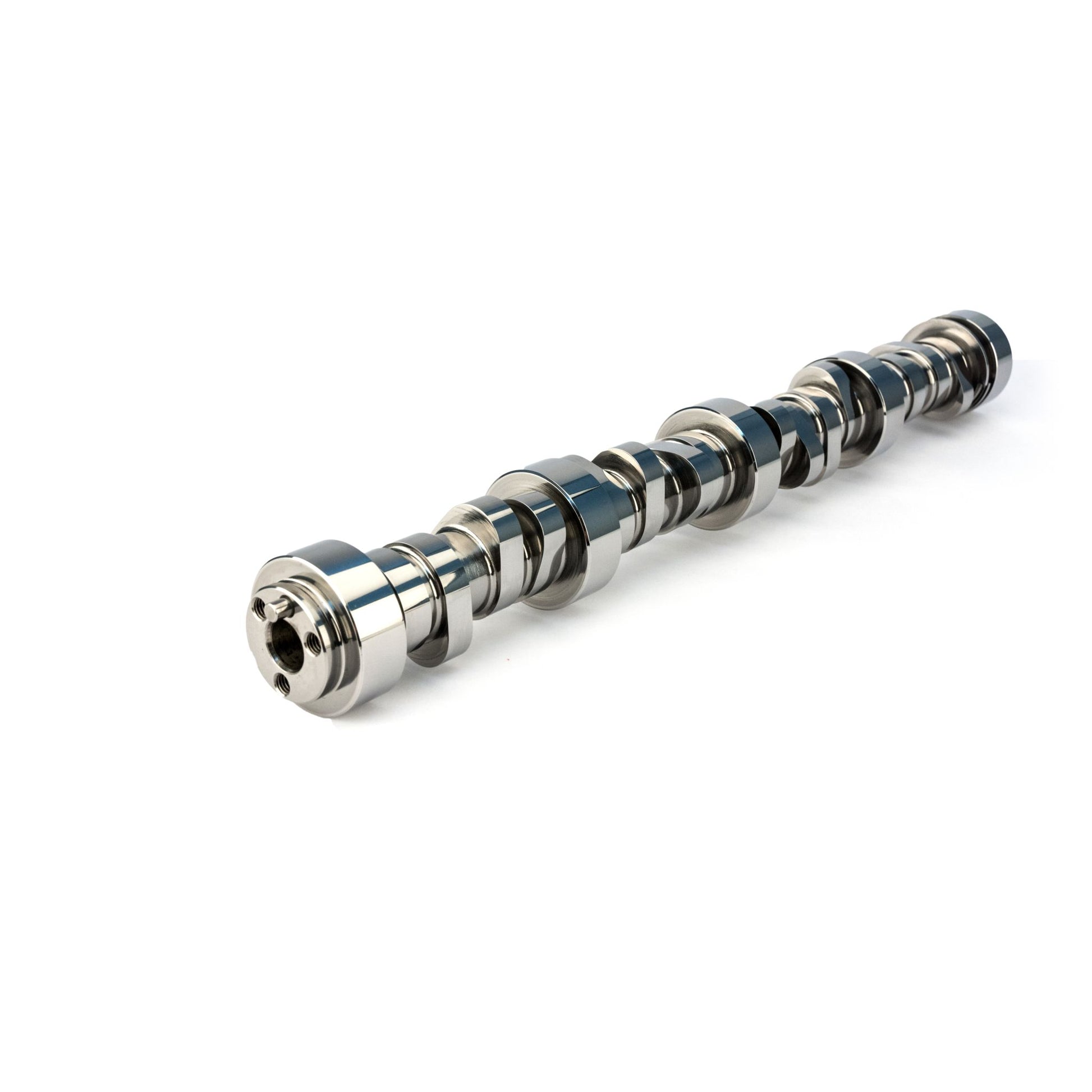

COMP Cams XFI XE-R 232/234 Hydraulic Roller Cam for GM LS GEN III/IV COMP-54-446-11

Attributes:

• GTIN: 00036584068662
• Brand Name: COMP Cams
• Camshaft Series: XFI XE-R
• Cam Type: Hydraulic Roller
• Grind Number: XER281HR
• Basic Operating RPM Range: 2,400-7,200
• Intake Duration at .050 Inch Lift: 232
• Exhaust Duration at .050 inch Lift: 234
• Advertised Intake Duration: 281
• Advertised Exhaust Duration: 283
• Lobe Separation: 112
• Intake Valve Lift: 0.595
• Exhaust Valve Lift: 0.598
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel
• Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
• Cam and Lifter Kit Upgrade: CL54-446-11
• K-Kit Upgrade: K54-446-11
• Lifter Type: Hydraulic Roller
• Amazon ASIN: B0014F1HRA
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• MSE Process Video Link: https://www.youtube.com/watch?v=hTyIQxrPCCI

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.3 x 2.9 x 2.6 inches
• Weight: 9.8 lb
