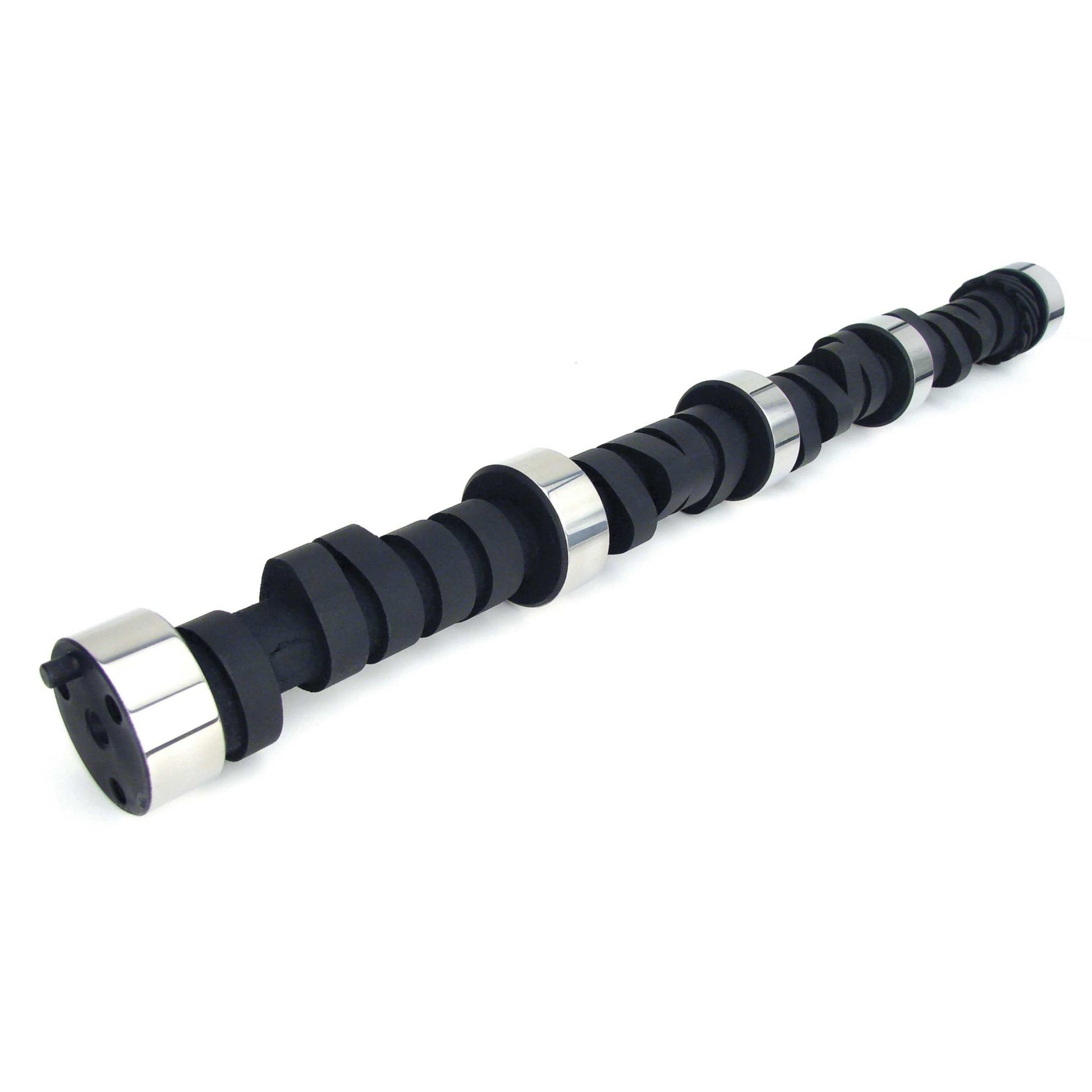

COMP Cams Xtreme 4x4 226/234 Hydraulic Flat Cam for Chevrolet Small Block COMP-12-243-3

Attributes:

• GTIN: 00036584038214
• Brand Name: COMP Cams
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Camshaft Series: Xtreme 4x4
• Usage: Street/Performance
• Cam Type: Hydraulic Flat Tappet
• Grind Number: X4270H
• Basic Operating RPM Range: 1,800-6,000
• Intake Duration at .050 Inch Lift: 226
• Exhaust Duration at .050 inch Lift: 234
• Advertised Intake Duration: 270
• Advertised Exhaust Duration: 278
• Lobe Separation: 111
• Intake Valve Lift: 0.48
• Exhaust Valve Lift: 0.498
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
• Cam and Lifter Kit Upgrade: CL12-243-3
• K-Kit Upgrade: K12-243-3
• Lifter Type: Hydraulic Flat Tappet
• SK-Kit Upgrade: SK12-243-3
• Amazon ASIN: B000CIUA9G
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.2 x 2.9 x 2.6 inches
• Weight: 8.8626 lb
