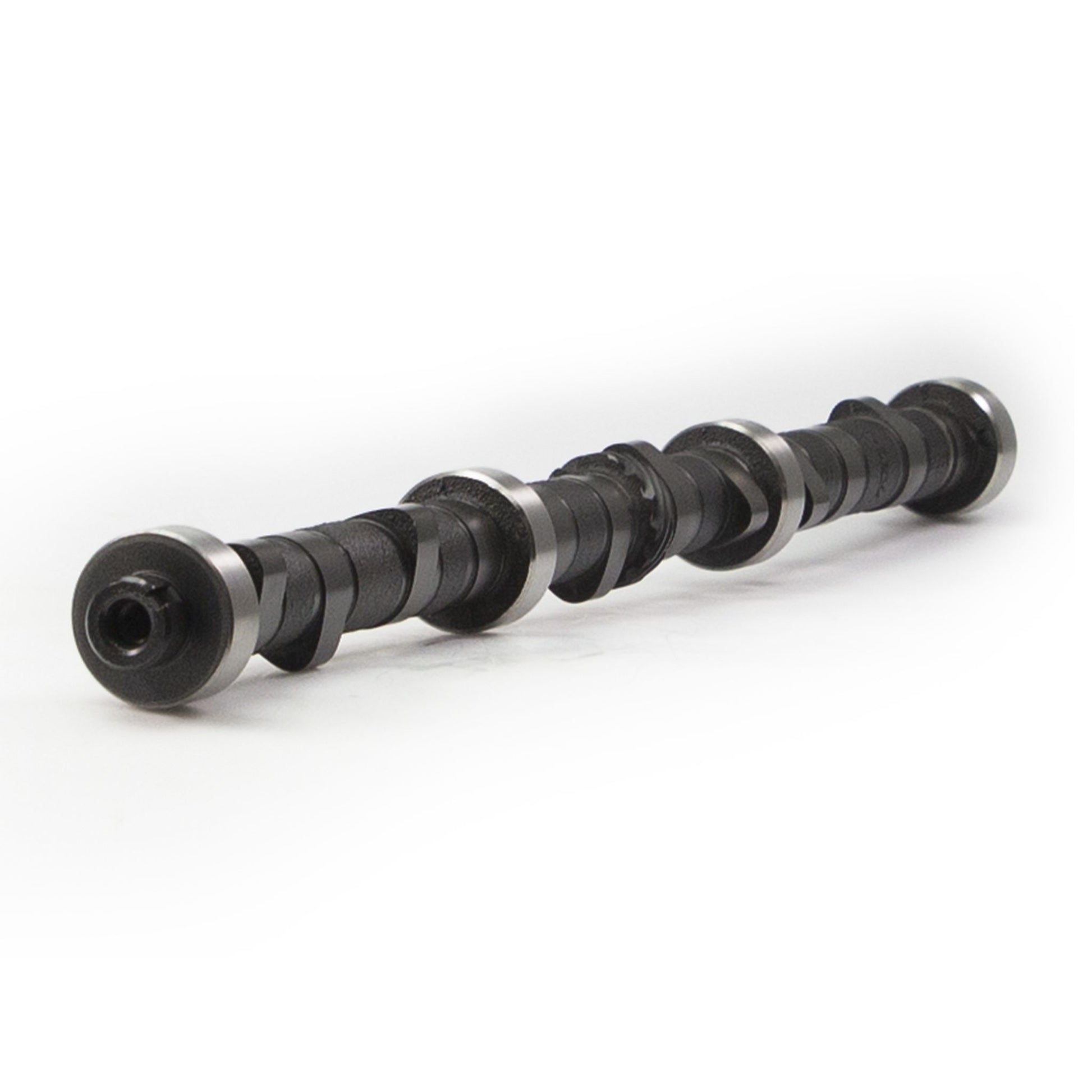

COMP Cams Xtreme 4x4 EFI 250H-13 Hydraulic Flat Camshaft for '99-'04 Jeep 4.0 COMP-163-201-5

The Jeep 4.0L is used for many different tasks, from daily driving to rock crawling and even hill climbs. COMP Cams has released grinds that tailor to some of the most common applications of this proven motor. These camshafts feature new lobe designs specific to the 4.0L that allow for more duration and valve lift within the constraints of the 4.0L design. This results in better torque and mid-range power for EFI applications.

Attributes:

• GTIN: 00036584408574
• Brand Name: COMP Cams
• Camshaft Series: Xtreme 4x4
• Usage: Street & Off Road
• Cam Type: Hydraulic Flat Tappet
• Basic Operating RPM Range: Idle-5,500
• Intake Duration at .050 Inch Lift: 205
• Exhaust Duration at .050 inch Lift: 213
• Advertised Intake Duration: 250
• Advertised Exhaust Duration: 258
• Lobe Separation: 113
• Intake Valve Lift: 0.450
• Exhaust Valve Lift: 0.450
• Lifters Included: No
• Valve Springs Included: No
• Assembly Lubricant Included: Yes
• Camshaft Material: Cast Iron
• Lifter Style: Hydraulic Flat Tappet
• Retainers Included: No
• Locks Included: No
• Pushrods Included: No
• Gaskets Included: No
• Engine Family: Jeep 4.0L 1999-2006
• Stage: 1
• Timing Set Included: No
• Valve Seals Included: No
• Valve Spring Seats Included: No
• Grind Number: 250H-13
• Estimated Horsepower Gain: N/A
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Recommended Valve Springs: 983J-KIT

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30.6 x 3 x 2.6 inches
• Weight: 12.4782 lb
