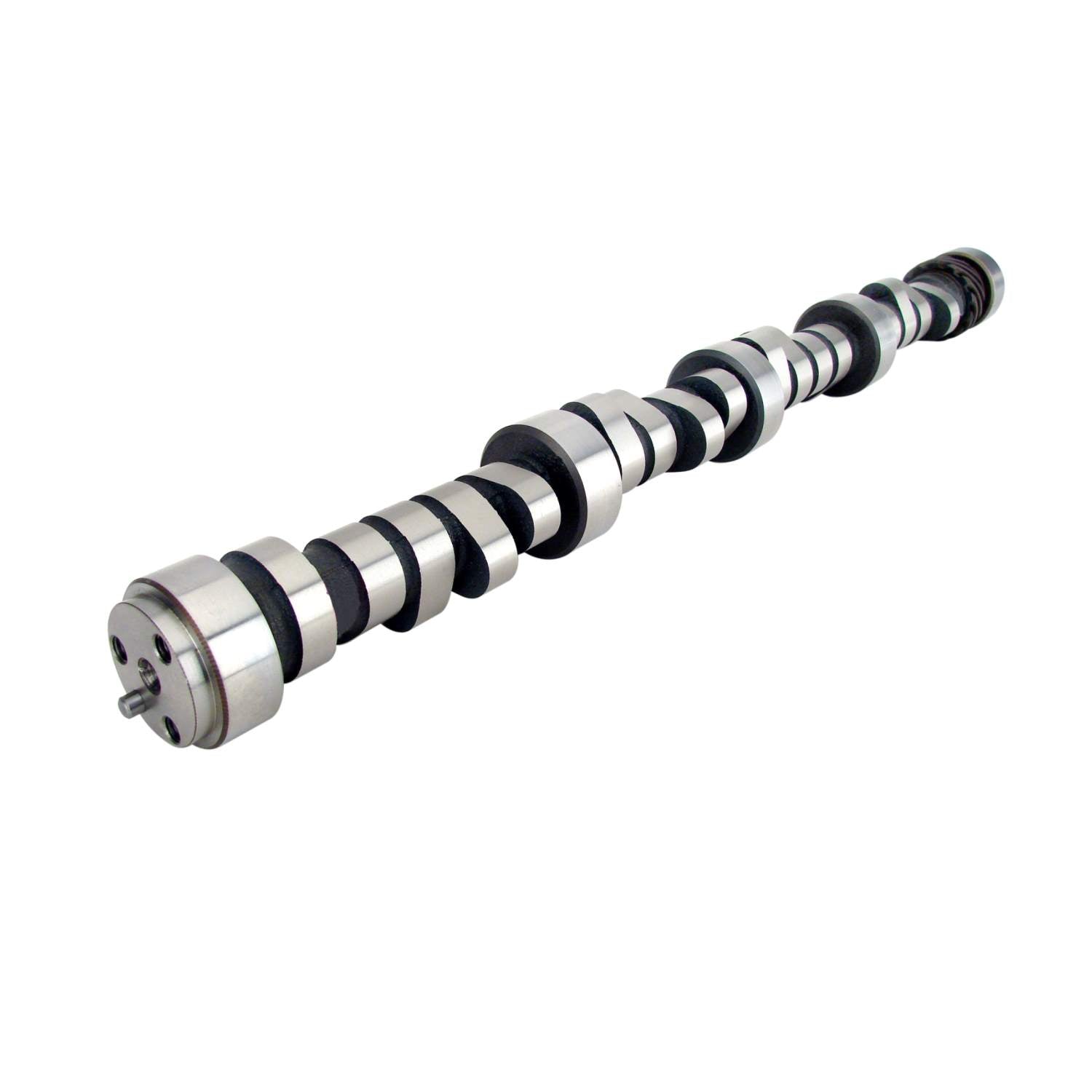

COMP Cams Xtreme Energy 218/224 Hydraulic Roller Cam for Chevrolet Big Block GEN VI COMP-01-414-8

Attributes:

• GTIN: 00036584063445
• Brand Name: COMP Cams
• Camshaft Series: Xtreme Energy
• Usage: Street/Performance
• Cam Type: Hydraulic Roller
• Grind Number: XR270HR
• Basic Operating RPM Range: 1,600-5,400
• Intake Duration at .050 Inch Lift: 218
• Exhaust Duration at .050 inch Lift: 224
• Advertised Intake Duration: 270
• Advertised Exhaust Duration: 276
• Lobe Separation: 110
• Intake Valve Lift: 0.51
• Exhaust Valve Lift: 0.51
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Austempered Ductile Iron
• Engine Family: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
• Cam and Lifter Kit Upgrade: CL01-414-8
• K-Kit Upgrade: K01-414-8
• Lifter Type: Hydraulic Roller
• SK-Kit Upgrade: SK01-414-8
• Amazon ASIN: N/A
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 11 lb
