COMP Cams Xtreme Energy 224/230 Solid Flat Cam K-Kit for Chevrolet Small Block COMP-K12-675-4

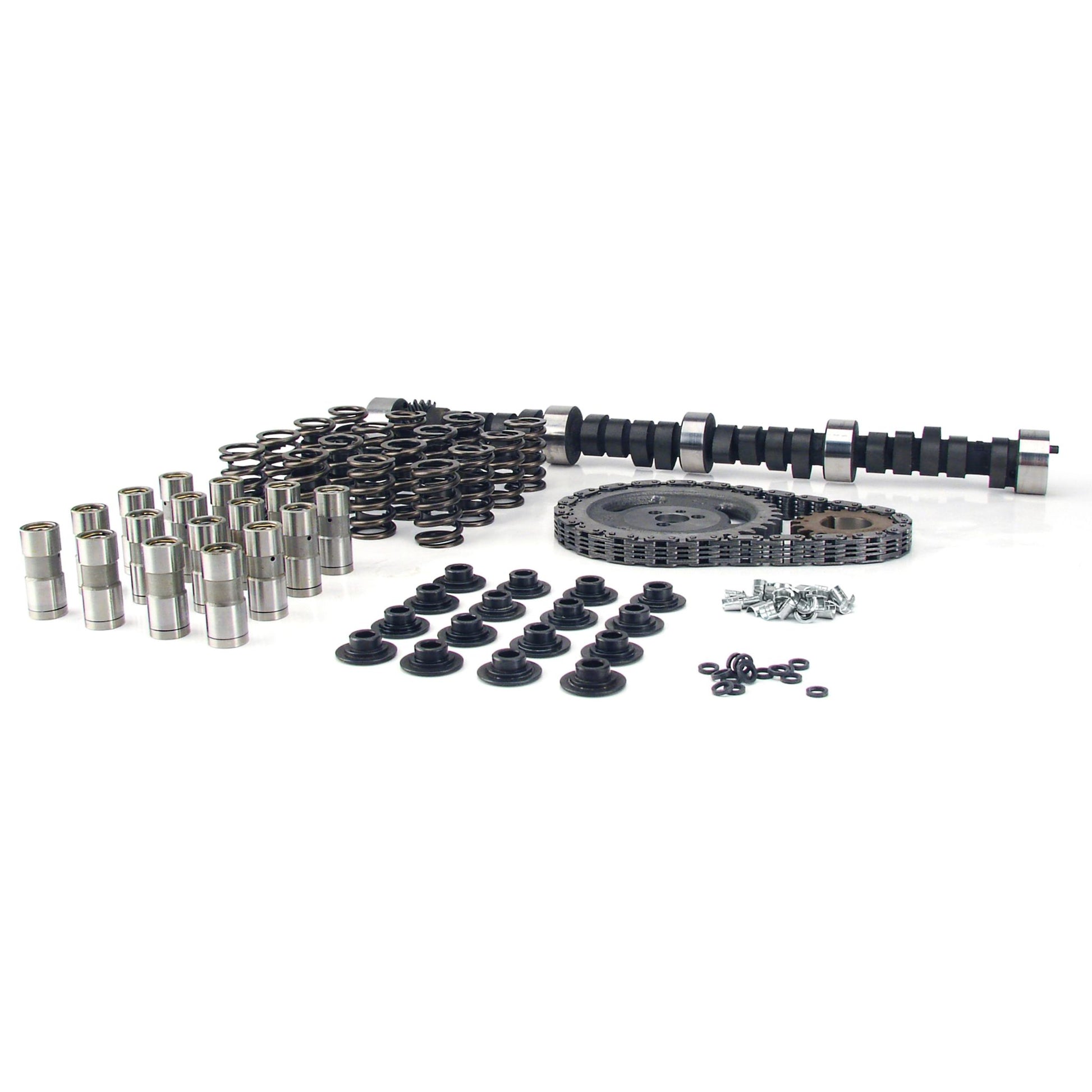

K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions.

Attributes:

• GTIN: 00036584079347
• Brand Name: COMP Cams
• Lifters Included: Yes
• Valve Springs Included: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Lifter Type: Solid Flat Tappet
• Gaskets Included: No
• Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
• Amazon ASIN: B001R9HADS
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Kit Type: K-Kit - Complete Kit
• Camshaft Series: Xtreme Energy
• Usage: Street/Performance
• Cam Type: Solid Flat Tappet
• Basic Operating RPM Range: 1,300-5,800
• Intake Duration at .050 Inch Lift: 224
• Exhaust Duration at .050 inch Lift: 230
• Advertised Intake Duration: 262
• Advertised Exhaust Duration: 268
• Lobe Separation: 110
• Intake Valve Lift: 0.477
• Exhaust Valve Lift: 0.488

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 25.5 x 10.25 x 5 inches
• Weight: 24.1 lb
