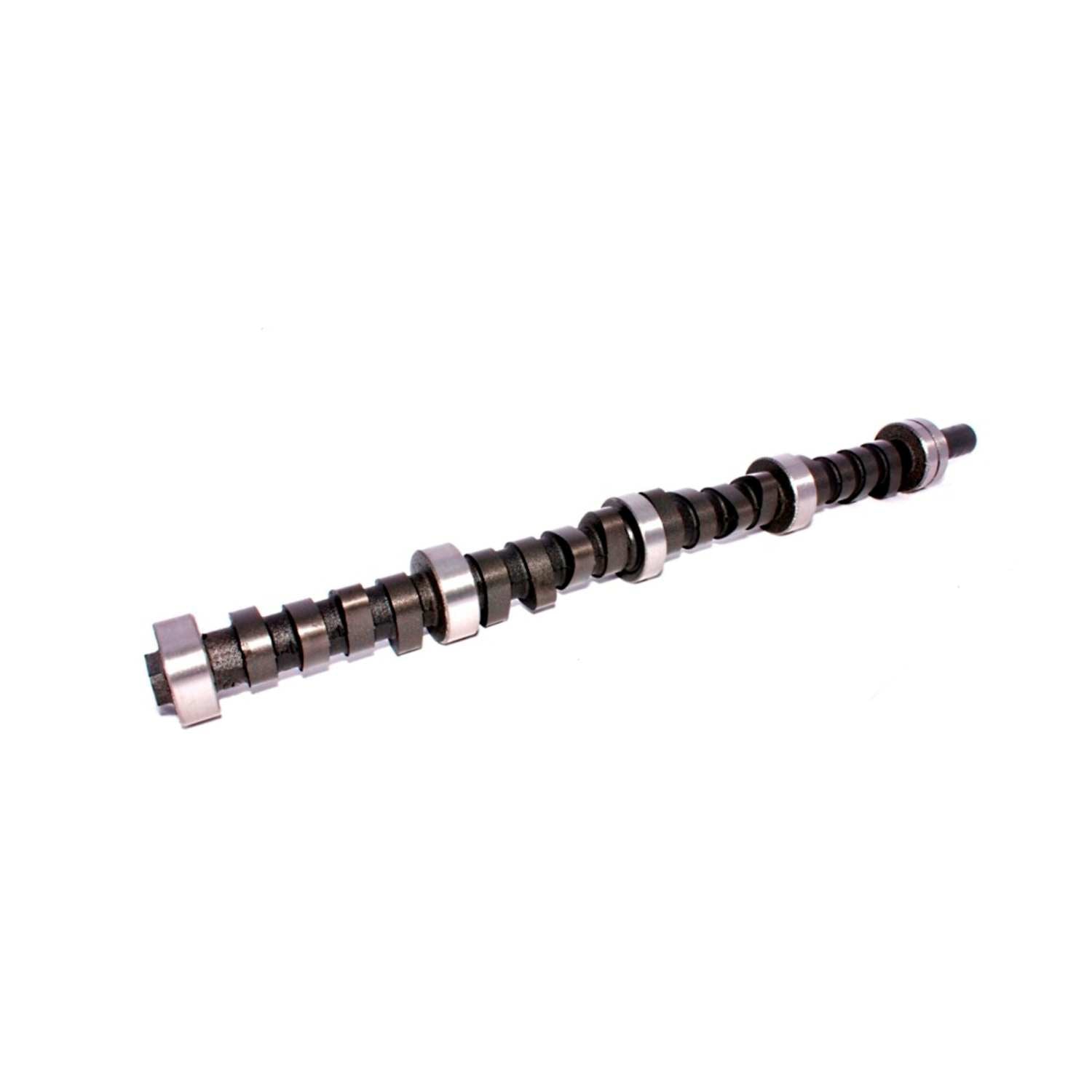

COMP Cams Xtreme Energy 230/236 Hydraulic Flat Cam for AMC 290-401 COMP-10-216-5

Attributes:

• GTIN: 00036584079972
• Brand Name: COMP Cams
• Camshaft Series: Magnum
• Cam Type: Hydraulic Flat Tappet
• Grind Number: XE274H
• Basic Operating RPM Range: 2,000-6,000
• Intake Duration at .050 Inch Lift: 230
• Exhaust Duration at .050 inch Lift: 236
• Advertised Intake Duration: 274
• Advertised Exhaust Duration: 286
• Lobe Separation: 110
• Intake Valve Lift: 0.52
• Exhaust Valve Lift: 0.523
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Cast Iron
• Engine Family: American Motors 290-401 c.i. 8 Cylinder (1966-1991)
• Cam and Lifter Kit Upgrade: CL10-216-5
• K-Kit Upgrade: K10-216-5
• Lifter Type: Hydraulic Flat Tappet
• SK-Kit Upgrade: SK10-216-5
• Amazon ASIN: N/A
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.38 x 2.91 x 2.59 inches
• Weight: 10.35 lb
