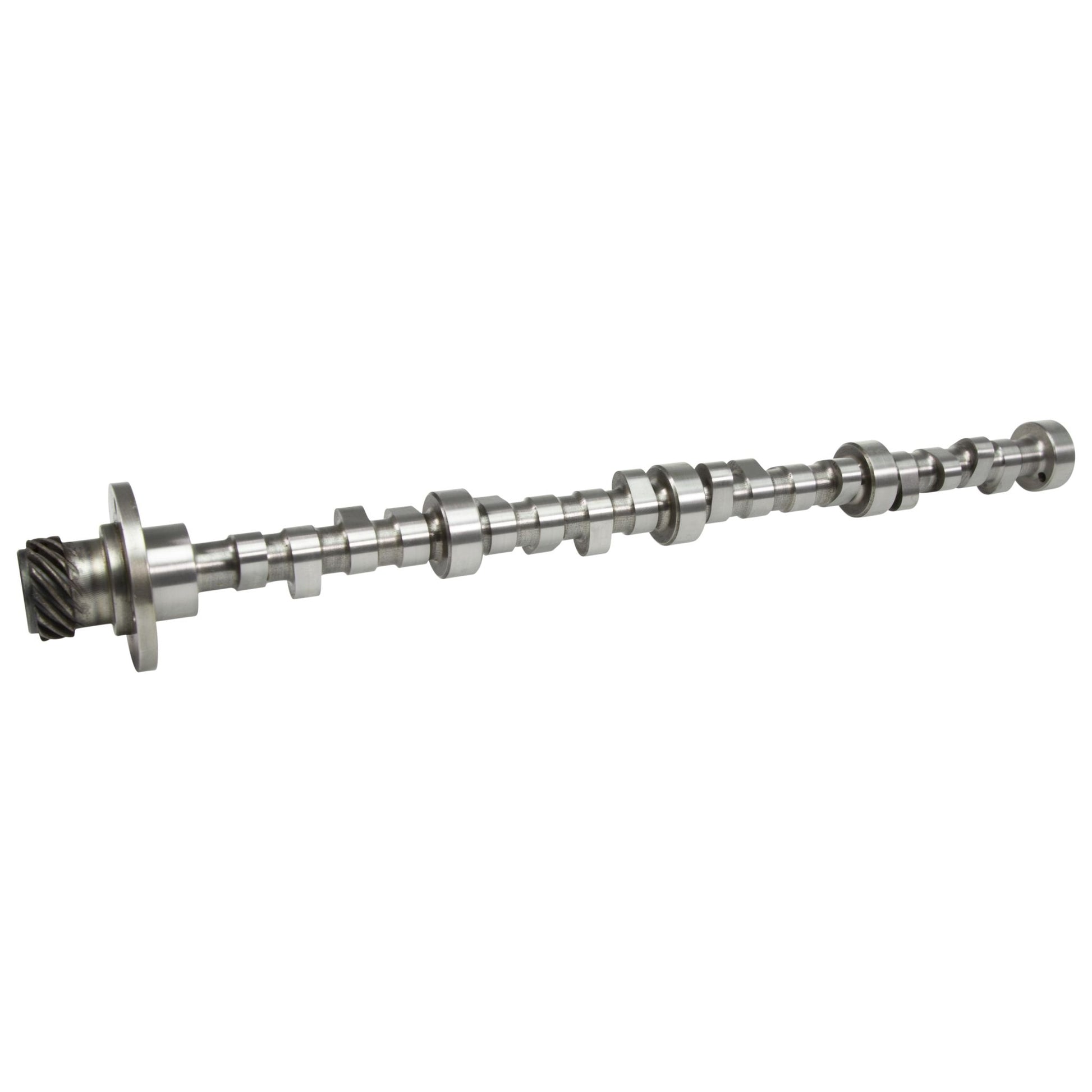

COMP Cams Xtreme Energy 230/236 Hydraulic Roller Cam for Cadillac 425 472 500 COMP-94-801-10

Attributes:

• GTIN: 00036584266648
• Brand Name: COMP Cams
• Camshaft Series: Xtreme Energy
• Usage: Street/Performance
• Cam Type: Hydraulic Roller
• Grind Number: XE285HR-10
• Basic Operating RPM Range: 1,800-5,400
• Intake Duration at .050 Inch Lift: 230
• Exhaust Duration at .050 inch Lift: 236
• Advertised Intake Duration: 285
• Advertised Exhaust Duration: 291
• Lobe Separation: 110
• Intake Valve Lift: 0.558
• Exhaust Valve Lift: 0.558
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Billet Steel
• Engine Family: Cadillac 425, 472, 500 c.i. (1963-1979)
• Lifter Type: Hydraulic Roller
• Amazon ASIN: N/A
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 4 x 4 inches
• Weight: 12 lb
