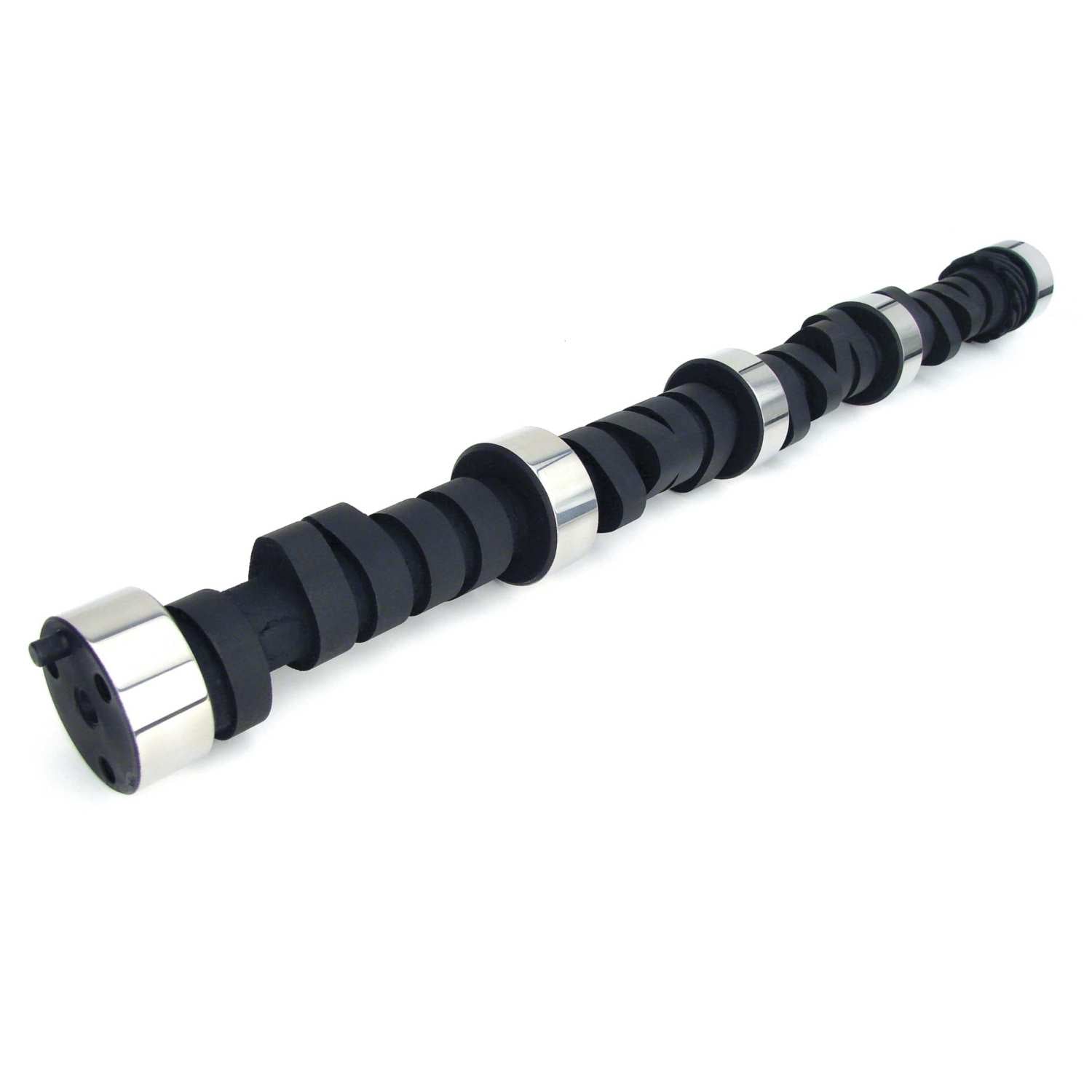

COMP Cams Xtreme Energy 230/236 Solid Flat Cam for Chevrolet Big Block 396-454 COMP-11-676-4

Attributes:

• GTIN: 00036584070320
• Brand Name: COMP Cams
• Camshaft Series: Xtreme Energy
• Usage: Street/Performance
• Cam Type: Solid Flat Tappet
• Grind Number: XS268S
• Basic Operating RPM Range: 1,600-6,000
• Intake Duration at .050 Inch Lift: 230
• Exhaust Duration at .050 inch Lift: 236
• Advertised Intake Duration: 268
• Advertised Exhaust Duration: 274
• Lobe Separation: 110
• Intake Valve Lift: 0.553
• Exhaust Valve Lift: 0.568
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Cam and Lifter Kit Upgrade: CL11-676-4
• K-Kit Upgrade: K11-676-4
• Lifter Type: Solid Flat Tappet
• SK-Kit Upgrade: SK11-676-4
• Amazon ASIN: B000P5933K
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.4 x 2.8 x 2.7 inches
• Weight: 10.3617 lb
