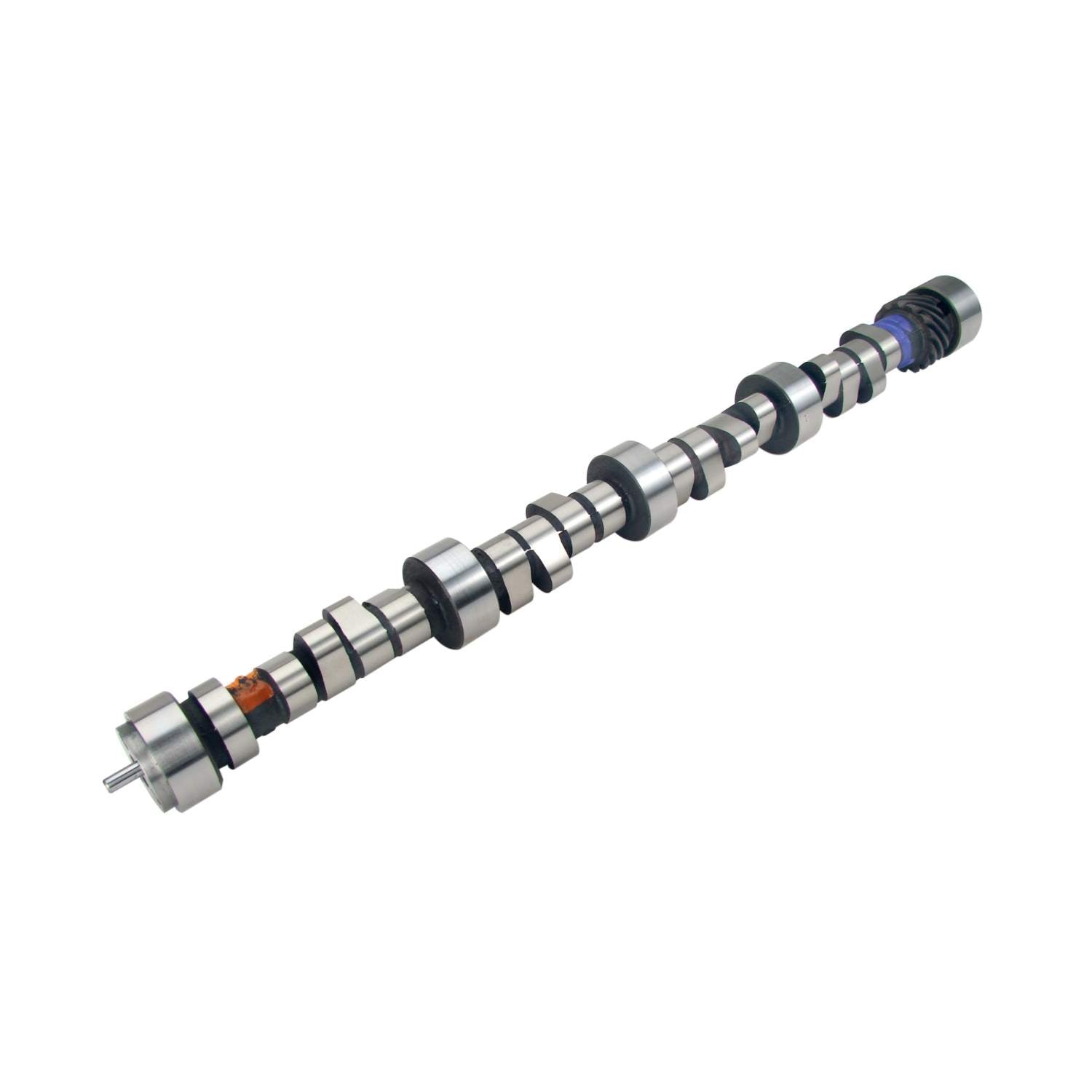

COMP Cams Xtreme Energy 230/244 Hydraulic Roller Cam for GM LT1/LT4 COMP-07-306-8

Attributes:

• GTIN: 00036584017790
• Brand Name: COMP Cams
• Camshaft Series: Xtreme Energy
• Cam Type: Hydraulic Roller
• Grind Number: 290HR-12
• Basic Operating RPM Range: 1,800-5,800
• Intake Duration at .050 Inch Lift: 230
• Exhaust Duration at .050 inch Lift: 244
• Advertised Intake Duration: 290
• Advertised Exhaust Duration: 307
• Lobe Separation: 112
• Intake Valve Lift: 0.51
• Exhaust Valve Lift: 0.54
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Austempered Ductile Iron
• Engine Family: GM LT1 and LT4 350 c.i. 8 Cylinder (1995-1997)
• Lifter Type: Hydraulic Roller
• Amazon ASIN: B000CIQ6IK
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 8.36 lb
