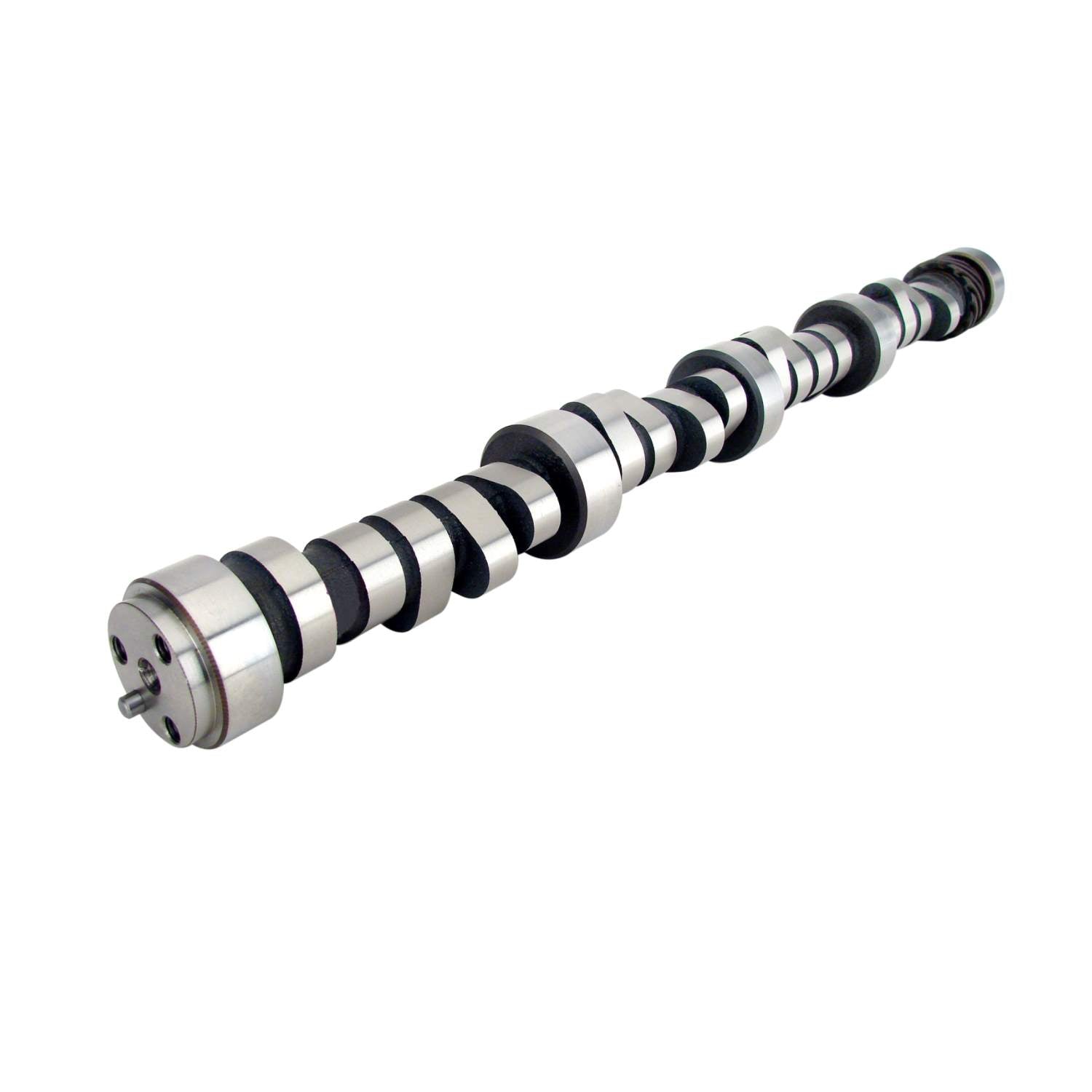

COMP Cams Xtreme Energy 248/254 Hydraulic Roller Cam for Chevrolet Big Block GEN VI COMP-01-427-8

Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.

Attributes:

• GTIN: 00036584079958
• Brand Name: COMP Cams
• Basic Operating RPM Range: 3,000-6600
• Intake Duration at .050 Inch Lift: 248
• Exhaust Duration at .050 inch Lift: 254
• Advertised Intake Duration: 300
• Advertised Exhaust Duration: 306
• Lobe Separation: 114
• Intake Valve Lift: 0.56
• Exhaust Valve Lift: 0.58
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Austempered Ductile Iron
• Engine Family: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
• Cam and Lifter Kit Upgrade: CL01-427-8
• K-Kit Upgrade: K01-427-8
• Lifter Type: Hydraulic Roller
• SK-Kit Upgrade: SK01-427-8
• Amazon ASIN: N/A
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Camshaft Series: Xtreme Energy
• Usage: Street/Performance
• Cam Type: Hydraulic Roller
• Grind Number: XR300HR-14

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.17 x 2.83 x 2.67 inches
• Weight: 10.5822 lb
