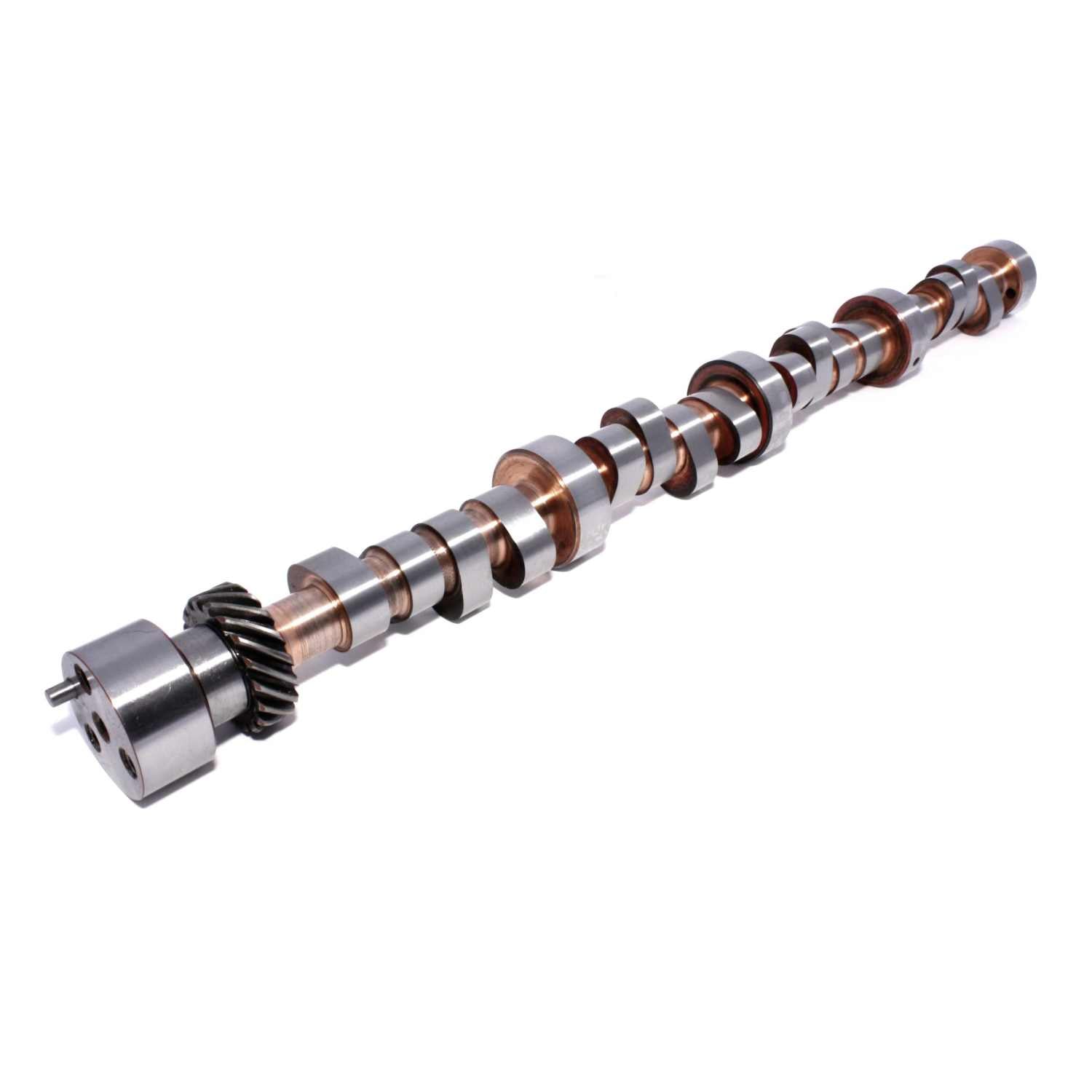

COMP Cams Xtreme Energy 248/254 Solid Roller Cam for Chrysler 383-440 COMP-23-702-9

Attributes:

• GTIN: 00036584081869
• Brand Name: COMP Cams
• Camshaft Series: Xtreme Energy
• Usage: Street/Performance
• Cam Type: Solid Roller
• Grind Number: XR286R
• Basic Operating RPM Range: 3,000-6500
• Intake Duration at .050 Inch Lift: 248
• Exhaust Duration at .050 inch Lift: 254
• Advertised Intake Duration: 286
• Advertised Exhaust Duration: 292
• Lobe Separation: 110
• Intake Valve Lift: 0.576
• Exhaust Valve Lift: 0.582
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel
• Engine Family: Chrysler 383-440 c.i. 8 Cylinder (1959-1980)
• Cam and Lifter Kit Upgrade: CL23-702-9
• K-Kit Upgrade: K23-702-9
• Lifter Type: Solid Roller
• SK-Kit Upgrade: SK23-702-9
• Amazon ASIN: B000P5G9BY
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.3 x 2.9 x 2.4 inches
• Weight: 9.1712 lb
