COMP Cams Xtreme Energy Computer Controlled 224/230 Cam K-Kit for Ford 5.0L COMP-K35-328-8

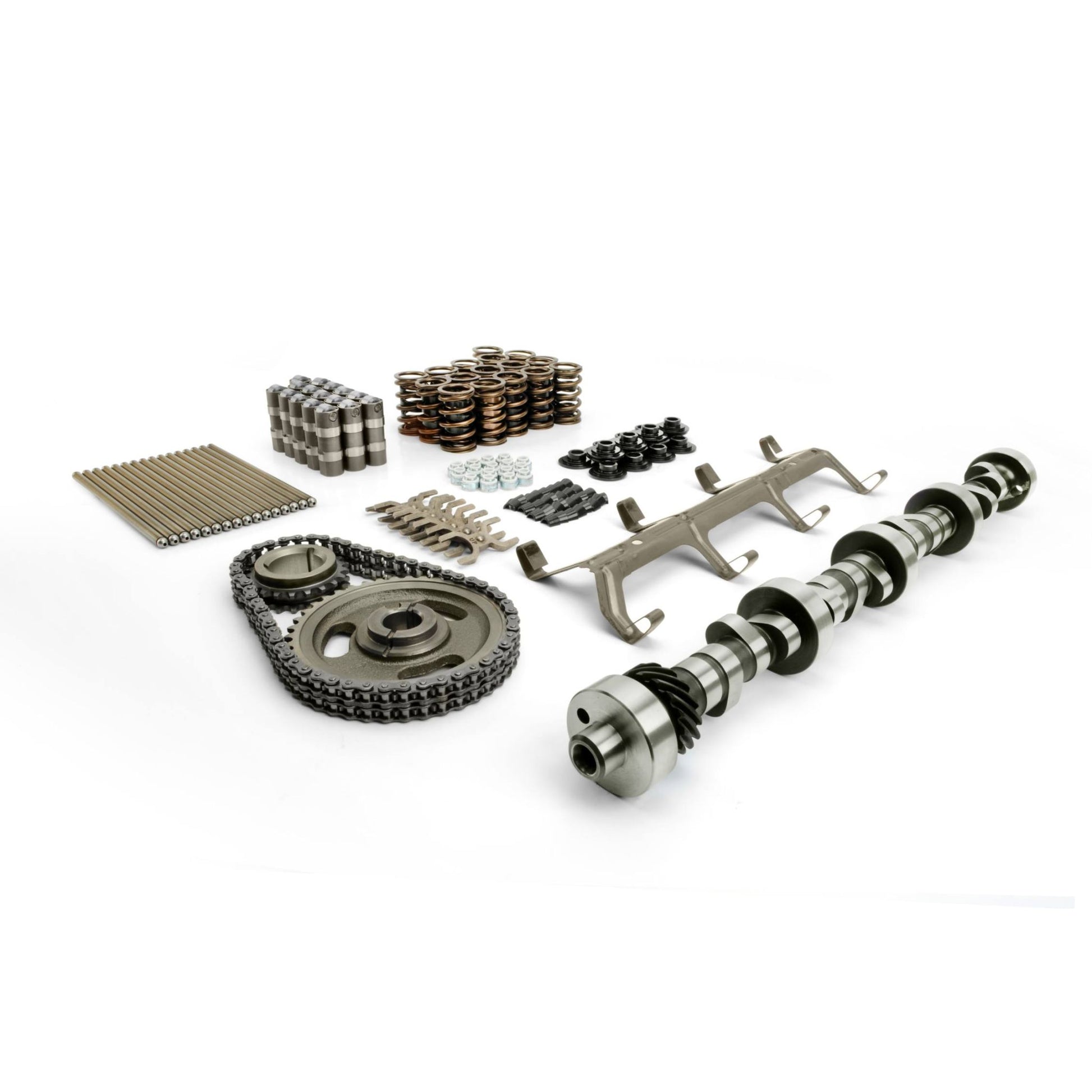

K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions.

Attributes:

• GTIN: 00036584041818
• Brand Name: COMP Cams
• Engine Family: Ford 5.0L (1985-2002)
• Amazon ASIN: B001R9DSYI
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Kit Type: K-Kit - Complete Kit
• Camshaft Series: Xtreme Energy Computer Controlled
• Usage: Street/Performance
• Cam Type: Hydraulic Roller
• Basic Operating RPM Range: 2,200-6,200
• Intake Duration at .050 Inch Lift: 224
• Exhaust Duration at .050 inch Lift: 230
• Advertised Intake Duration: 276
• Advertised Exhaust Duration: 282
• Lobe Separation: 112
• Intake Valve Lift: 0.544
• Exhaust Valve Lift: 0.544
• Lifters Included: Yes
• Valve Springs Included: Yes
• Assembly Lubricant Included: No
• Camshaft Material: Austempered Ductile Iron
• Lifter Type: Hydraulic Roller
• Gaskets Included: No

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 25.3 x 10.2 x 5.1 inches
• Weight: 27.8223 lb
